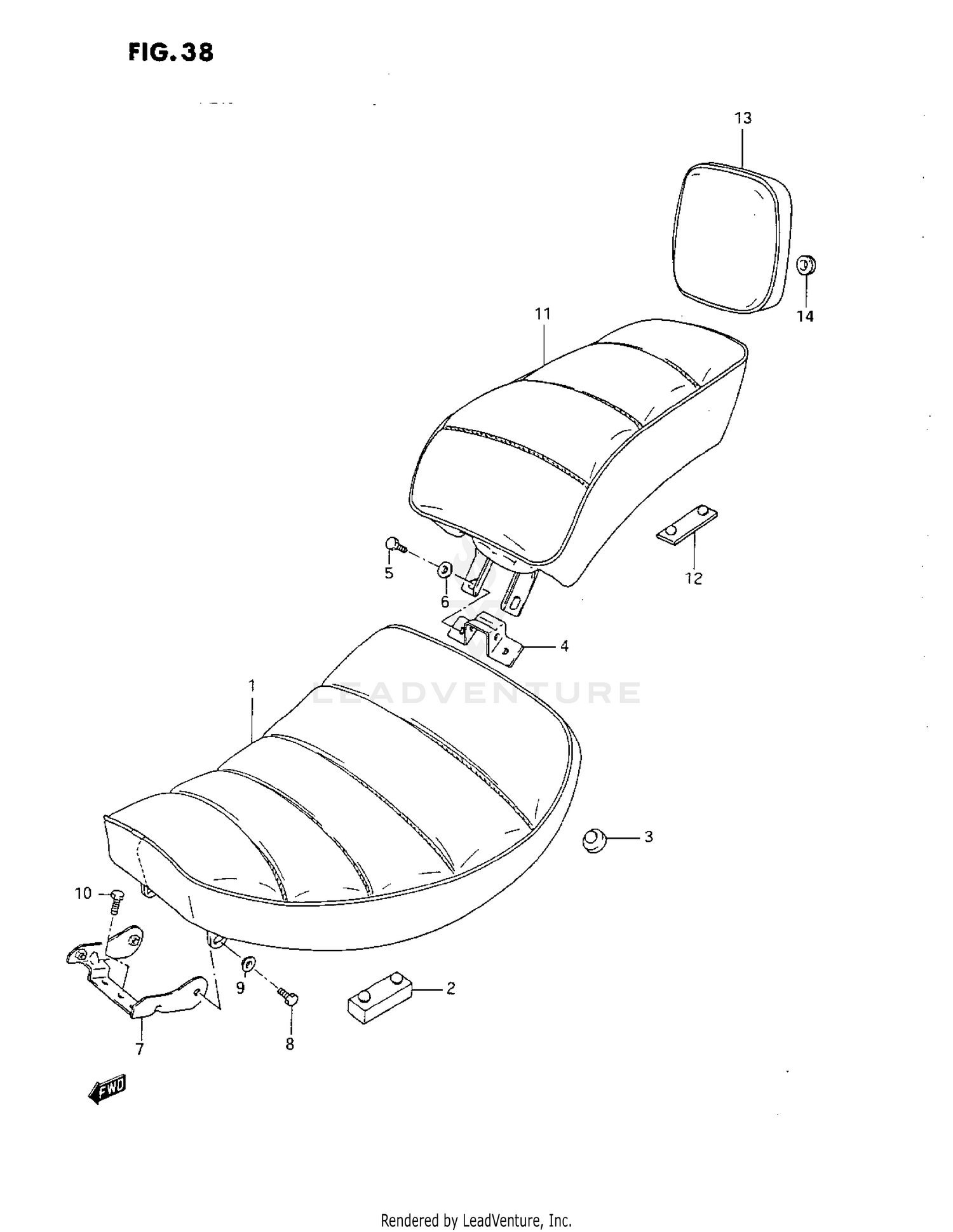

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
45100-38A41-5KR
Superseded by 45100-38A43-5KR
|
$383.44 | ||
|
Available to order. Add to View Price |
|||
|
#1
NO DESCRIPTION AVAILABLE
45100-38A42-5KR
Superseded by 45100-38A43-5KR
|
$383.44 | ||
|
Unavailable |
|||
|
#2
CUSHION
45149-43500
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION, SEAT MOUNT
09321-10012
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SEAT HOOK REAR
45119-38A00
|
$9.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01177-06166
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09169-06037
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT FRONT
45210-38A02-03F
Superseded by 45210-38A03
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT FRONT
45210-38A02-19A
Superseded by 45210-38A03
|
$35.79 | ||
|
Unavailable |
|||
|
#7
BRACKET, SEAT FRONT
45210-38A02-0CG
Superseded by 45210-38A03
|
$35.79 | ||
|
Unavailable |
|||
|
#7
BRACKET, SEAT FRONT
45210-38A03
|
$35.79 | ||
|
Unavailable |
|||
|
#8
BOLT
01177-06166
Superseded by 01580-0616A
|
$3.05 | ||
|
Unavailable |
|||
|
#9
WASHER
09169-06037
|
$2.67 | ||
|
Unavailable |
|||
|
#10
BOLT
01177-06166
Superseded by 01580-0616A
|
$3.05 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
45300-38A40-5KR
Superseded by 45300-38AV0-5KR
|
$220.15 | ||
|
Unavailable |
|||
|
#11
NO DESCRIPTION AVAILABLE
45300-38A41-5KR
Superseded by 45300-38AV0-5KR
|
$220.15 | ||
|
Unavailable |
|||
|
#12
CUSHION
45149-14500
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD ASSY, SEAT (BLACK)
45350-38A40-5KR
Superseded by 45350-38A41-5KR
|
$221.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD ASSY, SEAT (BLACK)
45350-38A41-5KR
|
$221.97 | ||
|
Unavailable |
|||
|
#14
CUSHION
09320-09026
Superseded by 09320-09062
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
