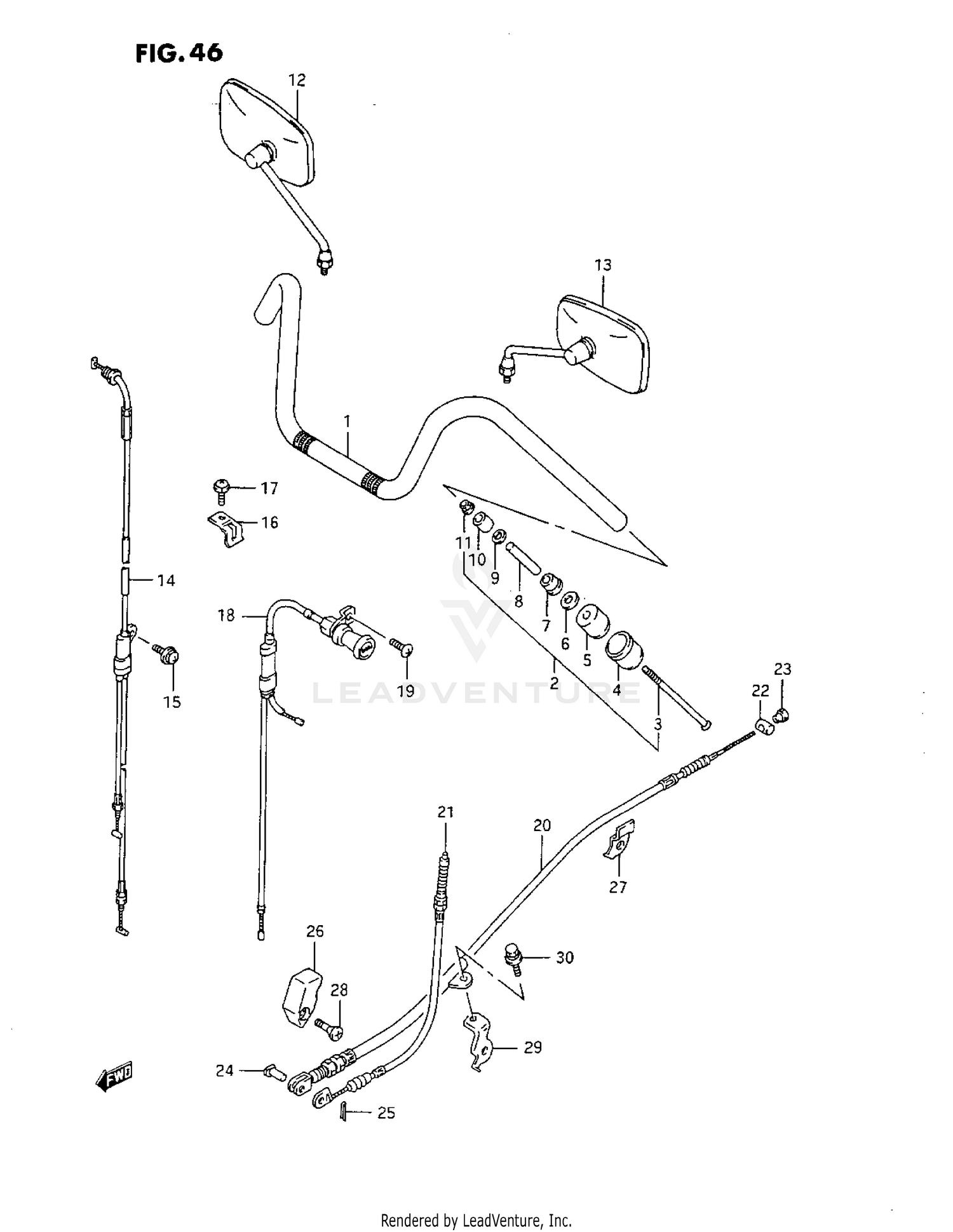

Handlebar-control Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-38A60
Superseded by 56111-38A61
|
$174.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALANCER SET
56200-26820
Superseded by 56200-38811
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
09127-06019
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP
56274-26D00
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALANCER
56271-26D10
|
$16.39 | ||
|
Unavailable |
|||
|
#6
SPACER
56275-26D00
Superseded by 56275-26D01
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXPANDER, OUTER
56272-26D00
Superseded by 56272-26D01
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
56276-17D00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#9
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BALANCER SET
56271-26D00
Superseded by 56200-38811
|
$75.35 | ||
|
Unavailable |
|||
|
#11
NUT
09159-06024
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
MIRROR ASSY, REAR VIEW RH
56500-38A40
|
$110.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
MIRROR ASSY, REAR VIEW LH
56600-38A40
|
$110.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE ASSY,THRO
58300-38A10
Superseded by 58300-38A11
|
$126.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, THROTTLE CABLE
02112-75128
Superseded by 02112-75127
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02112-75123
Superseded by 02112-7512A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, THROTTLE CABLE
58621-38A00
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-35106
Superseded by 02112-3510B
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-35103
Superseded by 02112-3510B
|
$2.82 | ||
|
Unavailable |
|||
|
#18
CABLE ASSY, STARTER
58400-38A12
Superseded by 58400-38A14
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, CL RLSE CAM SHAFT
02142-06104
Superseded by 02142-0610A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, CL RLSE CAM SHAFT
02142-06103
Superseded by 02142-0610A
|
$1.73 | ||
|
Unavailable |
|||
|
#20
CABLE, REAR BRAKE
58510-38A00
Superseded by 58510-38A01
|
$161.17 | ||
|
Available to order. Add to View Price |
|||
|
#21
CABLE, STOP LAMP SWITCH
58830-38A00
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
.PIN (13X18)
09209-13005
Superseded by 09209-13018
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
.NUT
09150-06009
Superseded by 09150-06010
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN, FRONT
09200-05001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, REAR BRAKE CABLE
58631-38A00
|
$5.85 | ||
|
Unavailable |
|||
|
#27
CLAMP, REAR BRAKE CABLE
58721-38A00
|
$5.03 | ||
|
Unavailable |
|||
|
#28
SCREW
02122-06205
Superseded by 02122-0620A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02122-06203
Superseded by 02122-0620A
|
$1.82 | ||
|
Unavailable |
|||
|
#29
BRACKET, REAR BRAKE CABLE
43275-38A00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01177-06168
Superseded by 01580-06167
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
