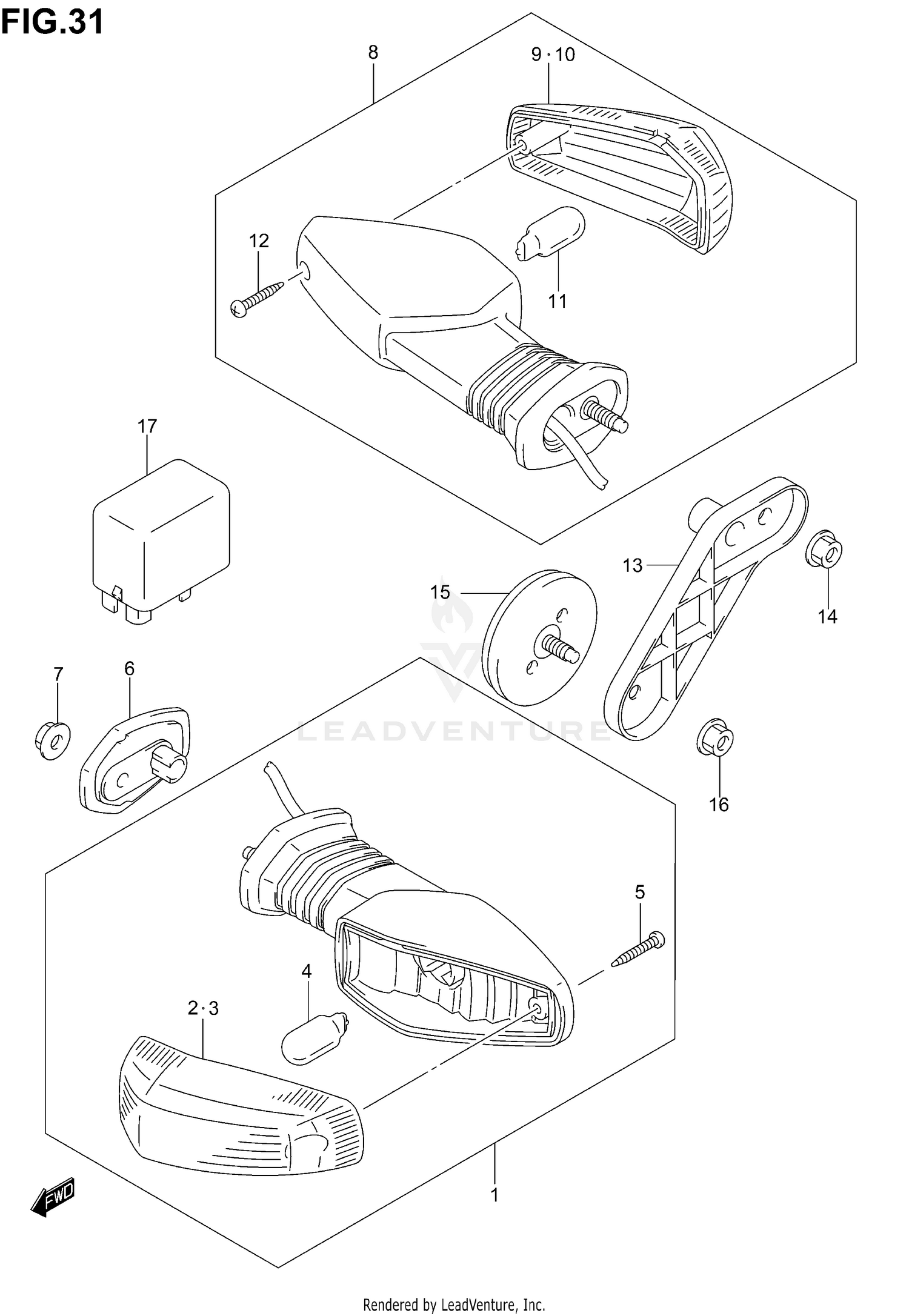

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURN RH
35601-29G10
|
$108.45 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY, FRONT TURN LH
35602-29G10
|
$131.56 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS, RH
35612-18G01
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, LH
35632-18G01
|
$14.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,18W)
35222-18G00
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (3X20)
35725-40511
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE,FRONT TURNSIGNAL
35629-18G00
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, REAR TURN RH
35603-29G40
|
$98.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, REAR TURN LH
35604-29G40
|
$94.43 | ||
|
Available to order. Add to View Price |
|||
|
#9
LENS, RH
35632-18G01
|
$14.32 | ||
|
Unavailable |
|||
|
#10
LENS, LH
35612-18G01
|
$14.19 | ||
|
Unavailable |
|||
|
#11
BULB (12V,18W)
35222-18G00
|
$8.87 | ||
|
Unavailable |
|||
|
#12
SCREW (3X20)
35725-40511
|
$2.18 | ||
|
Unavailable |
|||
|
#13
PLATE, REAR TURN RH
35669-18G00
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, REAR TURN LH
35679-18G00
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
|
#15
REFLECTOR ASSY,RR SIDE
35970-14A20
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
|
#17
RELAY ASSY,TURN
38610-07F00
Superseded by 38610-07F01
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
