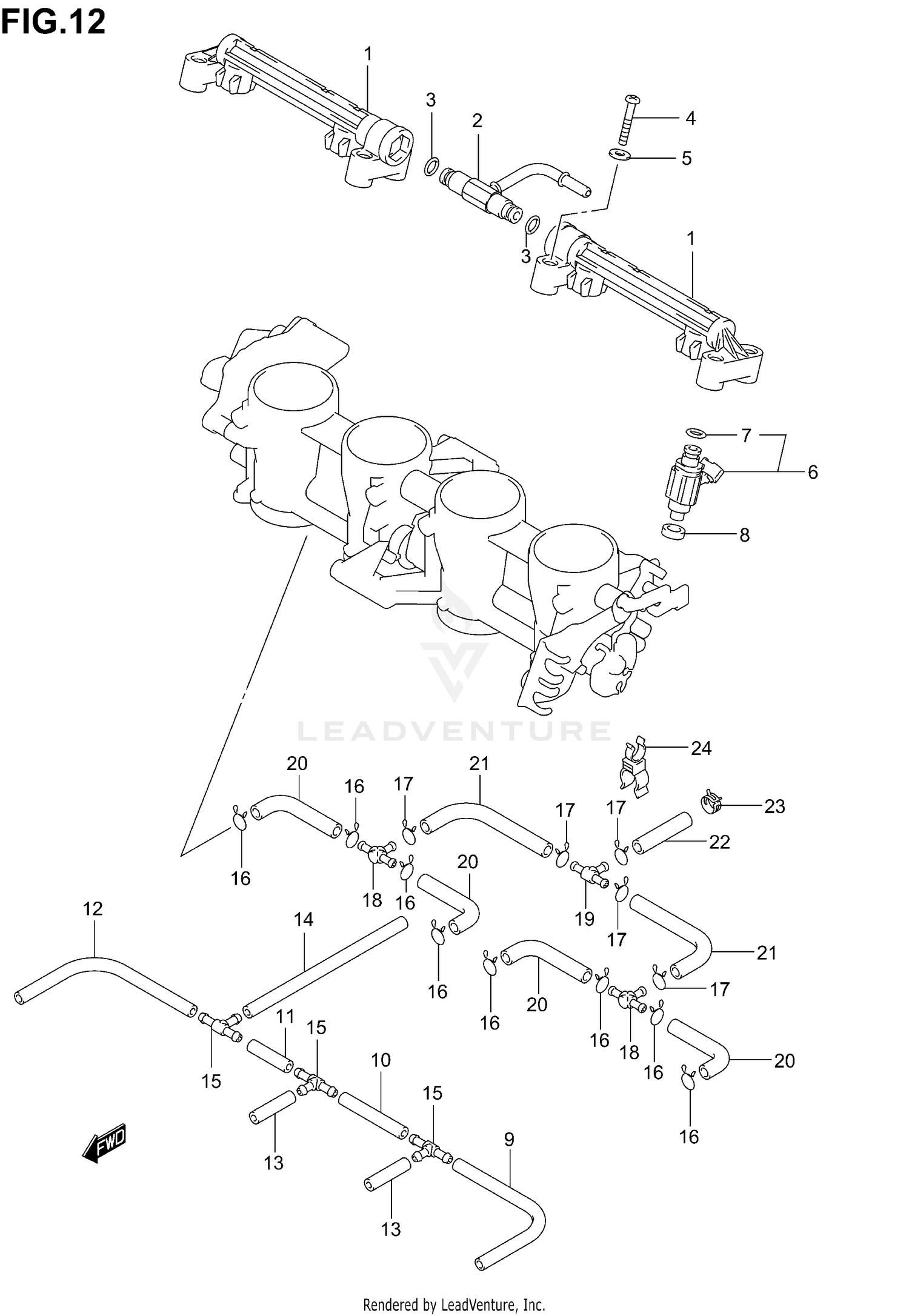

Throttle Body Hose/joint Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DELIVERY PIPE
13471-29G00
|
$36.16 | ||
|
Unavailable |
|||
|
#2
NIPPLE ASSY
13473-29G00
|
$108.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING
15721-29G00
Superseded by 15721-08J00
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
13601-29G00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PACKING
13602-29G00
Superseded by 13602-29G01
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
INJECTOR ASSY
15710-17G00
|
$357.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
15717-16G00
|
$12.86 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SEAL
15722-29G00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#11
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#12
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#13
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#14
HOSE(3.2X7.4X22
13681-39F00-225
Superseded by 13681-39F01-225
|
$14.24 | ||
|
Unavailable |
|||
|
#15
.3WAY, VACUUM HOSE
13685-02FA0
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#16
.CLIP
13671-29G00
|
$3.24 | ||
|
Unavailable |
|||
|
#17
CLIP
13671-06A10
|
$2.68 | ||
|
Unavailable |
|||
|
#18
.NIPPLE
13685-29G00
|
$9.92 | ||
|
Unavailable |
|||
|
#19
NIPPLE
13685-48B00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
13683-29G10
|
$13.60 | ||
|
Unavailable |
|||
|
#21
HOSE
13683-29G30
|
$19.75 | ||
|
Unavailable |
|||
|
#22
HOSE
13683-29G20
|
$5.82 | ||
|
Unavailable |
|||
|
#23
CLIP (ID:11)
09401-11413
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
09408-00174
|
$2.99 | ||
|
Unavailable |
|||
