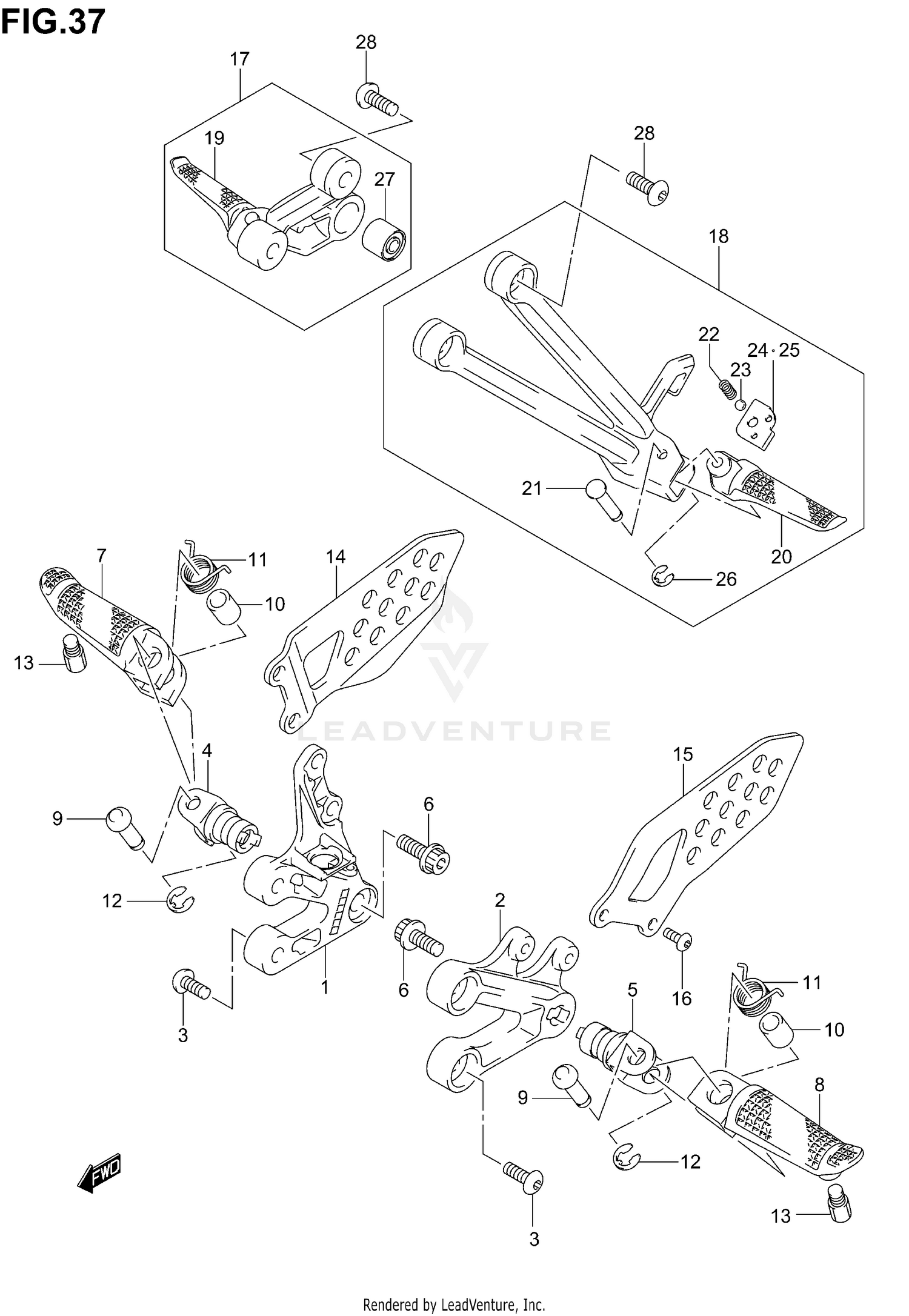

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-29G00
|
$126.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-29G00
|
$131.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
09106-08167
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, FOOTREST RH
43530-35F10
|
$59.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, FOOTREST LH
43540-35F10
|
$59.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HOLDER
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, FRONT FOOTREST RH
43516-35F00
|
$69.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, FRONT FOOTREST LH
43526-35F00
|
$69.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN
09208-08014
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
09180-08149
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09448-18022
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT,BANK SENSOR
43576-07D01
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FOOTREST RH
43571-29G00
|
$51.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST LH
43576-29G00
|
$51.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,FOOTREST GUARD LH
43577-35F00
Superseded by 43577-35F10
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST ASSY, PILLION RH
43600-29G00
|
$240.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION LH
43700-29G00
|
$207.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAR, PILLION RH
43611-35F01
|
$72.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, PILLION LH
43621-35F01
|
$69.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
09208-06007
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, RH
43816-33E21
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, LH
43826-33E22
|
$11.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
E RING
08332-11043
Superseded by 08332-1104A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
BUSH, MUFFLER SUPPORT
09319-08046
|
$13.77 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BRACKET
09106-08150
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
