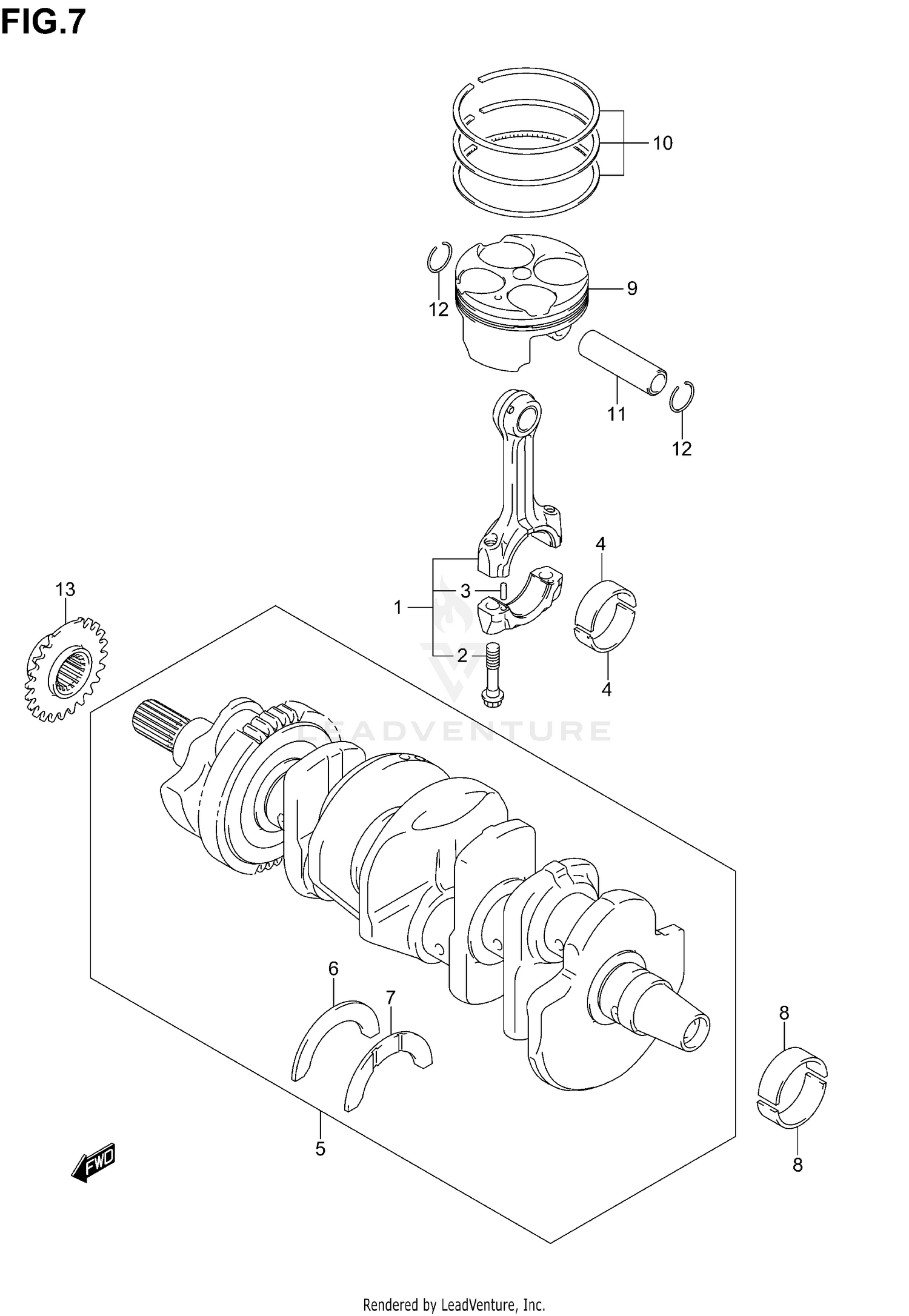

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-29G00
|
$205.74 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT, CONNECTING ROD
12163-35F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
12165-27A50
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (GREEN)
12164-29G00-0A0
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BLACK)
12164-29G00-0B0
|
$18.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BROWN)
12164-29G00-0C0
|
$18.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (YELLOW)
12164-29G00-0D0
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT SET
12000-29810
|
$1,675.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#7
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-29G00-0A0
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-29G00-0B0
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-29G00-0C0
|
$25.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-29G00-0D0
|
$15.54 | ||
|
Unavailable |
|||
|
#9
PISTON
12111-29G00-0F0
|
$149.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON
12140-29G00
|
$77.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, PISTON
12151-39F00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, SNAP
09381-14001
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPROCKET, CAM CHAIN
12731-29G00
|
$146.42 | ||
|
Available to order. Add to View Price |
|||
