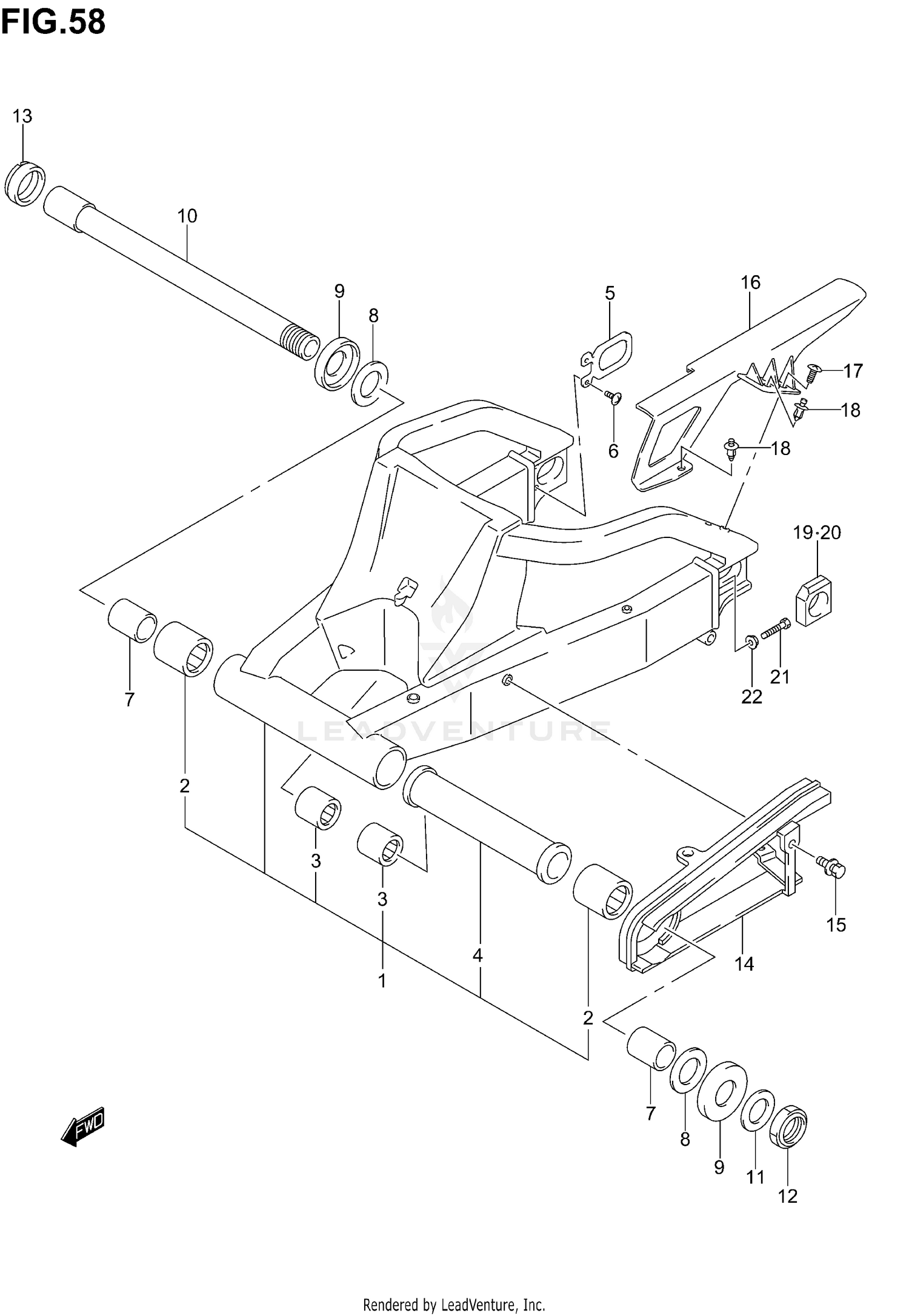

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-29G00
|
$1,952.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING, PIVOT (30X47X2)
09263-30040
|
$49.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING
09263-17039
Superseded by 09263-17058
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPACER,RR SWGARM PIVOT CTR
61281-33E20
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,REAR SWINGINGARM BRKT
61124-33E00
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
09125-06073
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
61251-17E10
Superseded by 61251-17E20
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, THRUST
08211-25481
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,DUST
61262-17E10
Superseded by 61262-17E11
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,RR SWGARM PVT
61211-16G00
|
$204.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-25070
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
09159-25001
Superseded by 09159-25003
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,RR SWGARM PIVOT PIVOT BOL
61214-40C31
|
$64.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUFFER,CHAIN TO
61273-29G00
Superseded by 61273-29G01
|
$46.18 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
09111-06072
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#16
CASE, CHAIN
61311-29G00
|
$83.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW (6X16)
09139-06083
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
ADJUSTER, CHAIN RH
61445-40F10
|
$43.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
ADJUSTER,CHAIN LH
61446-40F10
Superseded by 61446-40F00
|
$60.92 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT (8X50)
09100-08287
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
