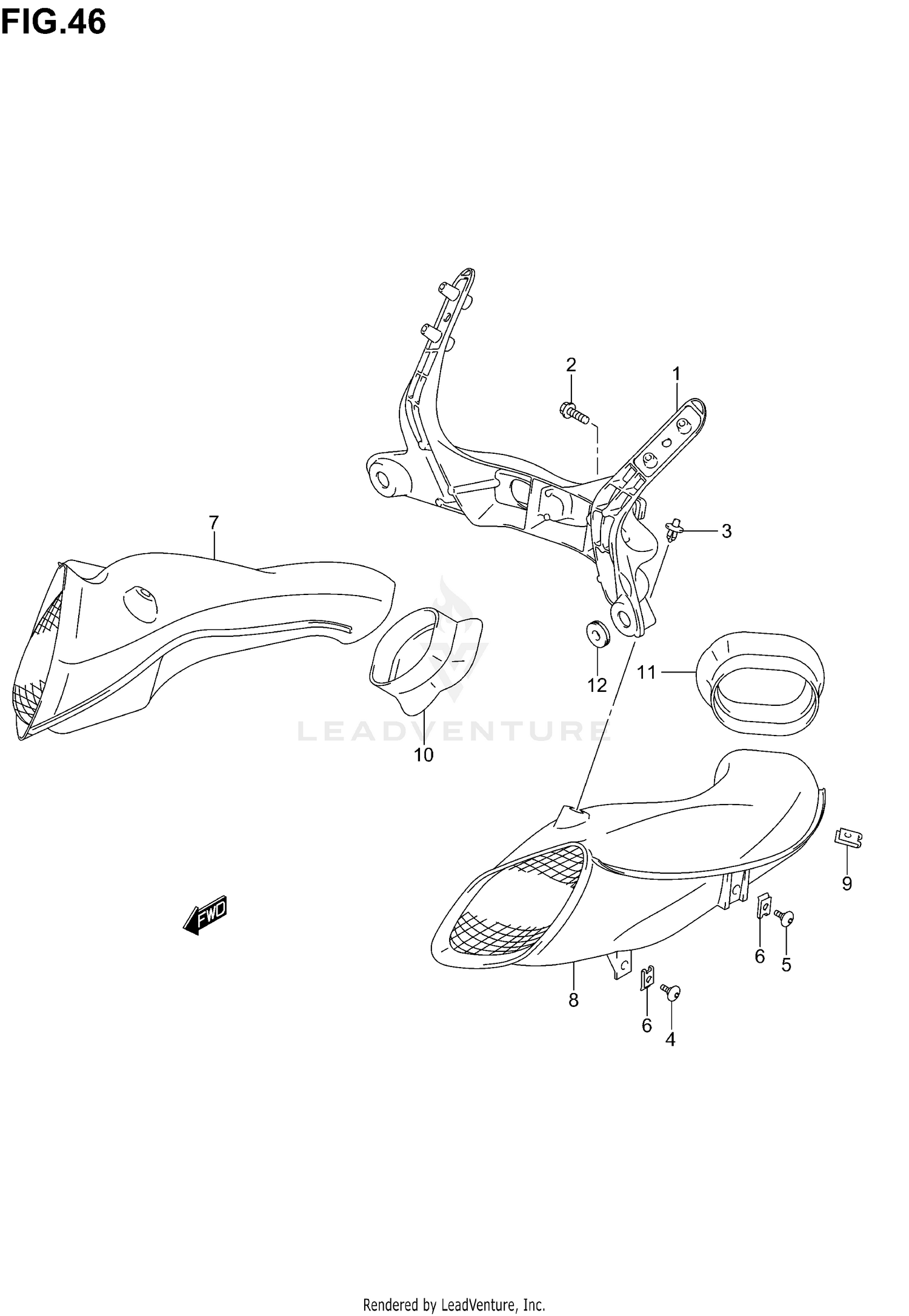

Installation Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACE,COWLING
94511-29G01
Superseded by 94511-29G03
|
$326.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT
01550-08253
Superseded by 01550-0825A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, FRONT
09139-05064
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, REAR
09139-05077
|
$4.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT,COWL
94484-24F00
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, AIR INTAKE RH
94402-29G00
|
$127.14 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, AIR INTAKE LH
94403-29G00
|
$127.14 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT,COWL
94484-24F00
|
$5.12 | ||
|
Unavailable |
|||
|
#10
MOLDING, RH
94423-29G00
|
$36.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
MOLDING, LH
94433-29G00
|
$36.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
