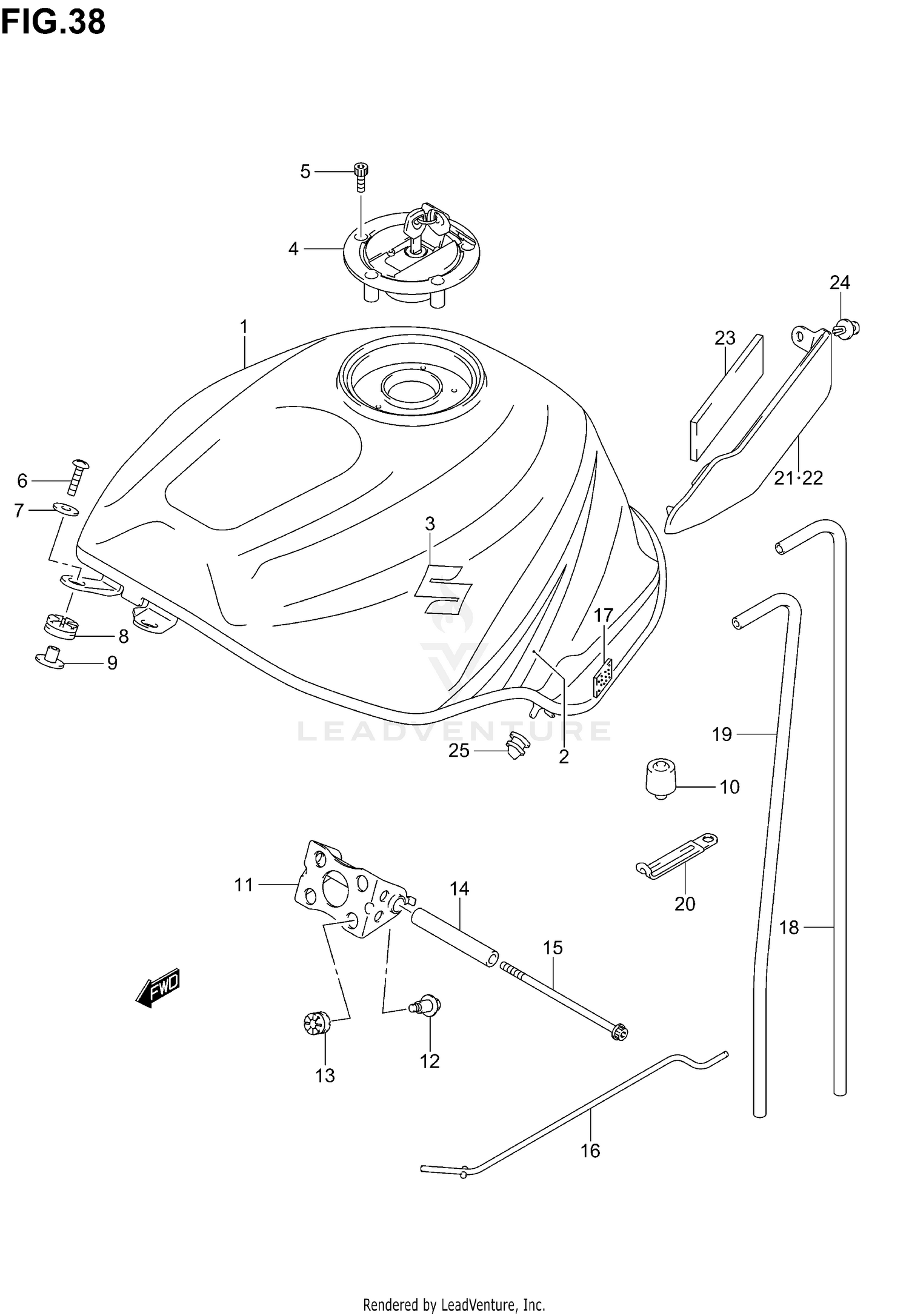

Fuel Tank (model K4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL(
44100-29G00-YBA
Superseded by 44110-29G00-13L
|
$871.83 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-29G00-YEC
|
$1,405.68 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY,FUEL(
44100-29G00-019
Superseded by 44110-29G00-13L
|
$871.83 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLUE)
44100-29G20-YBA
|
$1,028.75 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK ASSY, FUEL (YELLOW)
44100-29G20-YEC
|
$947.29 | ||
|
Unavailable |
|||
|
#1
TANK ASSY, FUEL (BLACK)
44100-29G20-019
|
$1,049.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET
68110-29G00-LR5
|
$53.07 | ||
|
Unavailable |
|||
|
#2
TAPE SET
68110-29G00-AGN
|
$54.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE SET
68110-29G00-ATJ
|
$53.07 | ||
|
Unavailable |
|||
|
#3
EMBLEM,FUEL TAN
68111-18G00-ABF
Superseded by 68111-18G01-0AT
|
$18.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM,FUEL TAN
68111-18G00-ATF
Superseded by 68111-18G01-YGP
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM,FUEL TAN
68111-18G00-E9Y
Superseded by 68111-18G01-0AT
|
$18.95 | ||
|
Unavailable |
|||
|
#4
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP SET,FUEL TA
44200-16860
Superseded by 44200-16862
|
$270.25 | ||
|
Unavailable |
|||
|
#5
BOLT (5X20)
09106-05017
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, FRONT
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK RR
44542-29G00
Superseded by 44542-29G01
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, TANK
44530-29G00
|
$28.78 | ||
|
Unavailable |
|||
|
#12
SCREW (6X22)
09139-06132
Superseded by 09139-06191
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
09106-06103
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, FUEL TANK
44574-35F00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE,WATER DRAI
44423-16G01
Superseded by 44423-16G02
|
$17.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,FUEL TANK
44424-18G00
Superseded by 44424-18G01
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
09404-06431
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, TANK RH (BLACK)
44171-29G00-291
|
$48.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, TANK LH (BLACK)
44181-29G00-291
|
$47.91 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION
44277-29G00
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP (GRAY)
09409-08314-6GS
|
$3.28 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CUSHION,FUEL TANK COVER
44276-29G00
Superseded by 44276-29G01
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
