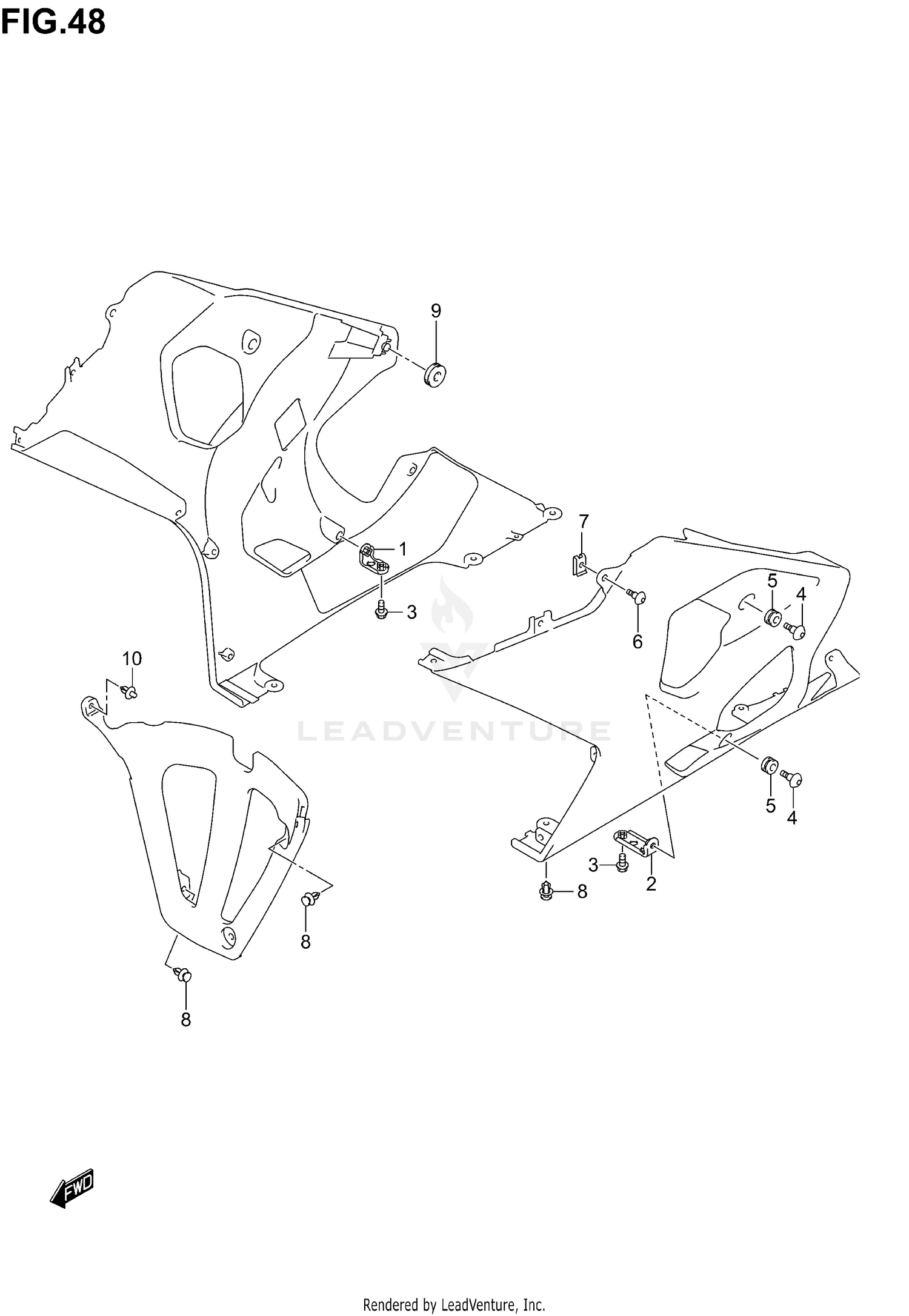

Installation Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, UNDER RH
94533-33E01
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, UNDER LH
94534-33E01
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, UNDER COWL
09139-06126
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, REAR
09139-05064
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT,COWL
94484-24F00
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, UNDER COWL
94479-35F00
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP, FRONT (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
