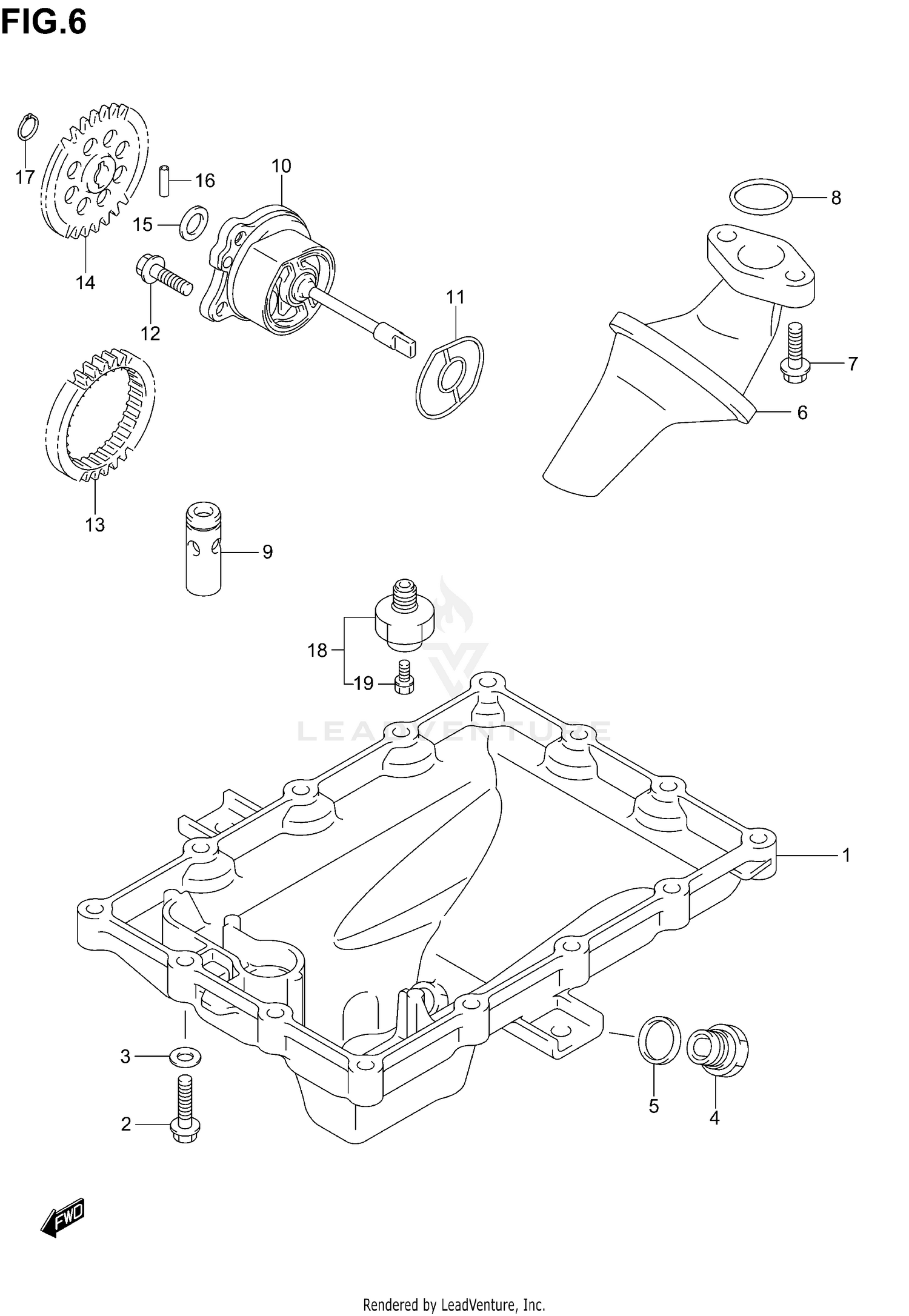

Oil Pan - Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-29G00
|
$275.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG, OIL DRAIN
09247-14036
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#6
STRAINER ASSY,E
16520-29G00
Superseded by 16520-29G01
|
$29.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (D:2.62,ID:20.3)
09280-19008
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE ASSY, OIL RELIEF
16440-24F00
|
$64.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
PUMP ASSY,ENG OIL
16400-35F00
|
$255.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING,OIL PUMP
16491-35F00
|
$8.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BOLT
01547-06203
Superseded by 01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR,OIL PUMP DRIVE (NT:33)
16321-35F01
|
$78.32 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR,OIL PUMP DRIVEN (NT:35)
16331-35F00
|
$83.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN
09261-04009
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
