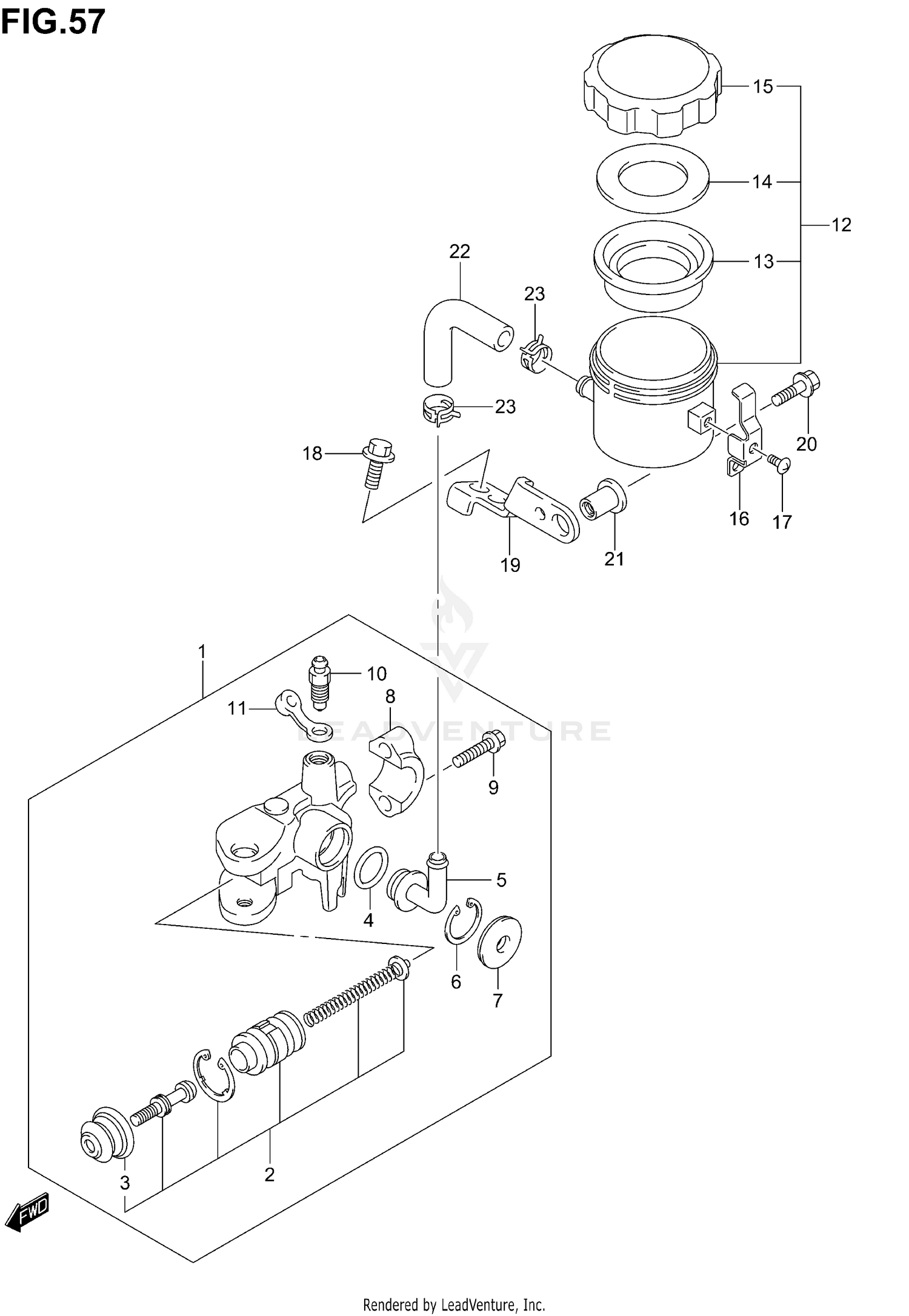

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,F
59600-29G00
Superseded by 59600-47H10
|
$271.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON/CUP SET
59600-29810
Superseded by 59600-29821
|
$84.38 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-29G00
|
$13.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
O RING
69686-34200
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CONNECTOR
59672-17C00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
69674-00B20
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, DUST
59673-17C00
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
.HOLDER
59671-36500
|
$16.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
59675-02FA0
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLEEDER
59121-01A00
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, BLEEDER
59122-01A00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK ASSY, RESERVOIR
59740-07D00
|
$77.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
59667-18441
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
.PLATE
59668-18441
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
59669-07D00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, TANK CAP
59743-17C00
|
$12.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SCREW
02142-04103
Superseded by 02142-0410A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
09111-05004
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, RESERVOIR TANK
59751-29G00
|
$12.02 | ||
|
Unavailable |
|||
|
#20
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
94619-27A00
Superseded by 09159-05048
|
$9.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOSE, RESERVOIR TANK
59731-33C10
|
$17.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP,RESERVOIR TANK,FRONT
59735-17C00
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
