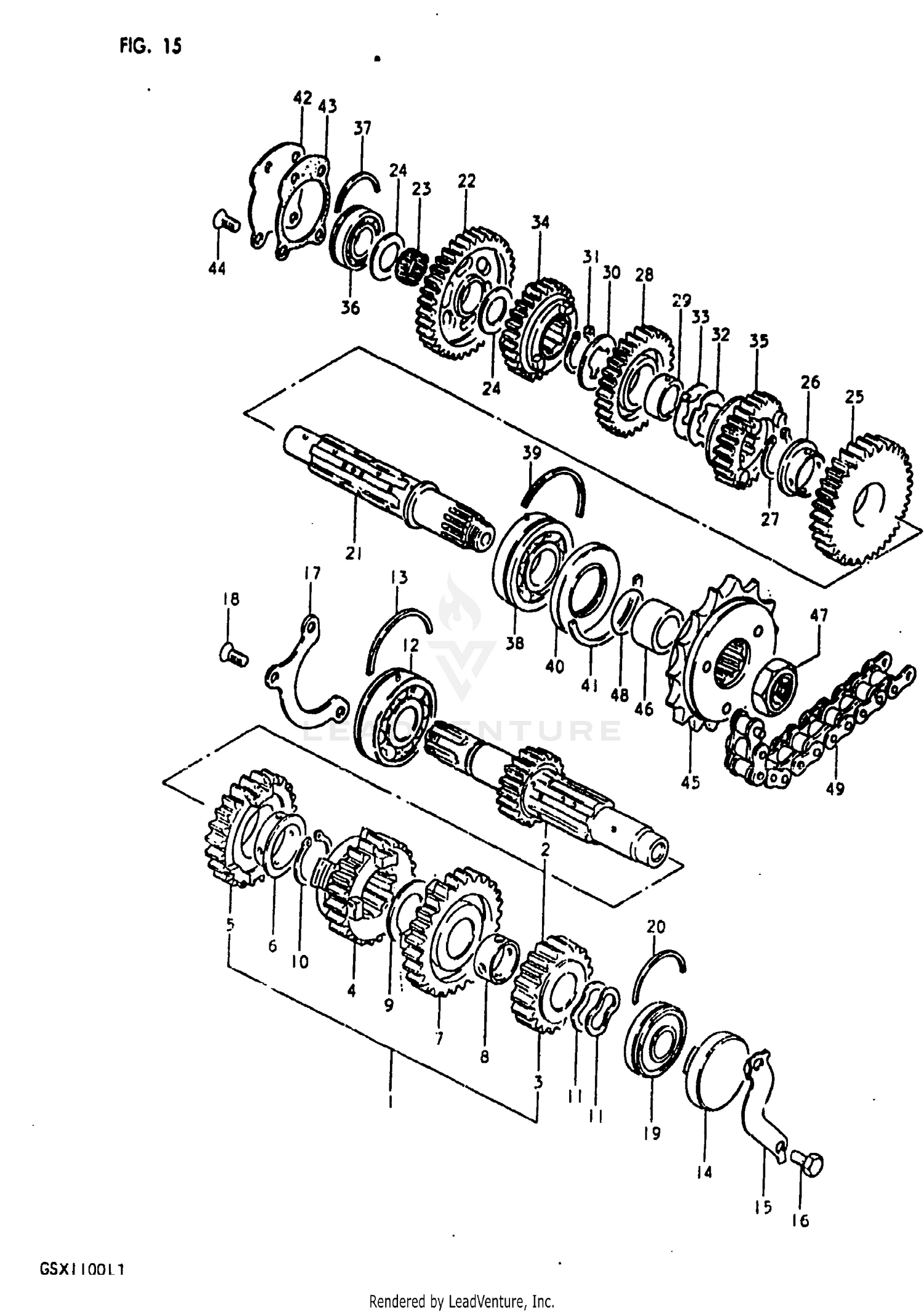

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
24120-49200
Superseded by 24120-49202
|
$206.19 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
24100-49820
Superseded by 24121-49202
|
$196.20 | ||
|
Unavailable |
|||
|
#3
GEAR, 2ND DRIVE (NT:18)
24221-49200
Superseded by 24221-49202
|
$129.55 | ||
|
Unavailable |
|||
|
#4
GEAR, 3RD DRIVE (NT:21)
24231-49200
|
$175.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 4TH DRIVE (NT:24)
24241-49200
Superseded by 24241-00A00
|
$88.87 | ||
|
Unavailable |
|||
|
#6
BUSH
09301-28001
|
$21.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 5TH DRIVE (NT:26)
24251-49200
Superseded by 24251-00A00
|
$259.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, 1ST DRIVEN
09300-22005
Superseded by 24312-02F00
|
$31.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-22321
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
WAVE WASHER
09164-20004
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, COUNTERSHAFT LH
09241-47004
|
$15.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER
23117-45000
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01107-06128
Superseded by 01500-06127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, BEARING
24741-45000
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, LH
09262-20044
|
$38.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
C RING
09390-47003
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#21
NO DESCRIPTION AVAILABLE
24131-49200
Superseded by 24131-49202
|
$223.12 | ||
|
Unavailable |
|||
|
#22
GEAR, 1ST DRIVEN (NT:35)
24311-49200
|
$125.67 | ||
|
Unavailable |
|||
|
#23
BEARING
09263-20018
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08211-20341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 2ND DRIVEN (NT:32)
24321-49200
Superseded by 24321-00A00
|
$138.67 | ||
|
Unavailable |
|||
|
#26
BUSH
09301-28001
|
$21.68 | ||
|
Unavailable |
|||
|
#27
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Unavailable |
|||
|
#28
GEAR 3RD DRIVEN
24331-49200
Superseded by 24331-49202
|
$161.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH
24332-49000
|
$19.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, RH
09167-28001
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP
08331-11289
Superseded by 08331-31289
|
$2.67 | ||
|
Unavailable |
|||
|
#32
WASHER, LH (T:1.5)
09167-28002
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, LH (T:1.0)
09169-28001
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#34
GEAR, 4TH DRIVEN (NT:27)
24341-49200
Superseded by 24341-00A00
|
$155.64 | ||
|
Available to order. Add to View Price |
|||
|
#35
GEAR, 5TH DRIVEN (NT:25)
24351-49200
Superseded by 24351-00A00
|
$167.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, LH
09262-20041
Superseded by 09262-20044
|
$38.16 | ||
|
Unavailable |
|||
|
#37
C RING
09390-47003
|
$2.11 | ||
|
Unavailable |
|||
|
#38
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Unavailable |
|||
|
#39
C RING
09390-62006
Superseded by 09390-62012
|
$9.35 | ||
|
Unavailable |
|||
|
#40
OIL SEAL
09283-32012
|
$21.46 | ||
|
Available to order. Add to View Price |
|||
|
#41
C RING
09390-62008
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE
24761-45000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET,DR SHFT
24762-45000
Superseded by 24762-45000-H17
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#44
SCREW
02122-06168
Superseded by 02122-06167
|
$1.82 | ||
|
Unavailable |
|||
|
#45
SPROCKET ASSY,E
27510-49001
Superseded by 27510-49012
|
$83.33 | ||
|
Available to order. Add to View Price |
|||
|
#46
SPACER
09180-25052
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
09159-20002
|
$9.24 | ||
|
Unavailable |
|||
|
#48
O RING
09280-25001
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#49
CHAIN, DRIVE
27600-49210
|
$421.04 | ||
|
Available to order. Add to View Price |
|||
