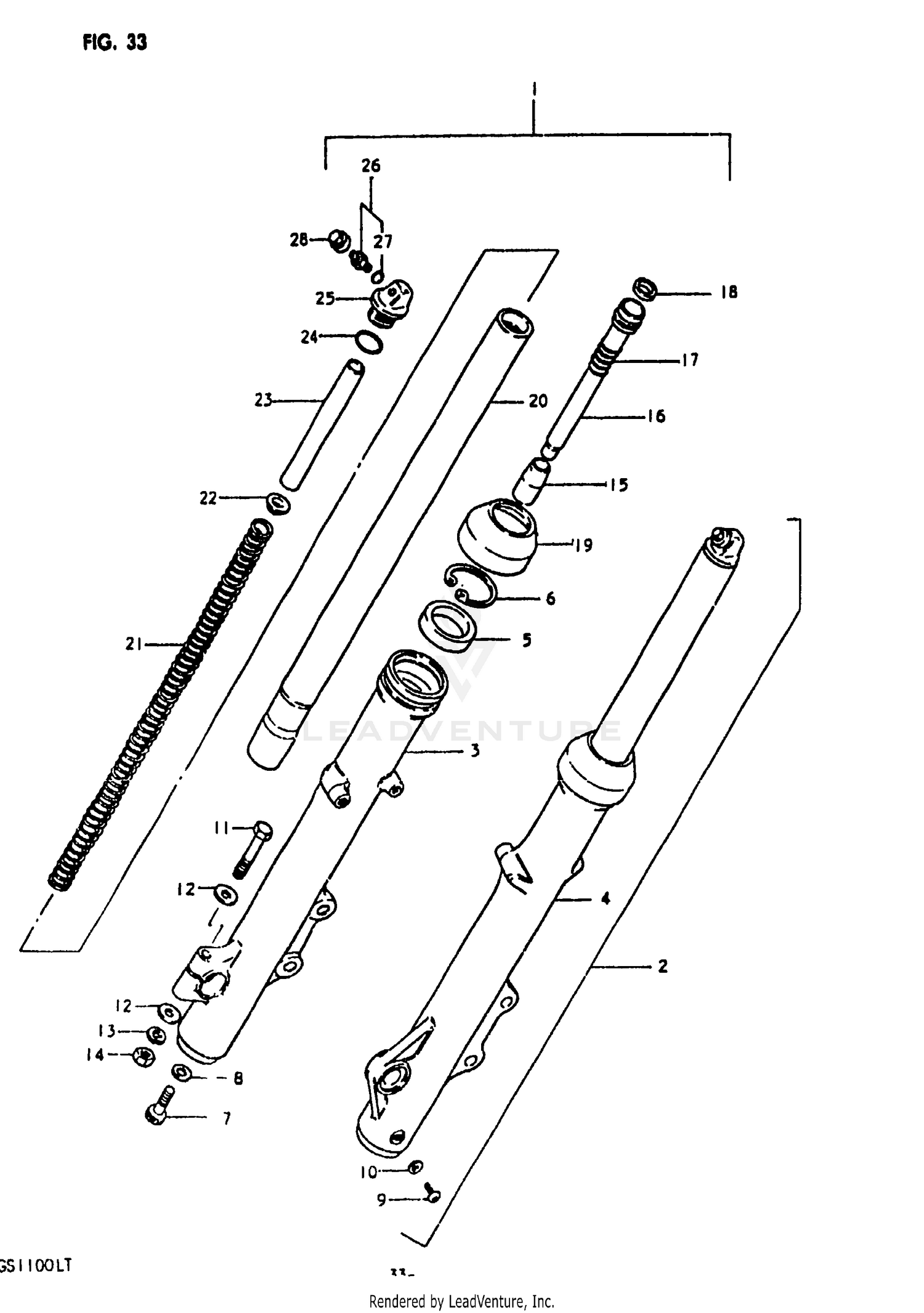

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUMPER ASSY, RH
51103-49130
|
$437.36 | ||
|
Unavailable |
|||
|
#2
DUMPER ASSY, LH
51100-49850
|
$355.96 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, RH
51130-49130
|
$175.45 | ||
|
Unavailable |
|||
|
#4
OUTER TUBE, LH
51140-49130
|
$172.79 | ||
|
Unavailable |
|||
|
#5
SEAL, OIL
51153-49000
Superseded by 51153-08C20
|
$26.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, OIL SEAL STOPPER
51156-40301
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
51147-16510
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
51148-41310
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW
02112-04088
Superseded by 02112-04087
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
51183-03010
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01107-08508
Superseded by 01500-08507
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
.WASHER
08321-31088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIECE, OIL LOCK
51195-49071
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
CYLINDER
51146-49100
|
$75.20 | ||
|
Unavailable |
|||
|
#17
SPRING
51177-49000
|
$10.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
RING, PISTON
51196-49000
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL
51173-49002
|
$22.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
INNER TUBE
51110-49130
Superseded by 51110-49270
|
$213.70 | ||
|
Unavailable |
|||
|
#21
SPRING
51171-49100
|
$37.74 | ||
|
Unavailable |
|||
|
#22
GUIDE SPRING
51172-38010
|
$6.37 | ||
|
Unavailable |
|||
|
#23
SPACER
51176-38010
|
$6.83 | ||
|
Unavailable |
|||
|
#24
O RING
51117-16310
|
$3.44 | ||
|
Unavailable |
|||
|
#25
CAP
51351-41211
|
$55.97 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE, AIR
51293-49001
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
O RING
51117-41211
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP
51294-49000
|
$12.66 | ||
|
Unavailable |
|||
