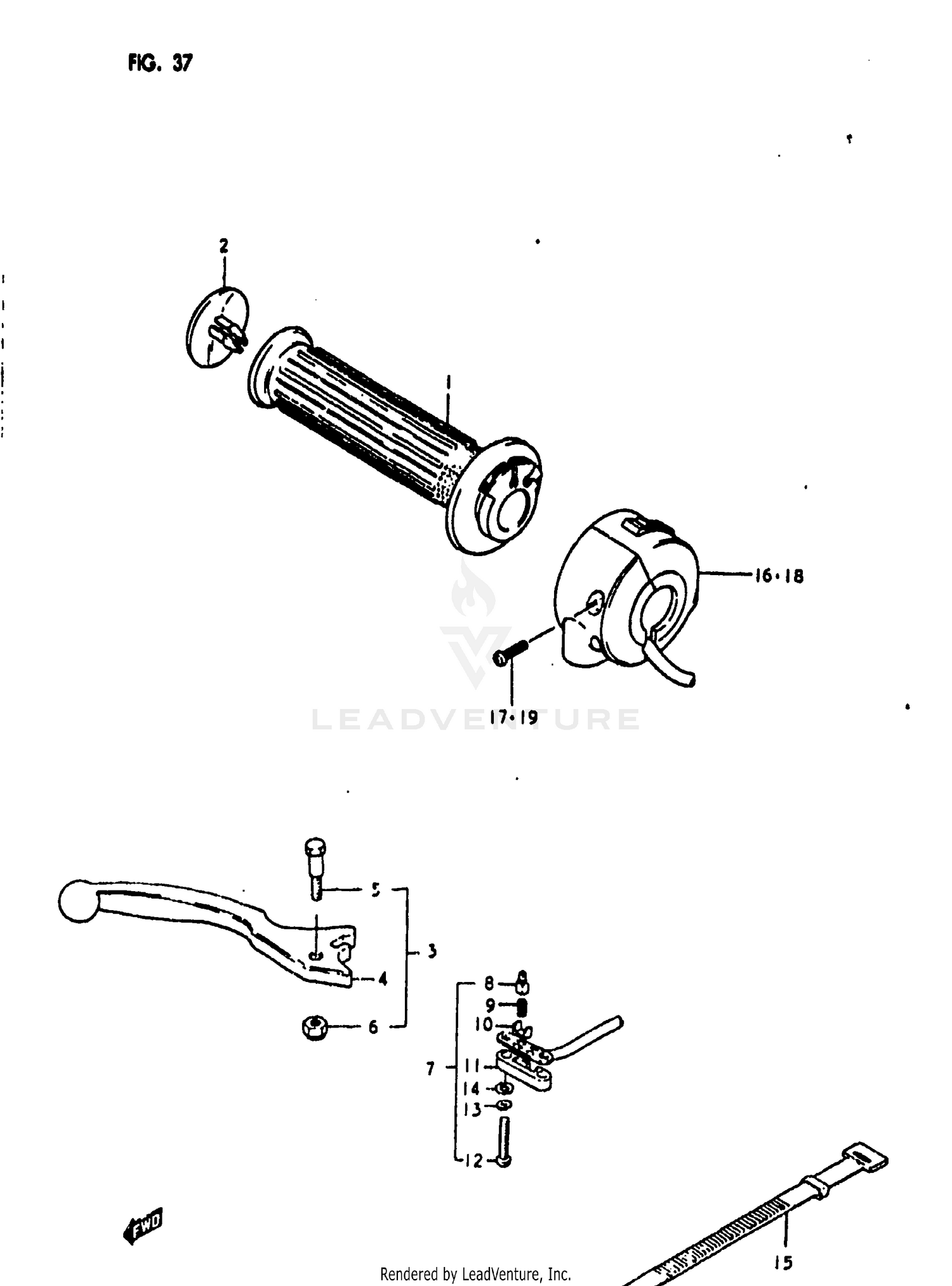

Right Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, THROTTLE
57110-44011
Superseded by 57110-49510
|
$35.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, GRIP AND RH
57215-49100
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER, BRAKE
57300-49101
Superseded by 57420-49101
|
$43.79 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, BRAKE
57420-49101
|
$43.79 | ||
|
Unavailable |
|||
|
#5
BOLT
57431-18621
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
.NUT
08319-21068
Superseded by 08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY, ST
57460-49100
Superseded by 57460-45500
|
$46.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
57461-18600
Superseded by 57465-18601
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER
57462-18600
Superseded by 57465-18601
|
$5.60 | ||
|
Unavailable |
|||
|
#10
HOLDER
57463-18600
Superseded by 57465-18601
|
$5.60 | ||
|
Unavailable |
|||
|
#11
COVER
57481-33010
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09125-03105
Superseded by 09125-03105-XC0
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,LOCK
08321-21038
Superseded by 09162-03001
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-21038
Superseded by 08322-01037
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND (L:120)
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,HAN
37200-49230
Superseded by 37200-49232
|
$131.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
37591-49210
Superseded by 09125-05102
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH ASSY,HAN
37200-49210
Superseded by 37200-49212
|
$147.80 | ||
|
Unavailable |
|||
|
#19
SCREW
37591-49210
Superseded by 09125-05102
|
$1.88 | ||
|
Unavailable |
|||
