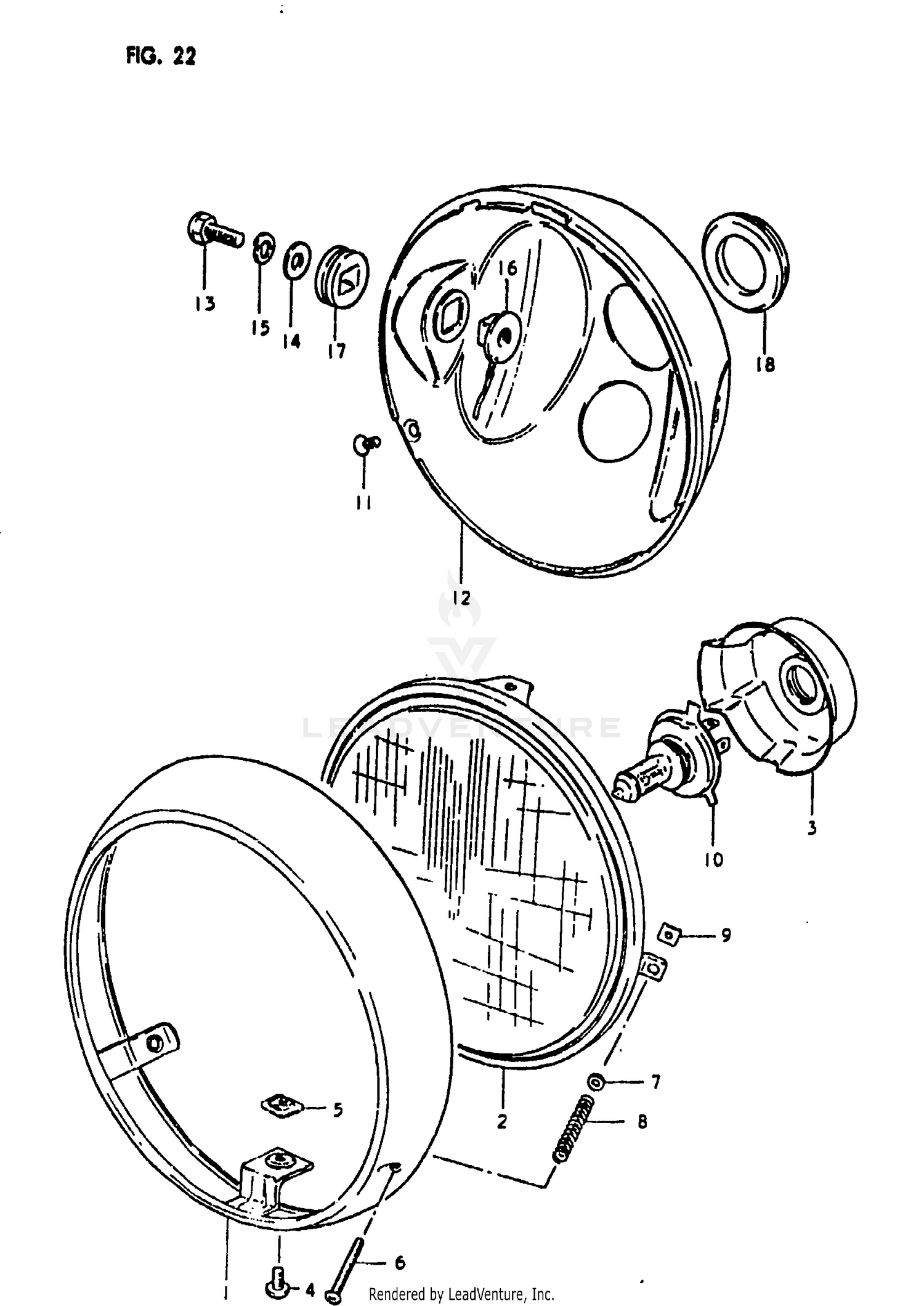

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#0
HEADLAMP ASSY
35100-45230-999
Superseded by 35100-45231-999
|
$119.07 | ||
|
Unavailable |
|||
|
#1
RIM
35111-45230
Superseded by 35111-45231
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNIT
35121-45230
|
$61.72 | ||
|
Unavailable |
|||
|
#3
COVER
35173-45230
|
$12.85 | ||
|
Unavailable |
|||
|
#4
SCREW
02112-05088
Superseded by 02112-05087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
35155-48510
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
35151-48510
Superseded by 35151-45230
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
35157-48510
Superseded by 35157-27630
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
35154-45230
Superseded by 35154-48510
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
35152-48510
Superseded by 35135-45600
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V60/55W,H4)
09471-12060
|
$31.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW
02132-05108
Superseded by 02122-05107
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOUSING, HEADLAMP
51810-33600
|
$99.28 | ||
|
Unavailable |
|||
|
#13
BOLT
01204-08207
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER
08322-11088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPACER,HEADLAMP
51821-36200
Superseded by 51821-36210
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION,HEADLAM
51827-27302
Superseded by 51827-27303
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
51845-31031
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
