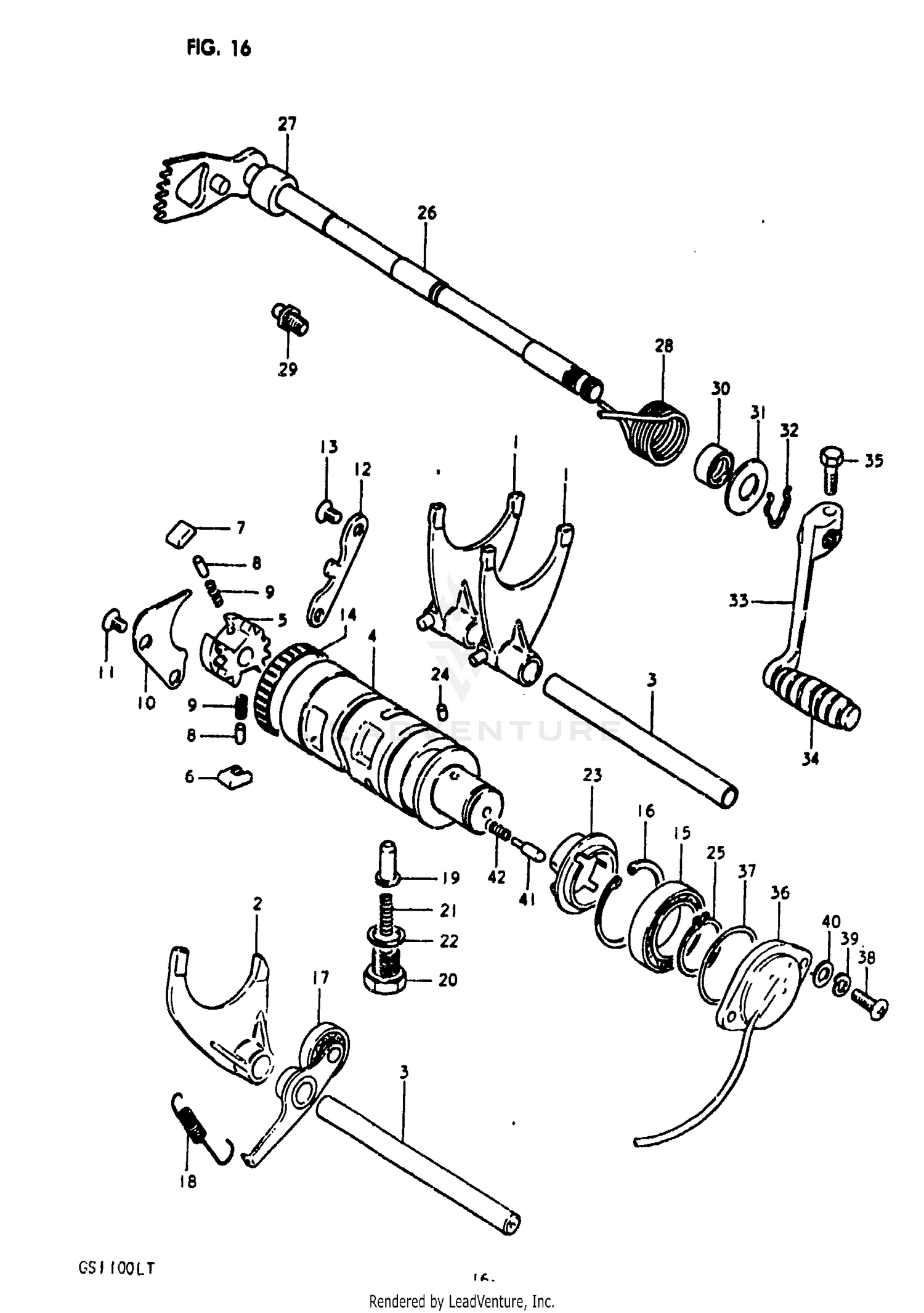

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, DRIVEN GEAR SHIFTING
25211-49200
|
$98.01 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, DRIVEN GEAR SHIFTING
25231-49201
|
$81.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, SHIFT CA
25411-49200
Superseded by 25411-33301
|
$21.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM, GEAR SHIFTING
25310-49200
|
$182.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR,GEAR SHIFT CAM DRIVEN (N
25322-11000
Superseded by 25322-31310
|
$30.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
PAWL,GEAR SHIFT,NO.1
25323-11000
Superseded by 25323-34201
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
PAWL,GEAR SHIFT,NO.2
25324-11000
Superseded by 25324-34201
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
09261-05003
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
09440-04003
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
LIFTER, PAWL
25331-49200
Superseded by 25331-49201
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02122-06128
Superseded by 02122-06127
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, CAM
25341-18000
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02122-06128
Superseded by 02122-06127
|
$2.29 | ||
|
Unavailable |
|||
|
#14
BEARING, RH
09263-43001
|
$36.06 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
08110-69050
Superseded by 08113-69050
|
$45.59 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
08331-21429
Superseded by 08331-41429
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
STOPPER, CAM
25350-49200
Superseded by 25350-49201
|
$29.08 | ||
|
Unavailable |
|||
|
#18
SPRING
09443-08019
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, GEAR SHIFT CAM
25351-30010
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, STOPPER
25354-30000
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING
09440-06018
|
$1.05 | ||
|
Unavailable |
|||
|
#22
GASKET
09168-14004
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PLATE, STOPPER
25381-49200
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
06211-04063
Superseded by 04221-04069
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP, REAR FINAL DRIVE
08331-11258
Superseded by 08331-31256
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT, GEAR SHIFTING
25510-45400
|
$77.14 | ||
|
Unavailable |
|||
|
#27
SPACER
09180-12068
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING
09444-26017
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
STOPPER, ARM
25671-01000
Superseded by 25671-01011
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER (12.5X26X1.6)
09160-12020
Superseded by 09160-12089
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CIRCLIP
09384-12001
Superseded by 08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
LEVER ASSY, GEAR SHIFTING
25600-49000
|
$63.30 | ||
|
Unavailable |
|||
|
#34
.RUBBER,GEAR SHIFT PEDAL
25652-16500
Superseded by 25652-16510
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, REAR
01107-08208
Superseded by 01500-08207
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#36
BODY GEAR SHIFT
37720-49210
Superseded by 37720-24A01
|
$80.75 | ||
|
Unavailable |
|||
|
#37
O RING
09280-36001
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW
02112-05128
Superseded by 02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
LOCK WASHER
08321-21058
Superseded by 08321-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
08322-21058
Superseded by 08322-01057
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
CONTACT
09209-05011
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPRING
09440-04010
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
