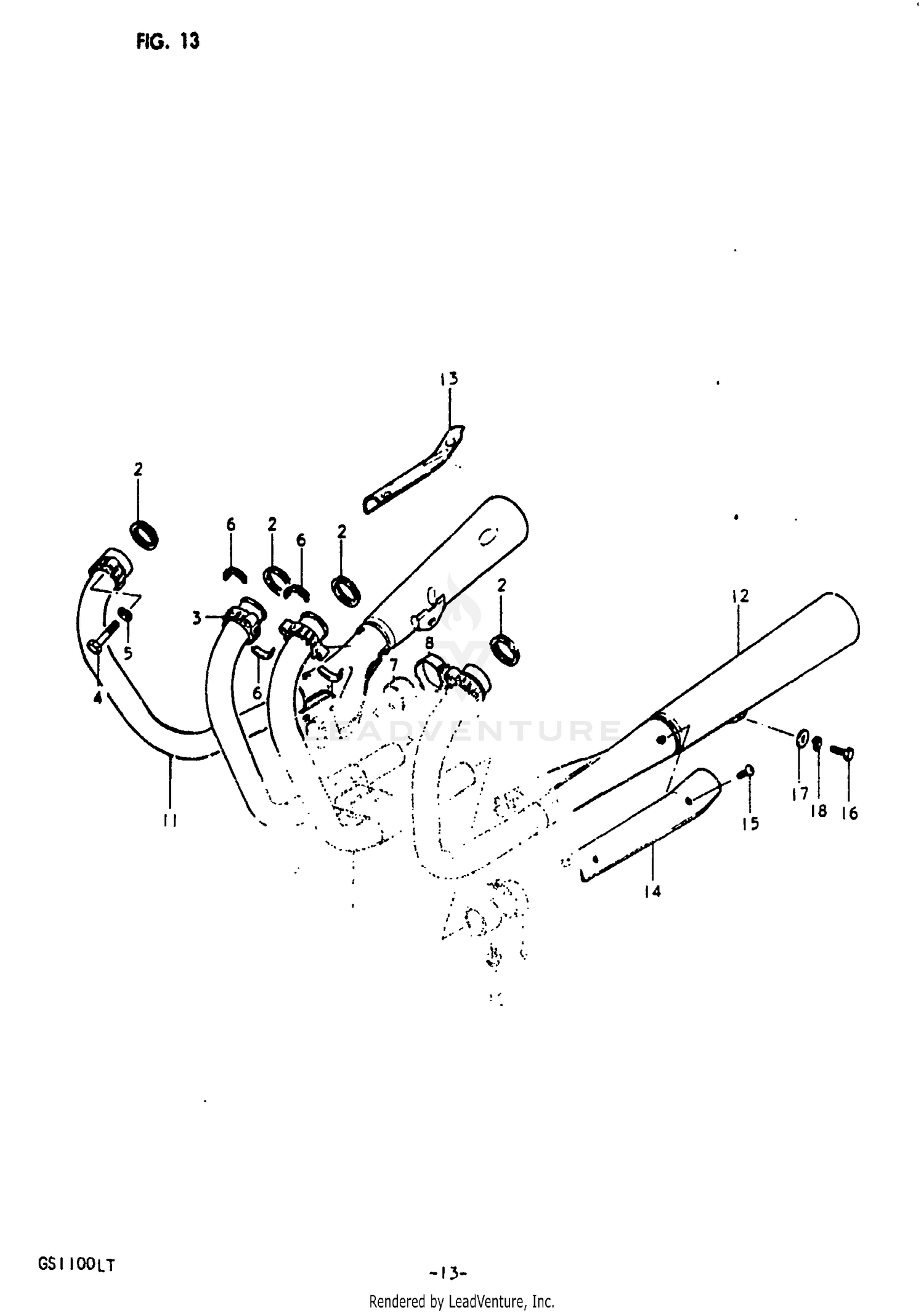

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST CENTER
14100-49200
|
$344.73 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
14181-11010
Superseded by 14181-01D00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
14182-49000
|
$44.45 | ||
|
Unavailable |
|||
|
#4
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE, EXHAUST PIPE
14155-49000
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR,MUFFL
14771-49001
Superseded by 14771-49010
|
$36.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, CONNECTOR RH
14459-49000
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, CONNECTOR LH
14469-49000
|
$17.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01517-08258
Superseded by 01550-08257
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
NO DESCRIPTION AVAILABLE
14310-49120
Superseded by 14305-49120-H01
|
$236.12 | ||
|
Unavailable |
|||
|
#12
NO DESCRIPTION AVAILABLE
14340-49120
Superseded by 14306-49120-H01
|
$236.12 | ||
|
Unavailable |
|||
|
#13
COVER, MUFFLER RH
14781-49100
|
$33.62 | ||
|
Unavailable |
|||
|
#14
COVER, MUFFLER LH
14791-49100
|
$33.62 | ||
|
Unavailable |
|||
|
#15
SCREW
02112-05068
Superseded by 09125-05122
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT
01107-10308
Superseded by 01500-1030A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
