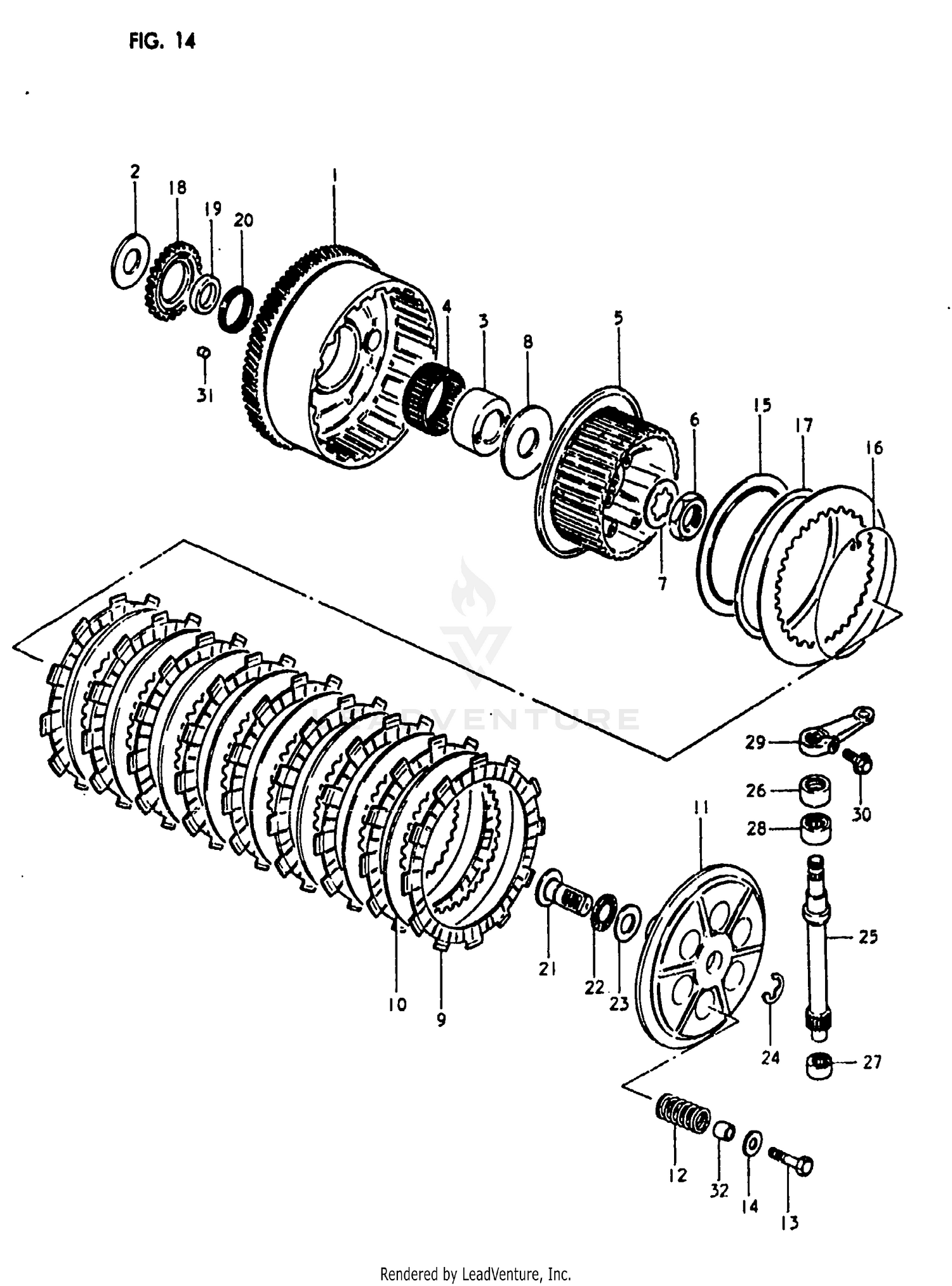

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR,PRIMARY DR
21200-49201
Superseded by 21200-49214
|
$333.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER
09160-25023
Superseded by 09160-25055
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
21251-49200
|
$50.92 | ||
|
Unavailable |
|||
|
#4
BEARING
09263-51001
Superseded by 09263-51002
|
$48.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB, SLEEVE
21411-49201
Superseded by 21410-00A00
|
$174.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, PIVOT RH
09140-24004
Superseded by 09140-24007
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09167-25007
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-25022
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, DRIVE (T:3)
21441-49200
Superseded by 21441-31D00
|
$34.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRIVEN
21451-49200
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISC, PRESSURE
21462-49200
Superseded by 21462-49201
|
$49.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-19007
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, REAR
01107-06308
Superseded by 01500-06307
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
.WASHER (6.5X20X1.6)
09160-06020
Superseded by 09160-06066
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, WAVE WASHER
21471-49200
Superseded by 21471-49100
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, STOPPER
21481-45100
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
WAVE WASHER
09164-00003
|
$16.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, OIL PUMP DRIVE (NT:34)
16321-49990
Superseded by 16321-49000
|
$125.06 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
16325-45001
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
09263-36002
|
$19.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
RACK, RELEASE
23165-49200
Superseded by 23165-49201
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
09263-15003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, CLUTCH PUSH
09160-15015
Superseded by 09160-15045
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
08322-11128
Superseded by 08322-01127
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
PINION, RELEASE
23261-45400
|
$568.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$7.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BEARING
09263-12014
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING
09263-15012
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#29
ARM, RELEASE
23271-49001
Superseded by 23271-45400
|
$29.26 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01527-06207
Superseded by 01550-06207
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION,PRIMARY
21215-49000
Superseded by 21215-49001
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER (6.2X12X14)
09180-06088
Superseded by 09180-06174
|
$7.11 | ||
|
Available to order. Add to View Price |
|||
