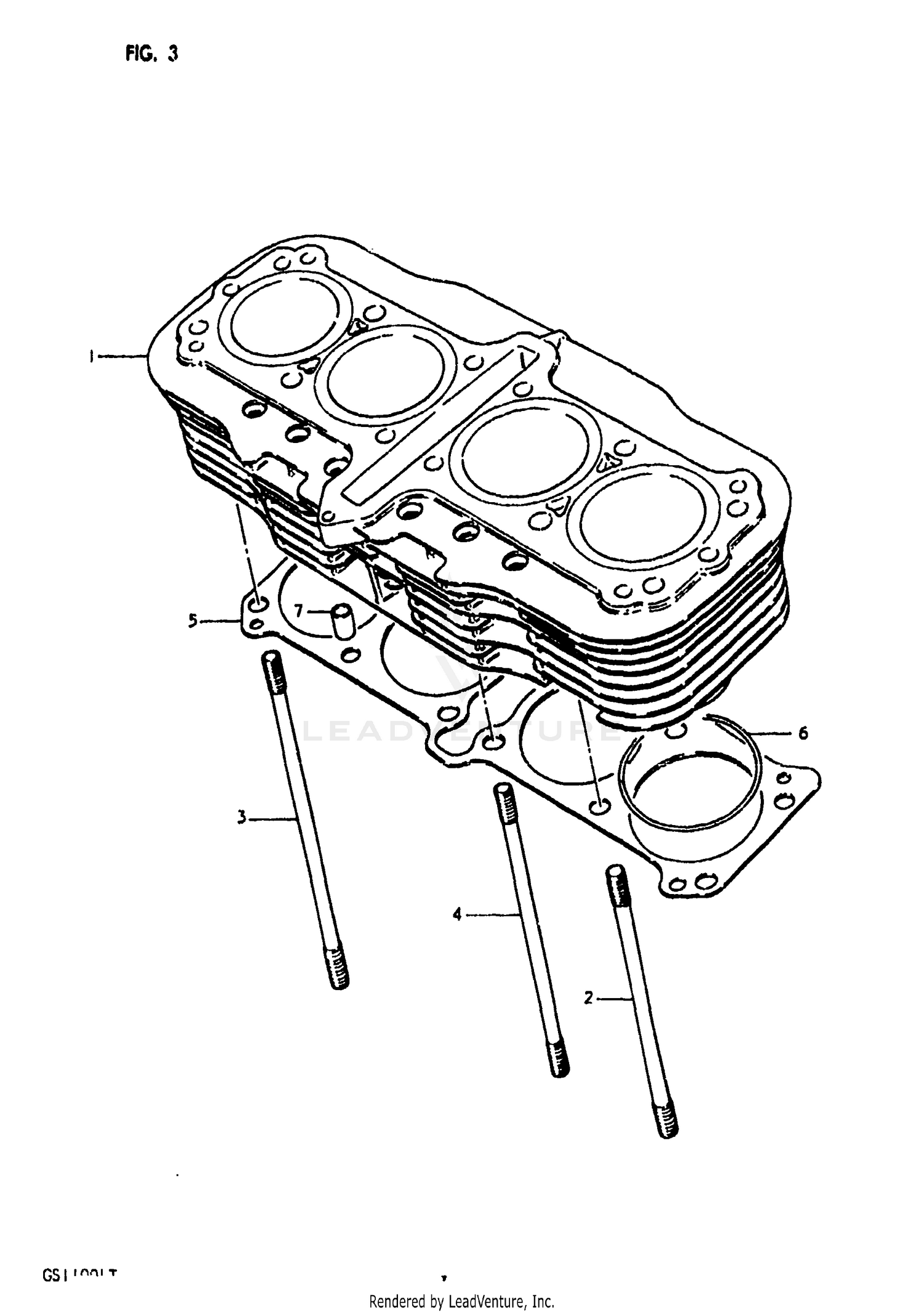

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-49200
Superseded by 11210-49220
|
$749.52 | ||
|
Unavailable |
|||
|
#2
STUD BOLT (L: 131)
09108-10027
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
STUD BOLT (L:168)
09108-10028
Superseded by 09108-10112
|
$15.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
STUD BOLT (L: 141)
09108-10030
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET,CYLINDER
11241-49200
Superseded by 11241-49200-H17
|
$54.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
09280-74002
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN
09206-13006
Superseded by 09206-13017
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
