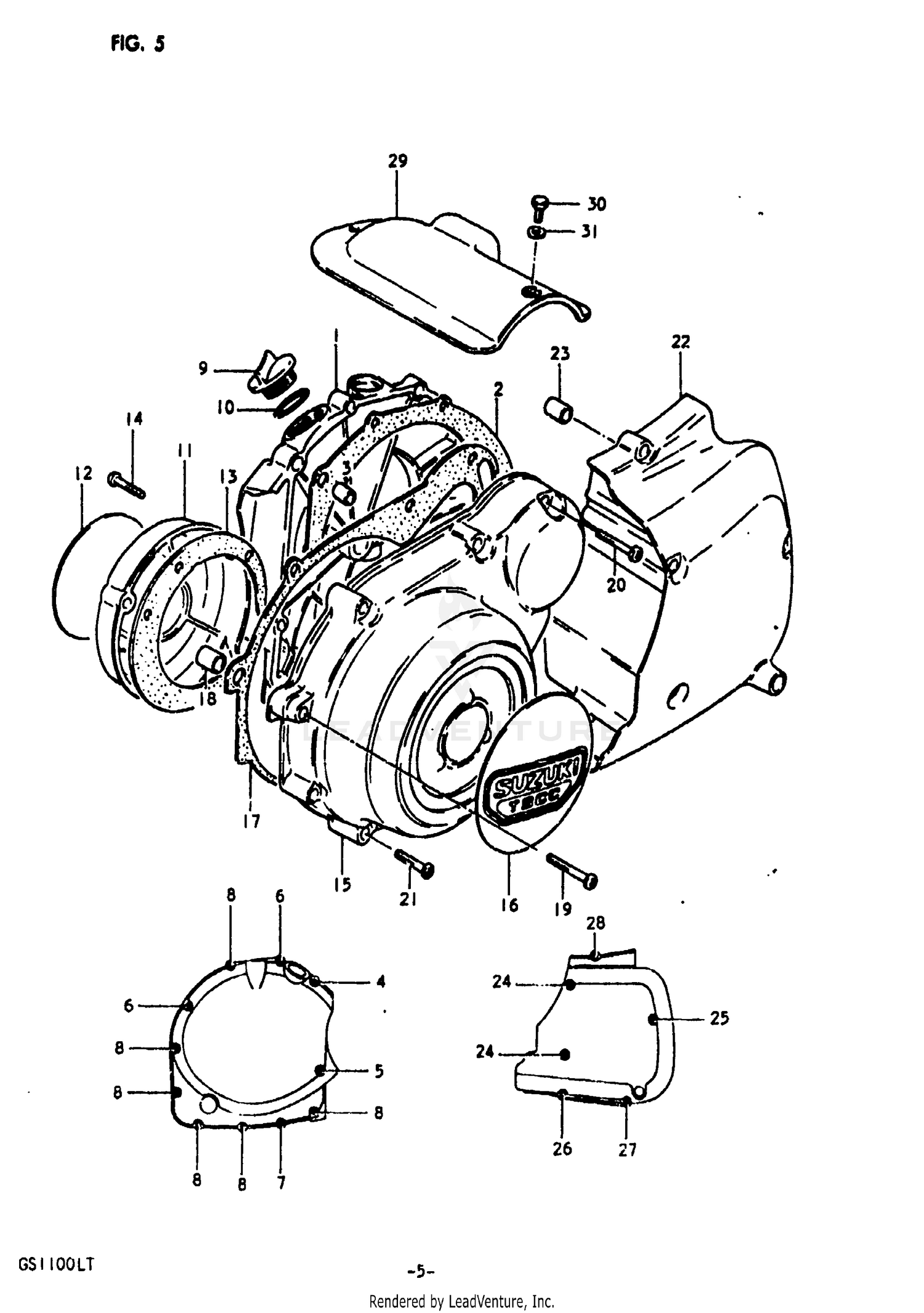

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-49200
Superseded by 11340-49201
|
$238.59 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CLUTCH C
11482-49201
Superseded by 11482-49202-H17
|
$44.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
04211-09129
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X40)
02112-06408
Superseded by 02112-06407
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-06358
Superseded by 02112-06357
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02112-06308
Superseded by 02112-06307
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-06258
Superseded by 02112-06257
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW
02112-06208
Superseded by 02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CAP, OIL FILLER
09259-30001
Superseded by 09200-30810
|
$12.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
09280-32005
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, CONTACT BREAKER
11381-49200
Superseded by 11381-49202
|
$71.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
EMBLEM
68235-49200
|
$24.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
11491-49200
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-05308
Superseded by 02112-0530A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, GENERATOR
11351-49200
Superseded by 11351-49201
|
$210.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM
68233-49200
|
$25.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET,MAGNETO
11483-49200
Superseded by 11483-49210
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN
09206-13001
Superseded by 04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SCREW (6X45)
02112-06458
Superseded by 02112-06457
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW (6X40)
02112-06408
Superseded by 02112-06407
|
$2.25 | ||
|
Unavailable |
|||
|
#21
SCREW
02112-06358
Superseded by 02112-06357
|
$2.21 | ||
|
Unavailable |
|||
|
#21
SCREW
02112-06308
Superseded by 02112-06307
|
$2.48 | ||
|
Unavailable |
|||
|
#22
COVER, ENGINE SPROCKET
11360-49200
Superseded by 11360-49201
|
$173.12 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
04211-09129
|
$2.06 | ||
|
Unavailable |
|||
|
#24
SCREW
02112-06958
Superseded by 02112-0695B
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02112-06858
Superseded by 02112-06857
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW
02112-06708
Superseded by 02112-06707
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW (6x55)
02112-06557
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02112-06308
Superseded by 02112-06307
|
$2.48 | ||
|
Unavailable |
|||
|
#29
COVER, STARTER MOTOR
11382-49002
|
$52.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01104-05108
Superseded by 01500-0510B
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
08322-21058
Superseded by 08322-01057
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
