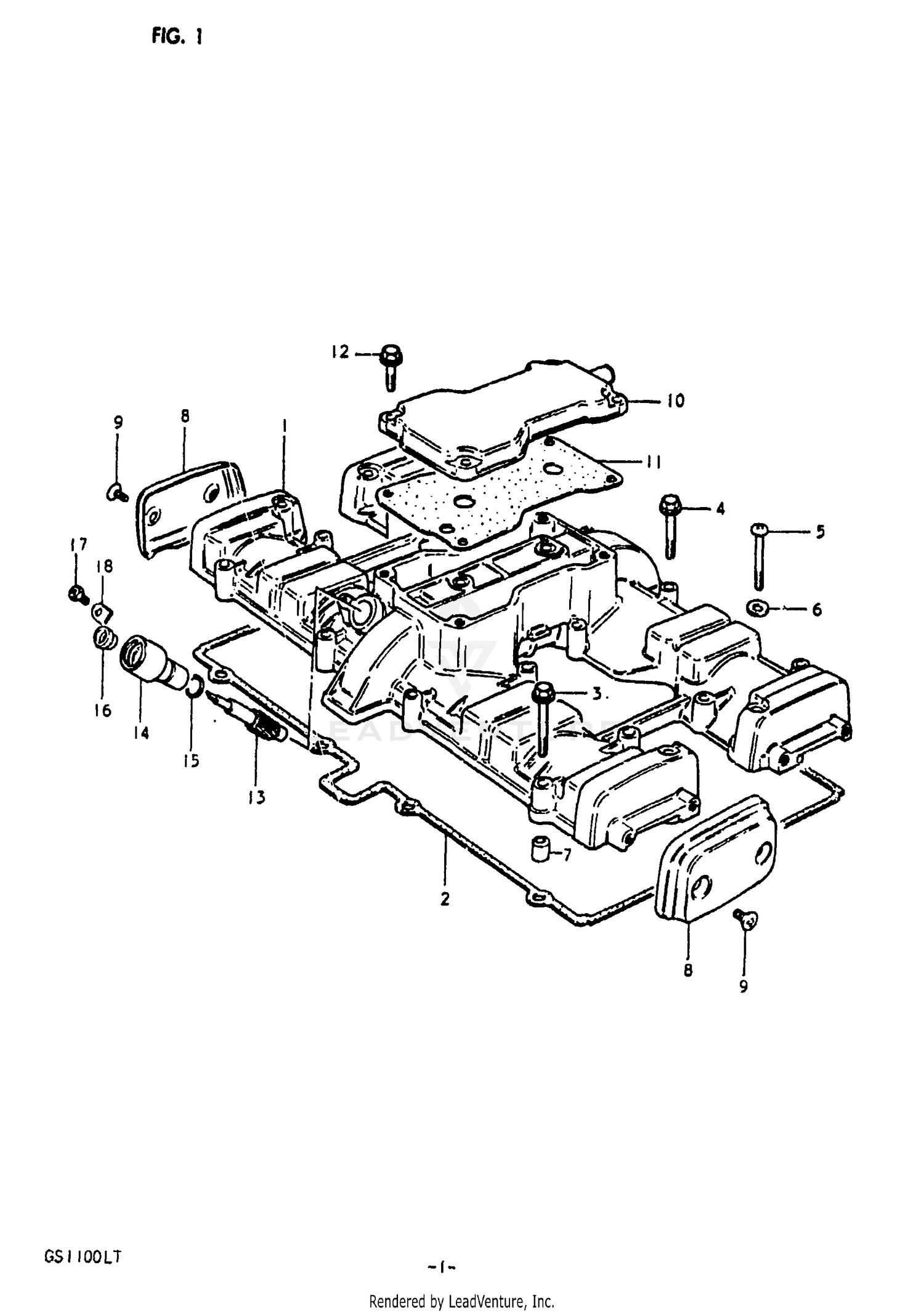

Cylinder Head Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
11171-49202
Superseded by 11171-49203
|
$110.26 | ||
|
Unavailable |
|||
|
#2
GASKET,CYL HD C
11173-49201
Superseded by 11173-49207-H17
|
$48.61 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01517-06408
Superseded by 01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-06358
Superseded by 01550-06357
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02152-06408
Superseded by 02112-16407
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET (5.8X13X1.2)
09168-06009
Superseded by 09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIN
09206-08001
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, COVER
11174-49201
Superseded by 11174-49210
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02132-05127
Superseded by 02122-05127
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#10
NO DESCRIPTION AVAILABLE
11176-49200
Superseded by 11176-49201
|
$24.50 | ||
|
Unavailable |
|||
|
#11
GASKET,BRTHR CV
11177-49200
Superseded by 11177-49200-H17
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01517-06208
Superseded by 01550-06207
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, TACHOMETER DRIVEN
26431-49200
Superseded by 26431-49201
|
$42.94 | ||
|
Unavailable |
|||
|
#14
SLEEVE
26441-45000
Superseded by 26441-49000
|
$38.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL BAND
26451-45000
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
09289-05002
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
09128-05101
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE
26449-33000
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
