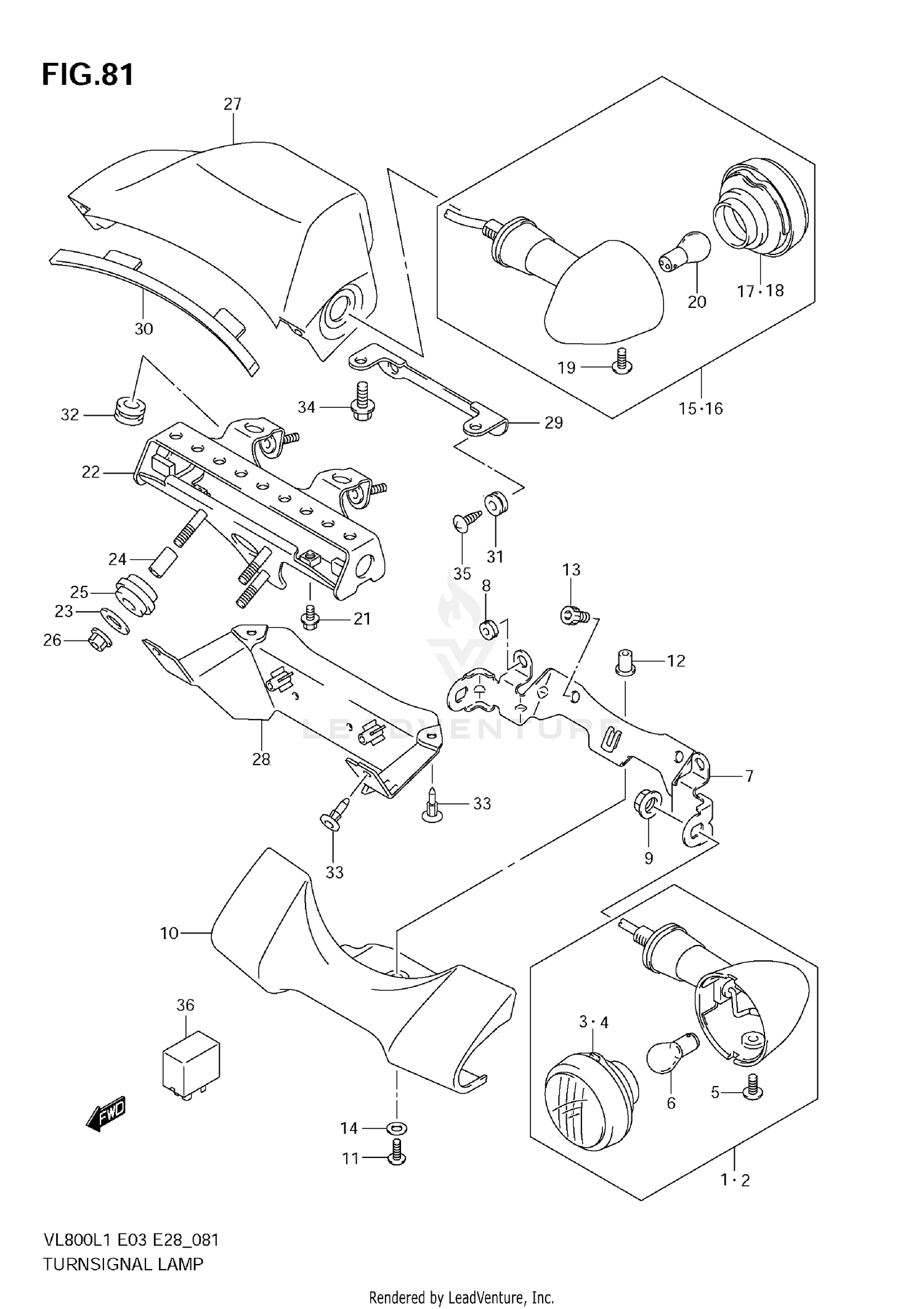

Turnsignal Lamp (vl800 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,FRONT TURNSIGNAL RH
35601-41FC0
|
$146.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP ASSY,FRONT TURNSIGNAL LH
35602-41FC0
|
$145.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS
35610-38AA0
|
$38.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS
35630-38AA0
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
35616-41FA2
Superseded by 35616-41FA3
|
$65.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION (6.5X14X6)
09320-06016
Superseded by 09320-06027
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
08310-0010B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FRONT TURNSIGNAL
35641-41F02
|
$97.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (5X8)
09139-05042
|
$3.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, COVER
09159-05019
|
$8.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT
07130-0812B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (5.5X14X1.2)
09160-05048
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
LAMP ASSY, REAR RH
35603-38AH0
|
$151.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
LAMP ASSY, REAR LH
35604-38AH0
|
$145.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
LENS, RH
35610-38AH0
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
LENS, LH
35630-38AH0
|
$42.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW (4X10)
35623-38AA0
|
$6.31 | ||
|
Unavailable |
|||
|
#20
BULB (12V21W)
09471-12045
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, RR TURN (6X14)
09103-06507
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRACKET, REAR TURNSIGNAL
35620-43H00
Superseded by 35620-43H01
|
$58.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER (6.4X10X18)
09180-06195
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
CUSHION, BRACKET
09320-10504
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, BRACKET
08316-1006A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, RR TURN UPPER
35621-43H00
|
$120.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER, RR TURN LOWER
35622-06J00
|
$46.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET, RR TURN COVER
35623-43H00
|
$11.43 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET, RR TURN COVER
35657-43H00
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
CUSHION (6.5X14X6)
09320-06016
Superseded by 09320-06027
|
$2.56 | ||
|
Unavailable |
|||
|
#32
.CUSHION (8.4X18X6)
09320-08066
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, RR COVER
09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
BOLT, RR COVER BKT
01550-0612A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, RR COVER
03541-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#36
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$110.65 | ||
|
Available to order. Add to View Price |
|||
