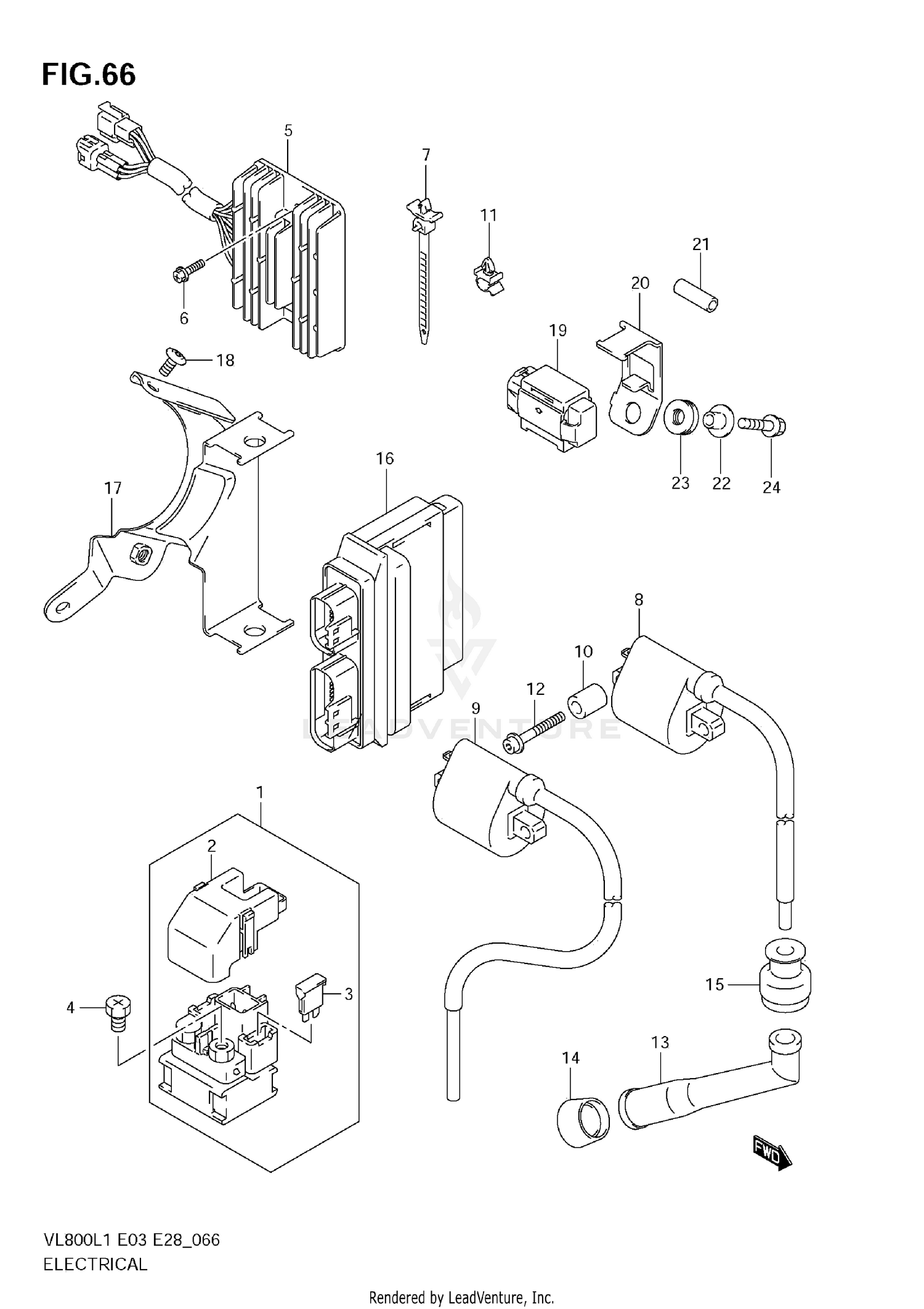

Electrical (vl800t E3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-21E20
Superseded by 31800-21E30
|
$83.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, RELAY ASSY
31861-47E00
|
$17.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (30A)
09481-30101
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-41F11
Superseded by 32800-47H00
|
$325.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
02162-0620B
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:90)
09407-11402
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL ASSY,IGNITION
33410-17G00
Superseded by 33410-17G01
|
$92.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY,IGNITION
33420-41F10
Superseded by 33420-41F11
|
$93.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER (6.4X10X18)
09180-06195
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
09403-07308
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, IGNITION COIL (5X35)
09106-05033
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, SPARK PLUG
33510-11410
|
$32.06 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, SPARK PLUG
33541-47D00
|
$9.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
CONTROL UNIT, FI
32920-39GB0
|
$1,758.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET
44880-43H00
|
$21.50 | ||
|
Unavailable |
|||
|
#18
BOLT (6X12)
09139-06108
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR ASSY,FUEL CUT
33960-06G10
|
$111.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, FUEL CUT
33961-41F00
|
$3.58 | ||
|
Unavailable |
|||
|
#21
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER, FUEL CUT
09180-06325
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION (8X18X5.8)
09320-06017
Superseded by 09320-08516
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FUEL CUT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
