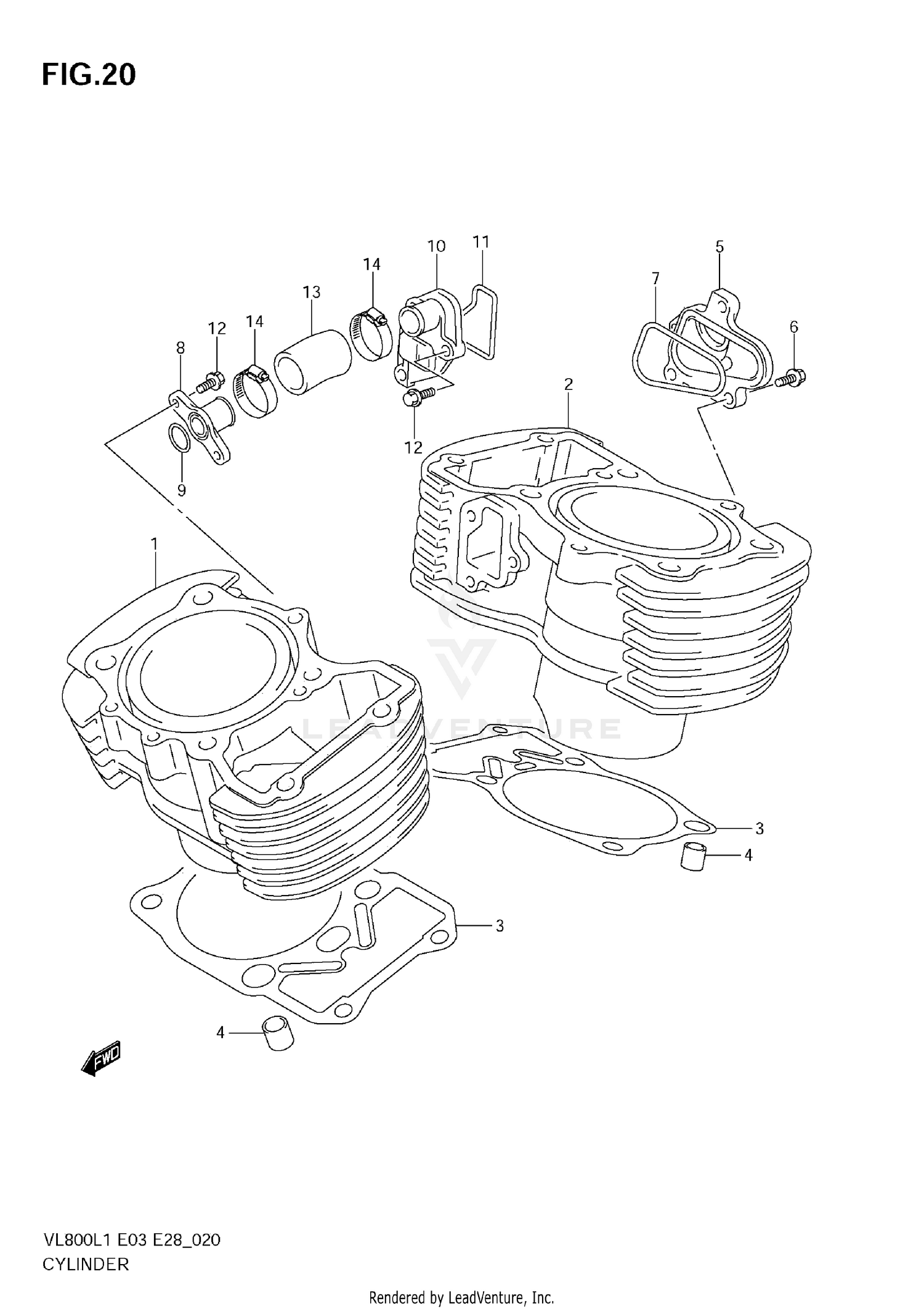

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER, FRONT
11210-39G00-0F0
|
$893.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER, REAR
11220-39G00-0F0
|
$893.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,CYLINDER
11241-39G00
|
$15.61 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOCK PIN
04211-13189
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR, WATER INLET
11237-41F00
|
$48.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING,INLET WATER CHAMBER
11247-38A00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNION, WATER INLET
11235-41F00
|
$27.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING (D:2.4,ID:15.8)
09280-16005
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNION, OUTLET
17892-41F00
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING,CYL OUTLET UNION
17899-41F00
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE, CYLINDER JOINT
17853-38A10
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
09402-28513
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
