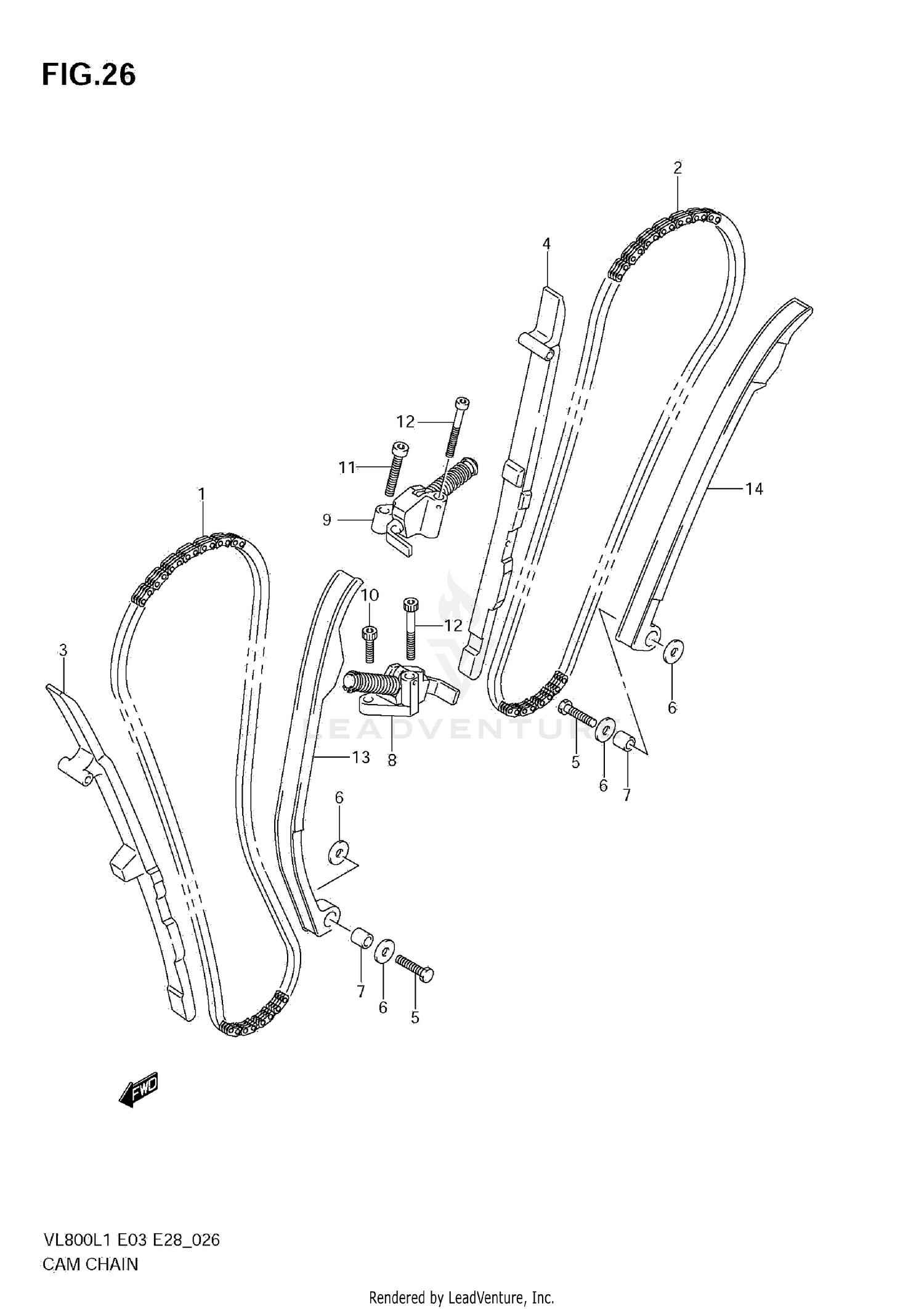

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE FRONT
12760-41F01
|
$198.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM SHAFT DRIVE REAR
12760-38A21
|
$200.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN FRONT
12772-41F00
Superseded by 12772-41F01
|
$47.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUIDE,CAM CHAIN REAR
12771-41F00
Superseded by 12771-41F01
|
$48.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT (6X26)
09100-06129
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
08211-06182
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
09180-06148
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
ADJUSTER ASSY, TENSIONER FRONT
12831-38A01
|
$162.39 | ||
|
Available to order. Add to View Price |
|||
|
#9
ADJUSTER ASSY, TENSIONER REAR
12832-41F01
|
$162.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
07130-0620A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X30)
07130-0630A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X45)
07130-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
TENSIONER,CAM CHAIN FRONT
12811-41F00
Superseded by 12811-41F01
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
TENSIONER, CAM CHAIN REAR
12816-38A01
|
$65.85 | ||
|
Available to order. Add to View Price |
|||
