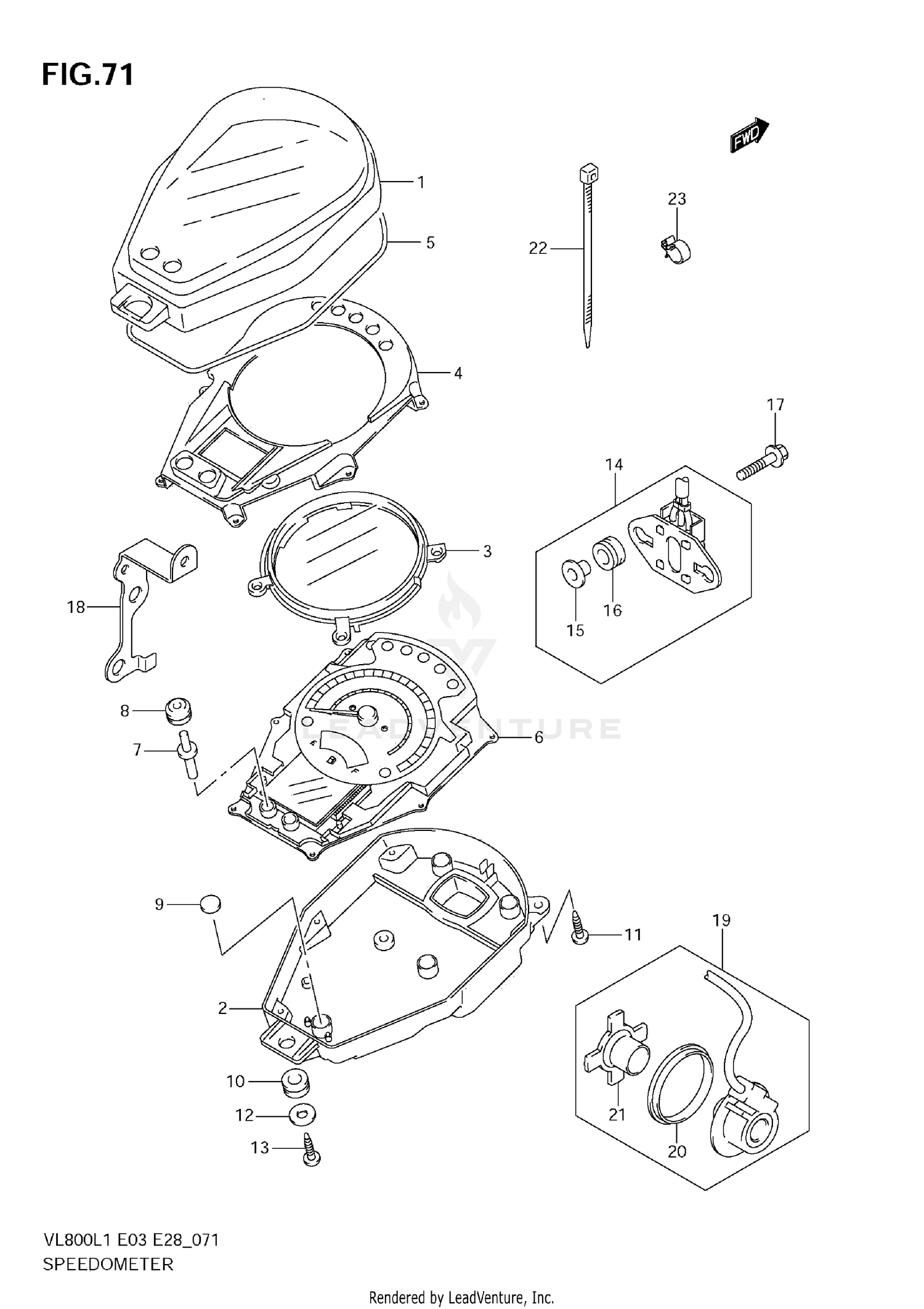

Speedometer (vl800 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE ASSY
34151-43H00
|
$192.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
CASE, LOWER
34156-43H00
|
$39.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING
34193-43H00
|
$132.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, WINDOW
34125-43H00
|
$44.54 | ||
|
Unavailable |
|||
|
#5
PACKING, RUBBER
34153-43H00
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPEEDOMETER (MILE/KILO)
34120-43H10
|
$893.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOB
34124-16G00
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING
34126-44G00
|
$11.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION, METER
34167-13E00
|
$5.76 | ||
|
Unavailable |
|||
|
#10
.CUSHION
34996-43410
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (3X12)
34183-29F00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (5.5X16X1.2)
09160-05037
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, SPEEDOMETER
03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
RESISTOR ASSY
36510-39F00
Superseded by 36510-39F01
|
$78.10 | ||
|
Unavailable |
|||
|
#15
.SPACER (6.5X10X11.6)
09180-06319
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION (10X20X10)
09320-10015
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X25)
09116-06047
|
$1.82 | ||
|
Unavailable |
|||
|
#18
GUIDE, SPEED SENSOR
34938-41F50
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR, SPEEDO
34990-41F10
|
$266.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
09286-44001
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
MAGNET
34983-27G00
|
$41.12 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLIP, SENSOR LEAD
09403-06410
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
