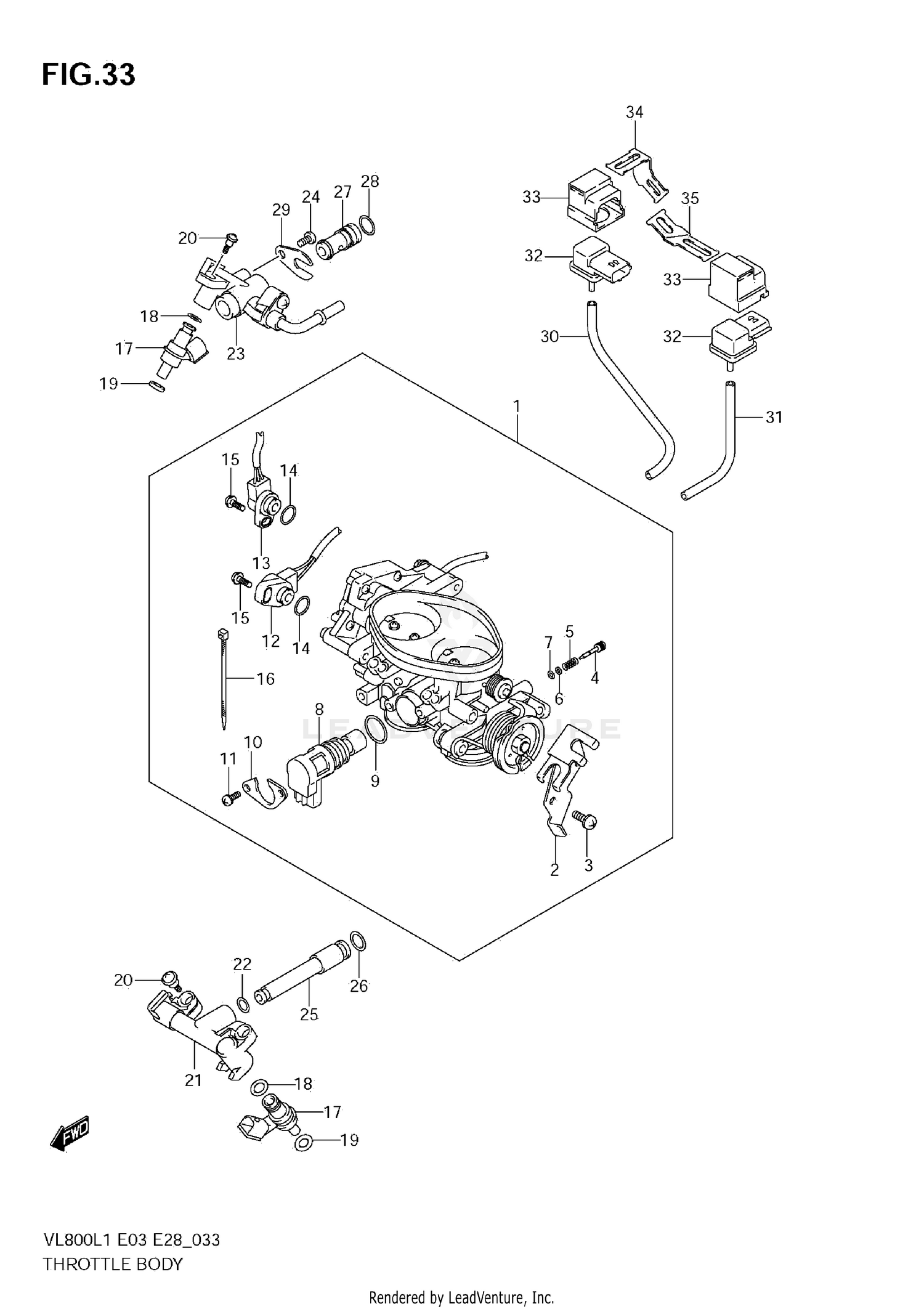

Throttle Body (vl800t E3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROT
13401-41F20
Superseded by 13401-41F23
|
$939.89 | ||
|
Unavailable |
|||
|
#2
PLATE, STAY
13565-41F20
|
$80.75 | ||
|
Unavailable |
|||
|
#3
SCREW
13601-21H00
|
$2.74 | ||
|
Unavailable |
|||
|
#4
SCREW
13269-18G00
|
$12.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
13271-43E00
|
$3.03 | ||
|
Unavailable |
|||
|
#6
WASHER
13291-26E00
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
13295-26E00
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
.VALVE ASSY,ISC
18117-15H11
Superseded by 18117-15H12
|
$388.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING
18119-05H00
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, STAY
13428-15H00
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
13605-15H00
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SENSOR ASSY,THROTTLE NO.1
13580-40F20
Superseded by 13580-40F22
|
$261.93 | ||
|
Unavailable |
|||
|
#13
.SENSOR ASSY,THROTTLESUB
13580-41F00
Superseded by 13580-41F02
|
$146.88 | ||
|
Unavailable |
|||
|
#14
O RING
13575-40F00
|
$5.19 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
13605-40F00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
INJECTOR ASSY
15710-26GA0
|
$331.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O-RING
15721-21H00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
.RING,SEAL
15722-21H00
|
$13.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
13602-34F50
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE SET, FUEL FR
13473-41FA0
|
$83.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
.O-RING
15721-24F00
|
$11.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIPE SET, FUEL RR
13473-41FB0
|
$112.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW
13602-10F10
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT
13473-41FC0
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING
15721-10G00
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLUG, STRAIGHT
13474-41F20
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING
15721-41F20
|
$24.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE
13475-41F20
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE
13683-41FA0
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
TUBE,RUBBER
13683-41FD0
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#32
SENSOR, PRESSURE
18591-42F00
|
$379.32 | ||
|
Available to order. Add to View Price |
|||
|
#33
HOLDER
18595-42F20
|
$10.68 | ||
|
Unavailable |
|||
|
#34
BRACKET, BOOST SENSOR FR
18598-41F00
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, BOOST SENSOR RR
18599-39G00
|
$3.08 | ||
|
Unavailable |
|||
