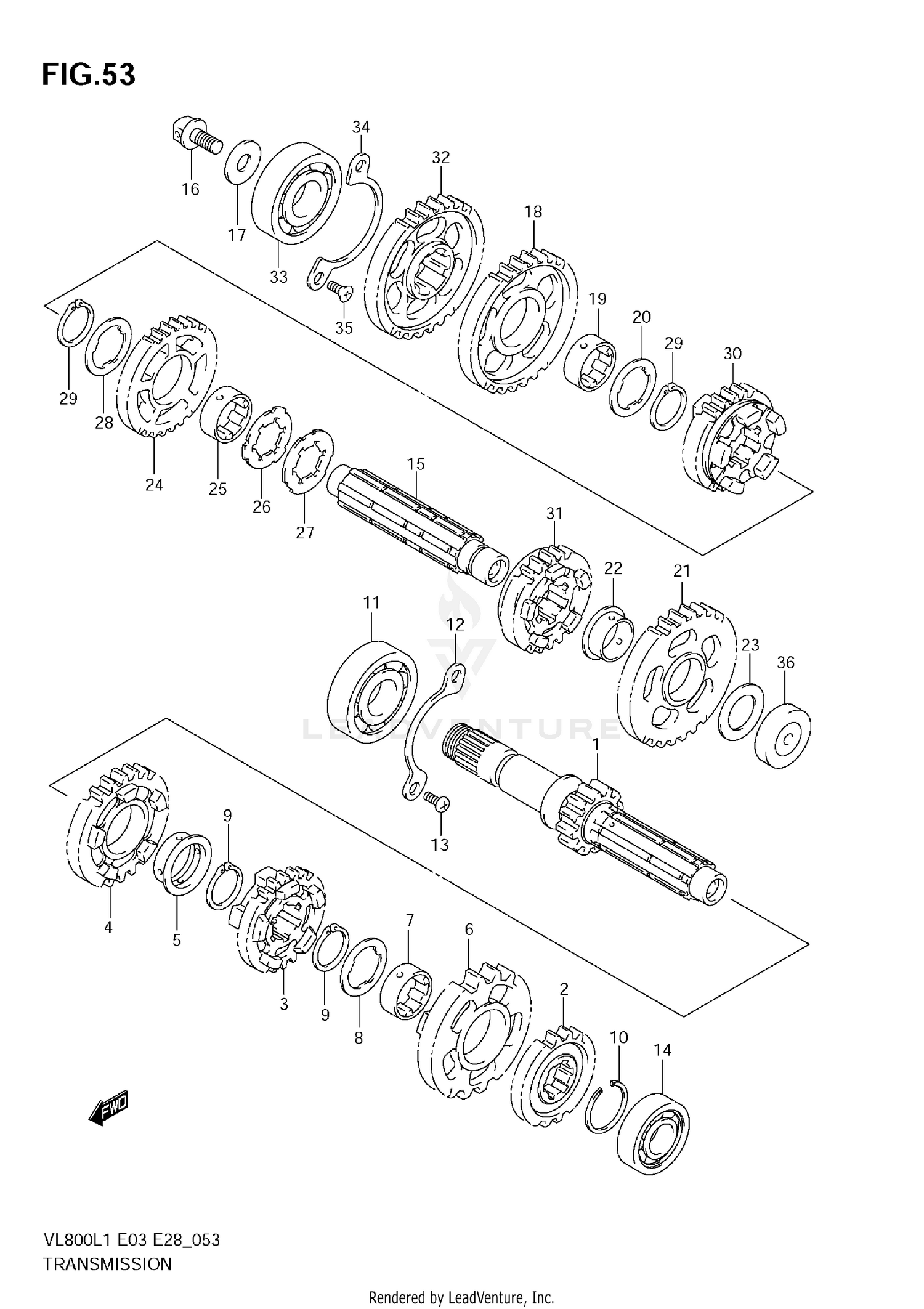

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER
24120-41F00
|
$276.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-38A01
|
$119.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD DRIVE (NT:22)
24231-41F00
|
$111.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 4TH DRIVE (NT:25)
24241-41F00
|
$181.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, 4TH
24322-19F00
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 5TH DRIVE (NT:27)
24251-41F00
|
$159.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSH,6TH DRIVE GEAR
24252-38A10
|
$19.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK WASHER
09167-25016
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING,SNAP
09380-25003
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09380-25014
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, RH (25X62X17)
09262-25080
|
$40.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER
24741-38A00
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X12)
09125-06110
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BEARING, LH (20X47X14)
09262-20139
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRIVE SHAFT
24131-38A03
|
$129.72 | ||
|
Available to order. Add to View Price |
|||
|
#16
NOZZLE,DRIVE SHAFT
24135-38A02
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08211-10305
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 1ST DRIVEN (NT:32)
24311-41F00
|
$164.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH
24332-07A00
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (28.1X38X1.0)
09167-28001
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 2ND DRIVEN (NT:31)
24321-41F00
|
$147.23 | ||
|
Available to order. Add to View Price |
|||
|
#22
BUSH
09301-22002
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (20X34X1)
09181-20251
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 3RD DRIVEN (NT:27)
24331-41F00
|
$144.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
BUSH
24332-07A00
|
$14.87 | ||
|
Unavailable |
|||
|
#26
LOCK WASHER, RH
09169-28001
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK WASHER, LH
09167-28002
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (28.1X38X1.0)
09167-28001
|
$4.83 | ||
|
Unavailable |
|||
|
#29
CIRCLIP
08331-3128A
Superseded by 08331-31289
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, 4TH DRIVEN (NT:25)
24341-41F00
|
$181.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, 5TH DRIVEN (NT:22)
24351-41F00
|
$84.68 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, REDUCTION DRIVE (NT:30)
24621-38A00
|
$108.13 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RH (20X52X15)
09262-20073
|
$28.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
RETAINER
24751-38A00
|
$4.45 | ||
|
Unavailable |
|||
|
#35
SCREW (6X12)
09126-06011
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, LH (20X52X15)
09262-20080
|
$40.72 | ||
|
Available to order. Add to View Price |
|||
