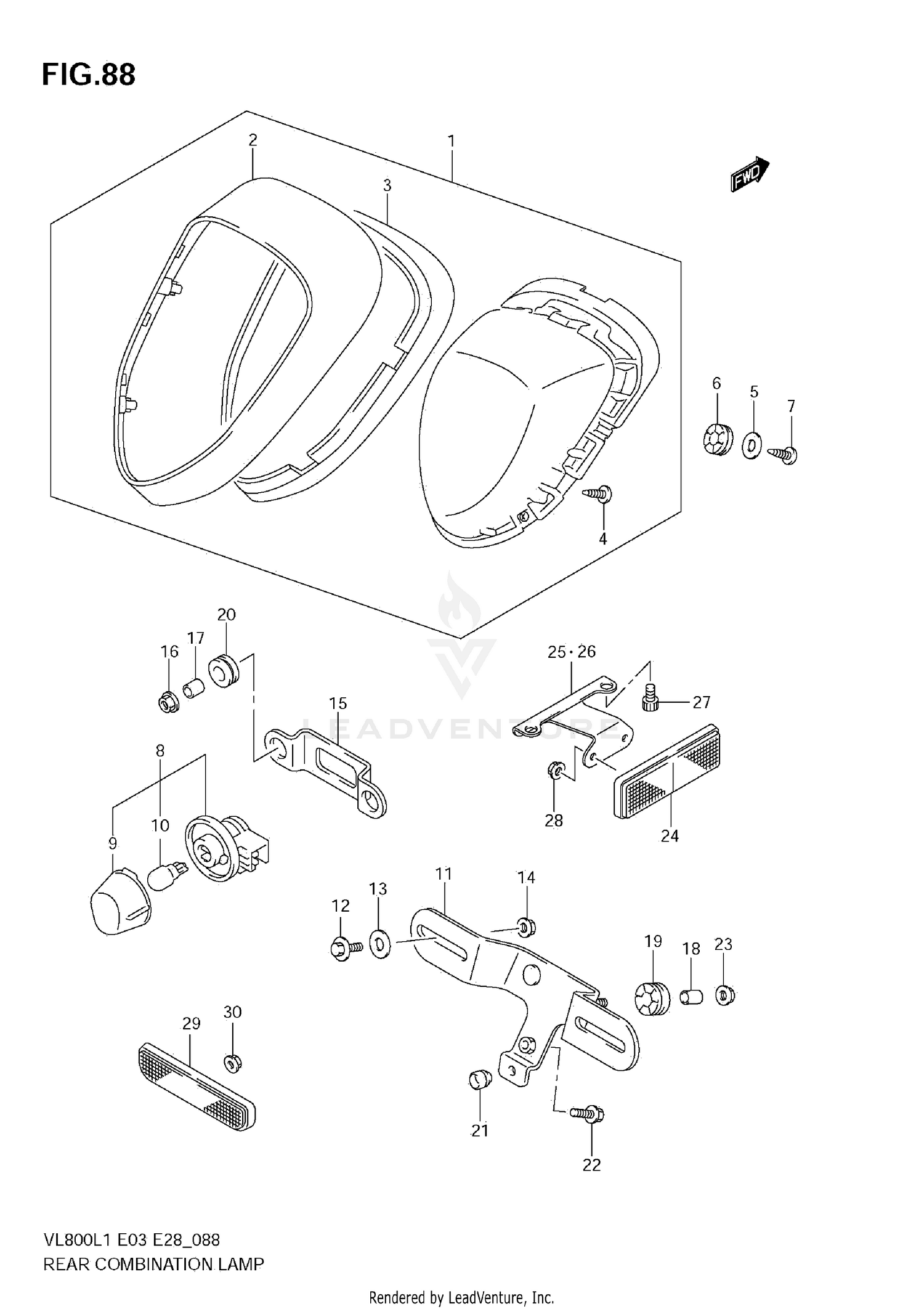

Rear Combination Lamp (vl800 E3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,REAR
35710-43H00
Superseded by 35710-43HC0
|
$537.31 | ||
|
Unavailable |
|||
|
#2
COVER
35717-43H00
|
$202.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER
35713-43H00
|
$35.68 | ||
|
Unavailable |
|||
|
#4
SCREW (3X12)
35623-41400
|
$2.07 | ||
|
Unavailable |
|||
|
#5
WASHER (5.5X20X1.2)
09160-05501
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION, REAR COMB
35765-43H00
|
$3.48 | ||
|
Unavailable |
|||
|
#7
SCREW, REAR COMB
03541-0512A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, LICENSE
35910-14F01
|
$32.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
LENS
35912-14F11
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BULB (12V5W)
09471-12216
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, LICENSE PLATE
35927-43H30
|
$29.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (6X16)
09116-06168
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (6.5X20X1.2)
09160-06077
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LICENSE PLATE
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET, LICENSE LAMP
35928-43H00
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, LICENSE BKT
09159-05049
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER (5.5X9.5X11.5)
09180-05054
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER (6.5X10X12)
09180-06290
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
CUSHION, LICENSE PLATE BRACKET
09320-10051
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-10054
Superseded by 09320-10073
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION,LICENSE PLATE
09321-06013
Superseded by 09321-06036
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, LICENSE PLATE BRACKET
01550-0625A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, LICENSE PLATE BRACKET
08316-1006A
|
$2.64 | ||
|
Unavailable |
|||
|
#24
REFLECTOR ASSY, RR SIDE
35970-07F01
|
$25.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, RR SIDE RR, RH
35975-43H00
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, RR SIDE RR, LH
35976-43H00
|
$11.84 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, RR SIDE RR BRACKET
07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, RR SIDE RR
08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
REFLECTOR ASSY, RR
35970-05H00
|
$31.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, REAR RR
08316-1005A
|
$2.64 | ||
|
Unavailable |
|||
