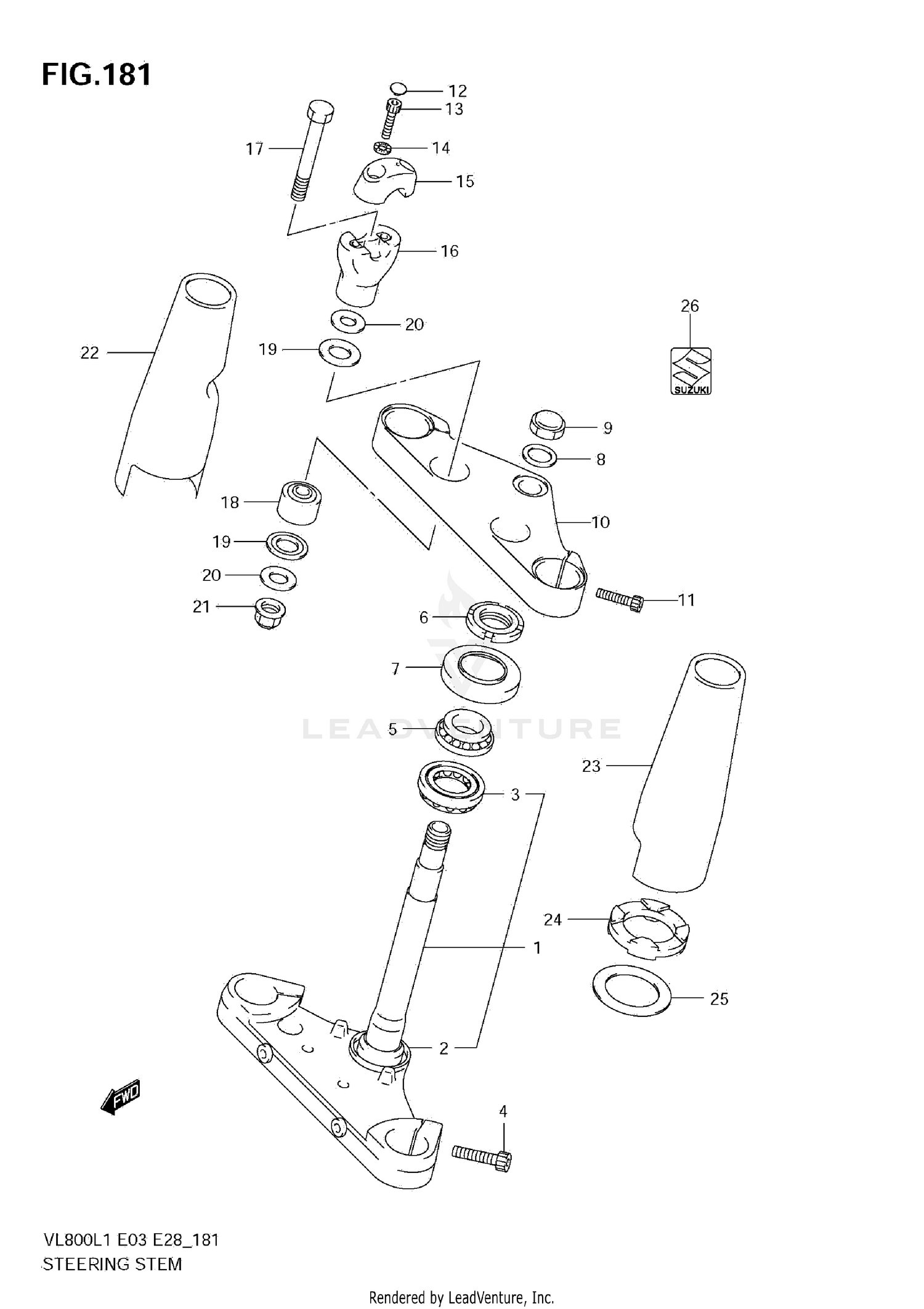

Steering Stem (vl800t E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEM, STEERING
51410-41F50
|
$622.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
.SEAL,STEERING LOWER (30.1X56
51644-12C00
|
$11.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (30X55X17)
09267-30010
|
$58.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STEM
07130-1030B
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING (25X47X15)
09267-25009
|
$54.81 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,STEERING STEM (25X44X10)
51631-28000
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL,DUST
51643-40502
Superseded by 51643-40503
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, STEM
51356-24B01
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, STEM
51353-24B00
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
HEAD, STEERING STEM
51311-41F40
|
$457.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
51321-06G00
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BOLT
09250-06011
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
51321-10F00
Superseded by 07130-08307
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09164-08015
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, HANDLE UPPER
56211-41F20
|
$84.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, HANDLE LOWER
56221-41F20
|
$139.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, STAY
51226-41F20
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, RUBBER
56240-41F20
|
$44.15 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT RUBBER
56245-41F20
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
51354-41F20
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
56246-41F20
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER,UPPER RH
51530-41F20
|
$299.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER,UPPER LH
51540-41F20
|
$299.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT, RUBBER
51468-10F00
|
$23.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER
51467-10F00
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
EMBLEM, S
68281-35F00
|
$20.89 | ||
|
Available to order. Add to View Price |
|||
