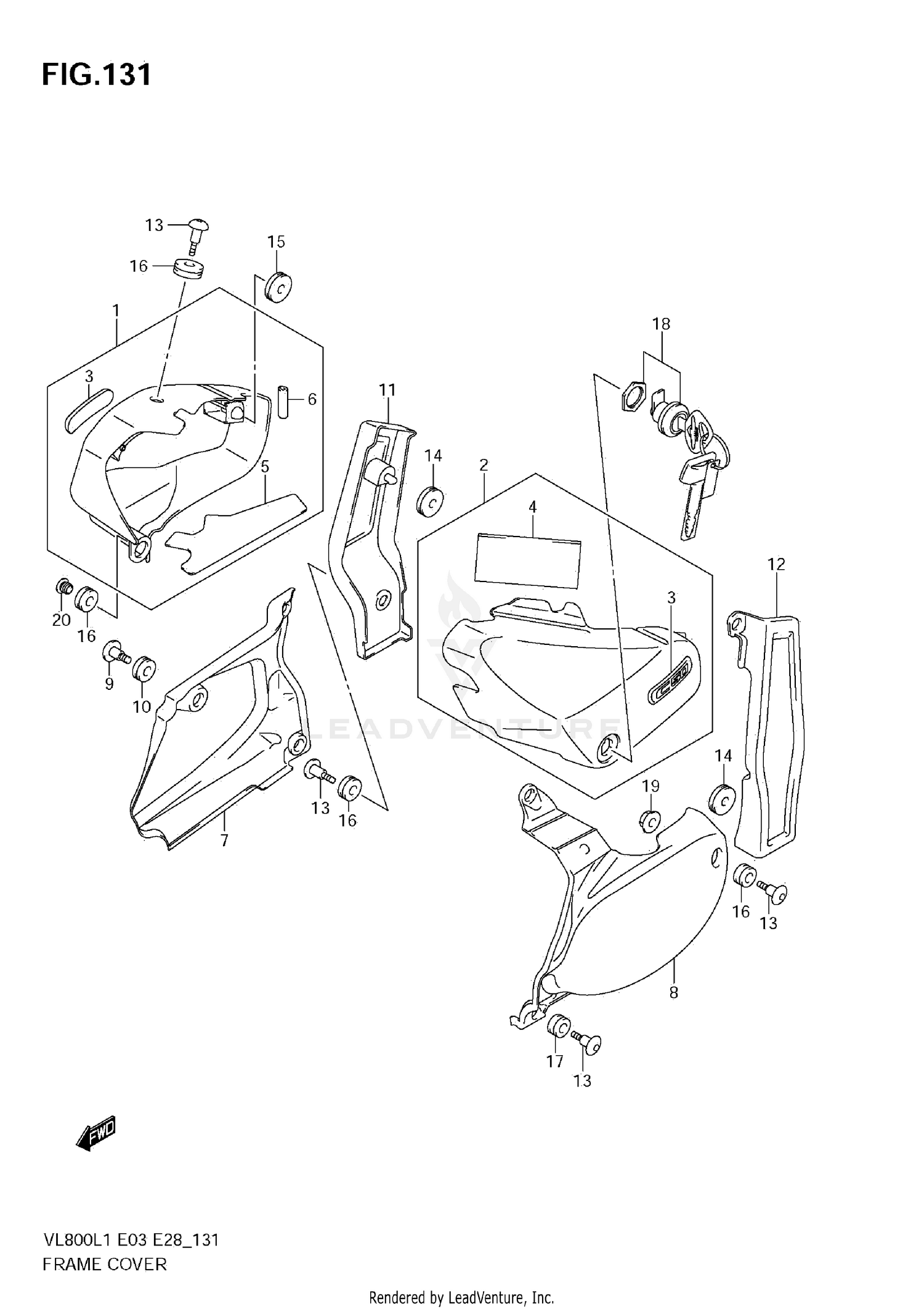

Frame Cover (vl800t E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (SILVER)
47110-41FN0-YUE
|
$240.57 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,SIDE,R(BL
47110-41FN0-YVB
Superseded by 47110-43H01-YVB
|
$260.46 | ||
|
Unavailable |
|||
|
#2
COVER,SIDE LH (
47210-41FM0-YUE
Superseded by 47210-41FM1-YUE
|
$296.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FRAME LH (BLACK)
47210-41FM0-YVB
Superseded by 47210-41FM1-YVB
|
$223.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM, "C50T"
68131-41F50
Superseded by 68131-41F51
|
$34.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, LH
47217-41F00
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD, FRAME COVER RH
47166-41F00
|
$19.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
MOLDING, RH
94631-35F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, SIDE LOWER RH
47130-41F00
|
$267.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SIDE LOWER LH
47231-41F00
|
$412.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,SIDE COVER LOWER RH
47133-43H00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (8.5X20X8)
09320-08021
Superseded by 09320-08510
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SIDE REAR RH (BLACK)
47141-41F01-019
|
$148.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, SIDE REAR LH (BLACK)
47241-41F00-019
|
$148.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (6X20)
09139-06126
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-08018
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-08028
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CUSHION
09320-09501
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-09045
Superseded by 09320-09062
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK SET,COVER
95700-07860
Superseded by 95700-07861
|
$93.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, SIDE LOWER LH
08316-1006B
|
$3.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CAP
09250-09001
Superseded by 09250-09008
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
