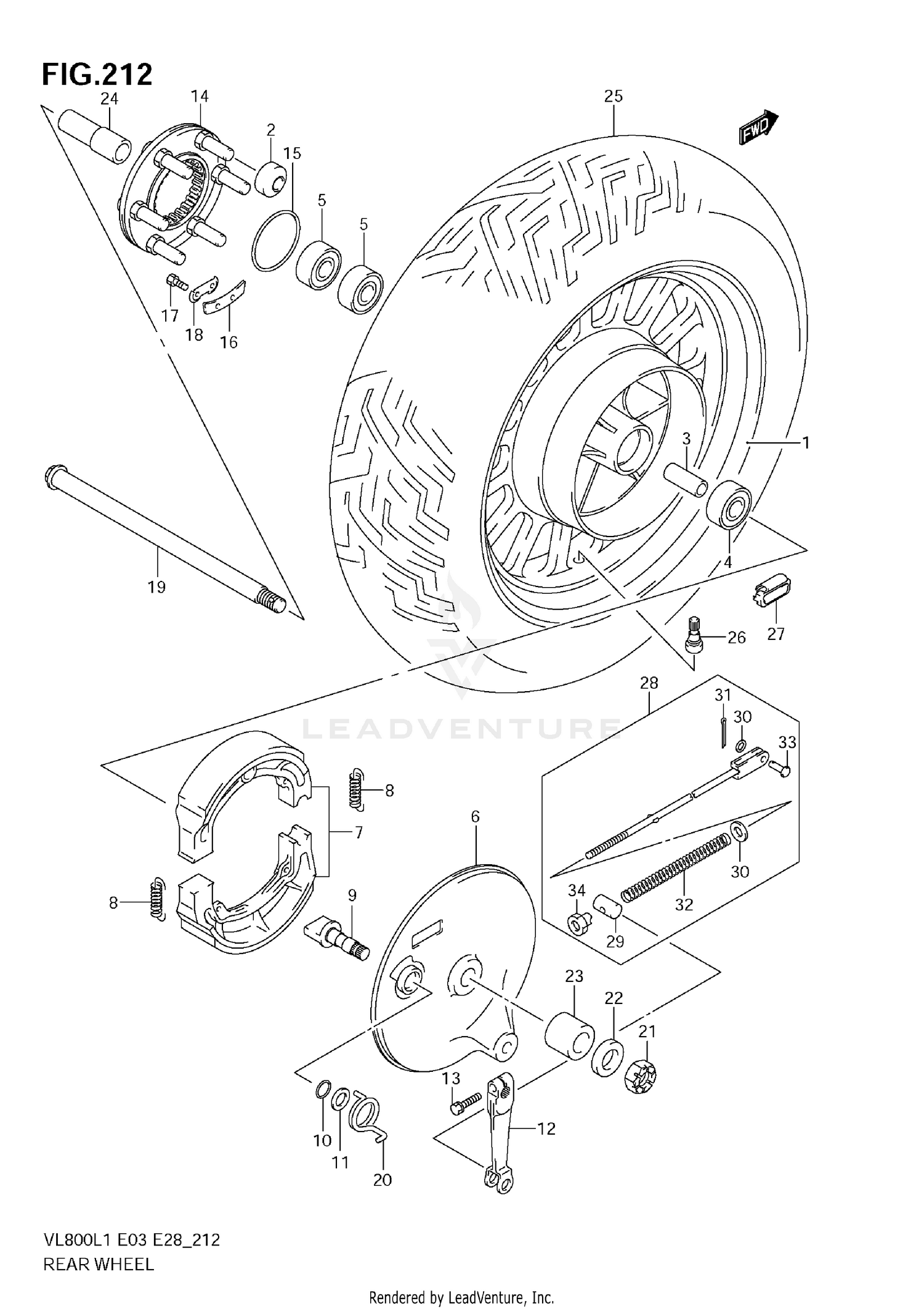

Rear Wheel (vl800c E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (15M/CXMT4.00)
64150-41F00-20H
|
$1,516.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING (12X41X34)
09319-12019
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, RR HUB
09180-17112
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
08123-63037
Superseded by 08123-6303B
|
$19.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, LH
08143-63037
|
$27.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL, REAR BRAKE ANCHOR
64210-38A70-20H
|
$325.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE SET, BRAKE
64400-38820
|
$59.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHOE
55420-30000
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM, BRAKE
64441-38A20
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:1.9,ID:14.5)
09280-15003
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (15.5X24X1.6)
09160-15048
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, BRAKE CAM
64451-38A01
|
$62.30 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01570-06257
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, HUB DRIVEN
64680-45113
|
$294.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:2.1,ID:65)
09280-65003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST
64677-45110
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X16)
09119-06049
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09169-06030
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, REAR (L:302)
64711-19F00
|
$91.07 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, CAM
09448-33006
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-2116A
|
$9.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (17X30X3.2)
09160-17050
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER,REAR AXLE RH
64741-41F00
|
$24.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER,REAR AXLE LH
64772-34201
|
$24.92 | ||
|
Available to order. Add to View Price |
|||
|
#25
TIRE,RR(170/80
65110-41F20
Superseded by 65110-41F21
|
$335.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BALANCER, WHEEL NO.1
43222-73H10
|
$6.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BALANCER, WHEEL NO.2
43224-73H10
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER, WHEEL NO.3
43226-73H10
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
ROD ASSY, REAR BRAKE
43300-41F00
|
$35.51 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, REAR BRAKE ROD
09209-13018
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER
08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, COTTER
04111-2015A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING
09440-09004
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN
09200-06013
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
09150-06010
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
