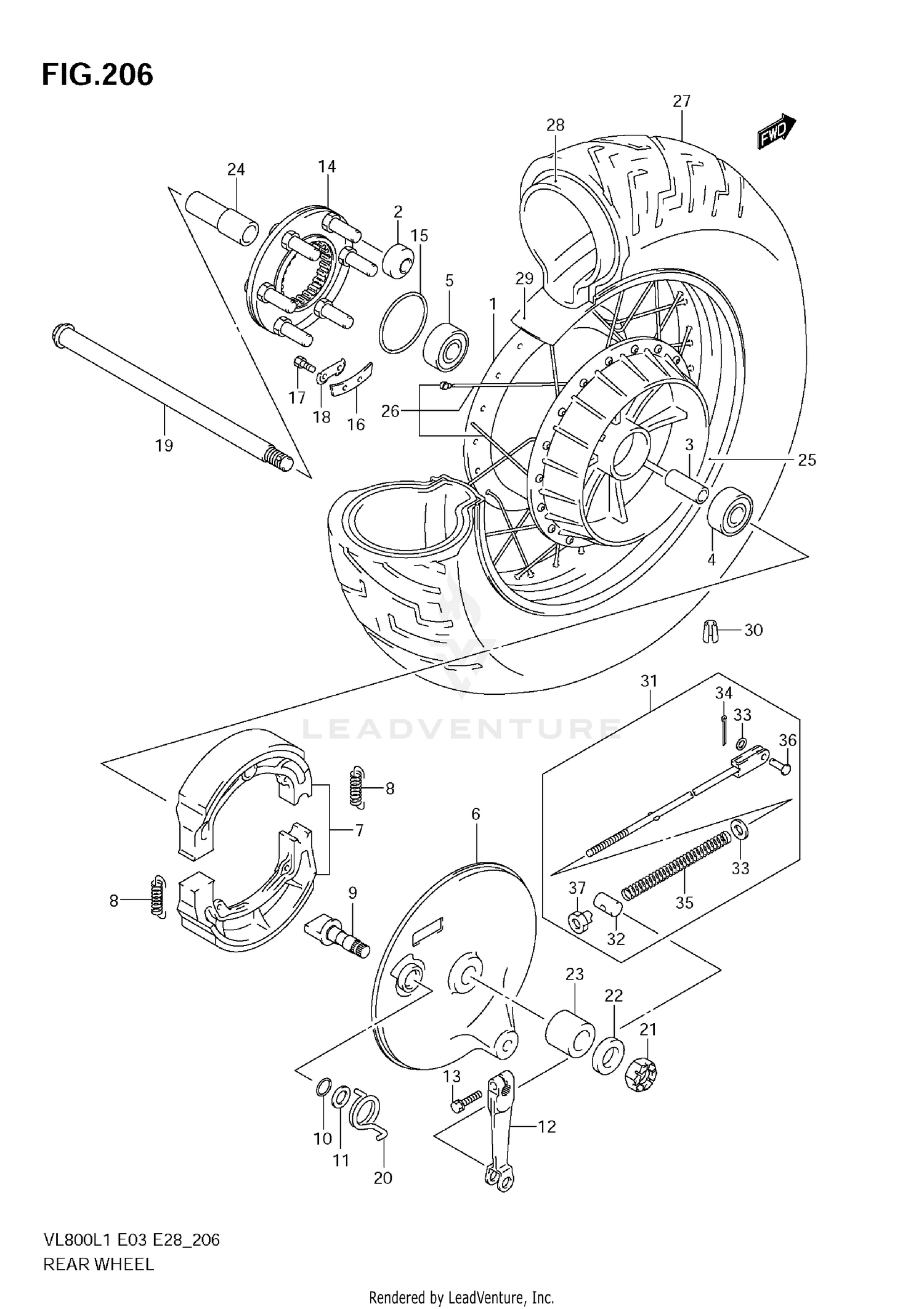

Rear Wheel (vl800 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL
64110-41F20
|
$594.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSHING (12X41X34)
09319-12019
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, RR HUB (17.5X25X80)
09180-17092
|
$27.54 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
08123-63037
Superseded by 08123-6303B
|
$19.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, LH
08143-63037
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL, REAR BRAKE ANCHOR
64210-38A70-20H
|
$338.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE SET, BRAKE
64400-38820
|
$62.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHOE
55420-30000
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM, BRAKE
64441-38A20
|
$34.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:1.9,ID:14.5)
09280-15003
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (15.5X24X1.6)
09160-15048
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, BRAKE CAM
64451-38A01
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01570-06257
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, HUB DRIVEN
64680-45113
|
$306.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:2.1,ID:65)
09280-65003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST
64677-45110
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X16)
09119-06049
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09169-06030
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, REAR (L:302)
64711-19F00
|
$95.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, CAM
09448-33006
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-2116A
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (17X30X3.2)
09160-17050
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER,REAR AXLE RH
64741-41F00
|
$25.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER,REAR AXLE LH
64772-34201
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIM, WHEEL, 15M/CXMT4.00 FE
65311-41F00
|
$401.63 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPOKE SET, REAR WHEEL
65320-41F00
|
$168.03 | ||
|
Available to order. Add to View Price |
|||
|
#27
TIRE (170/80-15M/C 77H)
65100-41F00
Superseded by 65100-41F01
|
$253.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
TUBE ASSY,WHEEL INNER
65200-41F00
Superseded by 65200-41F01
|
$64.01 | ||
|
Unavailable |
|||
|
#29
PROTECTOR, WHEEL INNER TUBE
65261-41F00
Superseded by 65261-41F10
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER,WHEEL (15G)
55411-26G00
|
$8.74 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER,WHEEL (30G)
55413-41F00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#31
ROD ASSY, REAR BRAKE
43300-41F00
|
$37.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, REAR BRAKE ROD
09209-13018
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
08322-0106B
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, COTTER
04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING
09440-09004
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN
09200-06013
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
09150-06010
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
