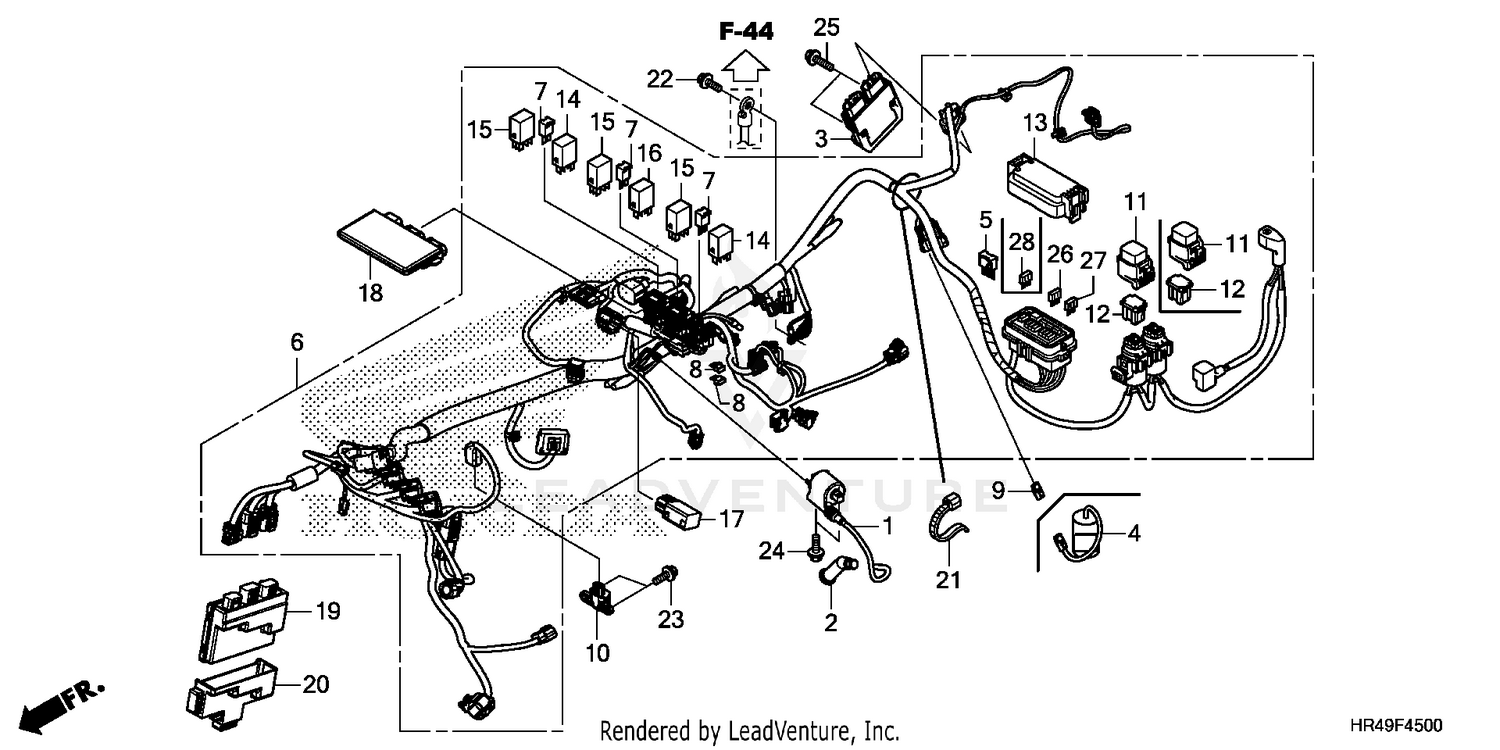

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION (R)
30540-MJP-G51
|
$89.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-MEA-671
|
$32.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE HARNESS
32100-HR4-C90
|
$2,117.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONNECTOR, DIODE (2P)
32146-SH3-003
|
$22.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIODE (3P)
32146-SJ4-003
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, DUMMY (2P 090 F) (BLACK)
32605-HR6-A60
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., BANK ANGLE
35160-HR6-B01
|
$97.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER SET, FUSE
38230-HR4-A40
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, POWER (MICRO ISO 5P)
38502-MCS-G01
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#16
RELAY, POWER (MICRO ISO 4P)
38503-MCA-A61
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
RELAY, DIFFLOCK PULLBACK
38580-HR4-A21
|
$54.76 | ||
|
Available to order. Add to View Price |
|||
|
#18
PGM-FI UNIT
38770-HR4-C93
|
$289.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
EPS UNIT
39980-HR4-A52
|
$506.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION, EPS UNIT
39981-HN2-B70
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X22)
95701-06022-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#26
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUSE, MINI (20A)
98200-42000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#28
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
