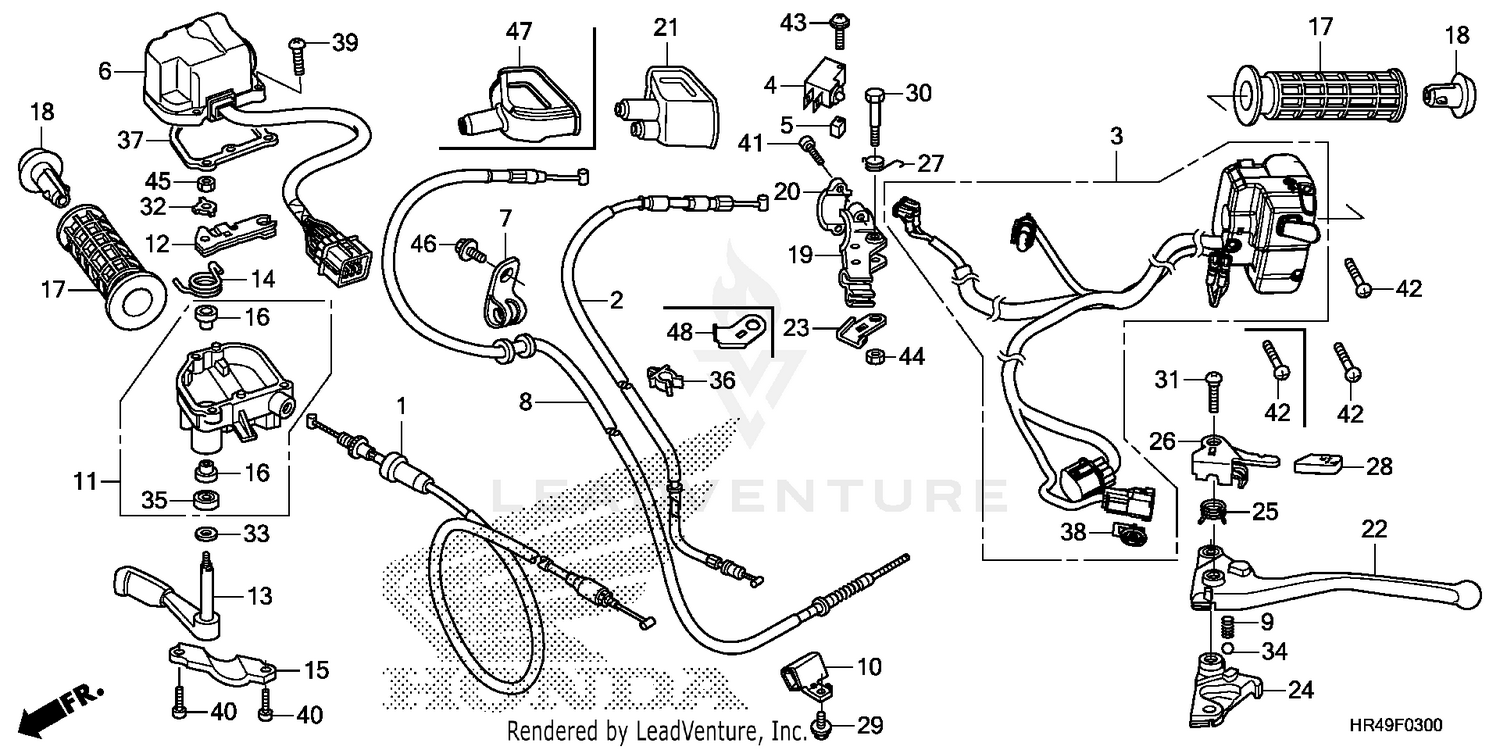

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, THROTTLE
17910-HR3-A21
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWITCH ASSY., ELECTRIC SHIFT
35140-HR4-A91
|
$151.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., FR. STOP (COO)
35340-HR0-305
|
$21.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH ASSY., FR. STOP (COO)
35340-ML4-005
Superseded by 35340-HR0-305
|
$21.85 | ||
|
Unavailable |
|||
|
#5
COLLAR, STOP SWITCH
35345-HF1-830
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., DIFFERENTIAL LOCK
35400-HR6-A61
|
$141.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, BRAKE CABLE
43452-HR3-A20
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, HAND BRAKE
43460-HR3-A21
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, BRAKE CABLE
50352-HR3-A20
|
$5.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE ASSY., THROTTLE LEVER
53143-HP5-L00
|
$123.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM, THROTTLE
53144-HA0-010
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, THROTTLE
53145-HA0-770
|
$29.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, THROTTLE RETURN
53146-HM8-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOLDER, THROTTLE CASE
53147-HM5-850
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, THROTTLE PIVOT
53148-HA0-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
GRIP, HANDLE
53165-HP5-600
|
$4.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
GUARD, HANDLE END
53167-HP5-600
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, BRAKE LEVER
53172-HR6-M00
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, LEVER BRACKET
53173-376-000
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
LEVER, L. HANDLEBAR
53178-HR6-M00
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, PARKING BRAKE LEVER
53191-HN8-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, PARKING BRAKE LOCK
53192-HR6-M00
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, RETURN LEVER
53193-HN8-000
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP, PARKING LEVER
53193-HA0-770
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SPECIAL (6MM)
90107-HR3-A20
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HANDLE LEVER PIVOT
90114-HN8-000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PARKING LEVER PIVOT
90115-HA6-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK (6MM)
90501-HA0-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER (9X20)
90504-HA0-000
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
DUST SEAL (9X16X5) (NOK)
91210-HA0-003
Superseded by 91210-HA0-004
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
DUST SEAL (9X16X5) (NOK)
91210-HA0-004
|
$4.93 | ||
|
Unavailable |
|||
|
#37
GASKET, THROTTLE CASE
91532-HA0-020
|
$7.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, PAN (4X16)
93500-04016-0G
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN (5X14)
93500-05014-0G
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, PAN (5X18)
93500-05018-0G
|
$0.53 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN (5X28)
93500-05028-0G
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW-WASHER (4X20)
93893-04020-07
|
$1.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
NUT, HEX. (6MM)
94001-06070-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
COVER, L. HANDLE LEVER
53177-HR6-M00
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOLDER, STOP SWITCH SUB CORD
53179-HR6-M00
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
