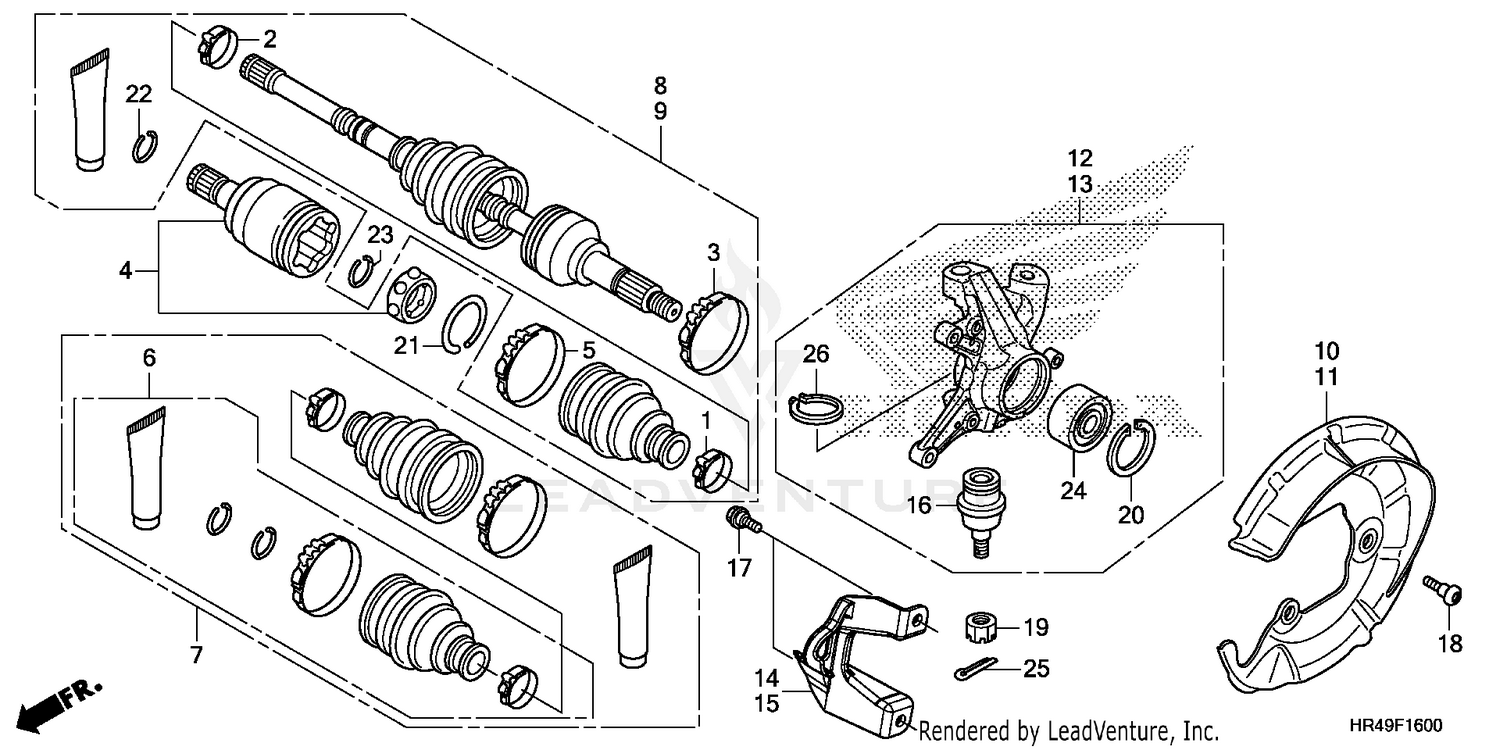

Front Knuckle@front Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND A, OUTBOARD
44215-HR3-W51
|
$54.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND A, OUTBOARD
44215-HR6-B01
|
$133.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND B, OUTBOARD
44216-HR6-B01
|
$73.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, INBOARD
44220-HR3-W51
|
$320.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND B, INBOARD
44226-HR3-W51
|
$81.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT SET, INBOARD
44230-HR3-W51
|
$173.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT SET
44240-HR6-B01
|
$185.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
DRIVESHAFT SET, R. FR.
44250-HR6-B01
|
$324.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
DRIVESHAFT SET, L. FR.
44350-HR6-B01
|
$354.24 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPLASH GUARD, R.
45255-HR3-A20
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPLASH GUARD, L.
45256-HR3-A20
|
$7.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNUCKLE ASSY., R. FR.
51200-HR3-A20
|
$142.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
KNUCKLE ASSY., L. FR.
51250-HR3-A20
|
$142.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, R. FR. OUTBOARD
51325-HR6-B00
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, L. FR. OUTBOARD
51326-HR6-B00
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT A, ARM BALL
51375-HP5-601
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (6X15)
90114-HP0-A00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP, SPECIAL (INNER) (56MM)
90651-HR3-A20
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING A, INBOARD SNAP
90651-HR3-W51
|
$104.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING B, INBOARD SNAP
90652-HR3-W51
|
$37.29 | ||
|
Available to order. Add to View Price |
|||
|
#23
RING, OUTBOARD SNAP
90653-HR3-W51
|
$37.29 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, ANGULAR BALL (27X55X32)
91051-HR3-A21
|
$95.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (34MM)
94514-34000
|
$1.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
