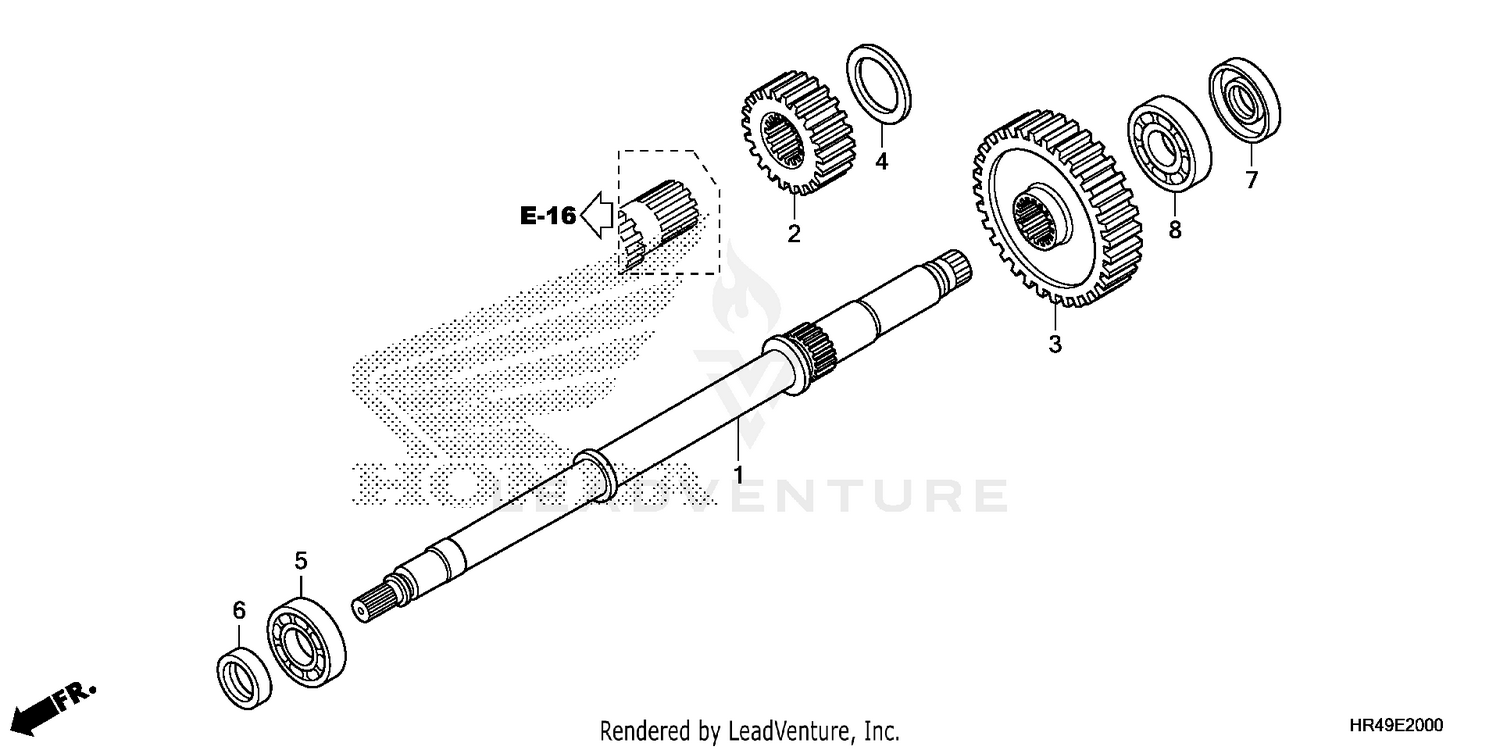

Final Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, FINAL
23611-HR3-A40
|
$103.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, FINAL DRIVE (16T)
23621-HR0-F00
|
$35.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, FINAL DRIVEN (30T)
23631-HR0-F00
|
$85.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER C, THRUST (25MM)
90459-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, RADIAL BALL (22X47X14)
91006-HP5-601
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (22X35X7)
91202-HR0-F01
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL (25X45X7)
91204-HR0-F01
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (6205)
96100-62050-00
|
$22.58 | ||
|
Available to order. Add to View Price |
|||
