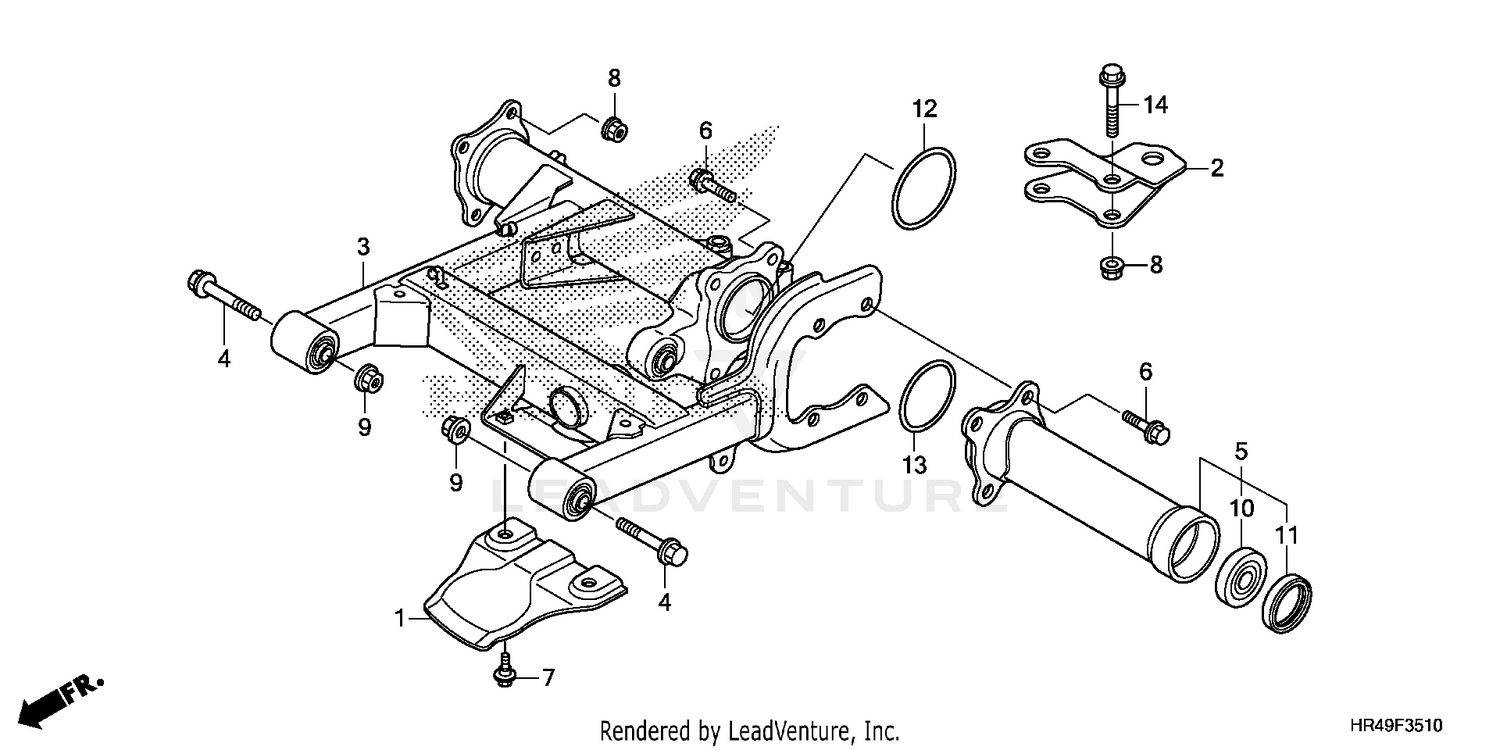

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUARD, YOKE JOINT
50359-HR0-F00
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
HITCH, TRAILER
50810-HN5-670
|
$87.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
SWINGARM ASSY., RR.
52100-HR3-A20
|
$232.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SWINGARM PIVOT (12X70)
52101-HR3-A20
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE ASSY., L. HOUSING
52300-HR3-W50
|
$133.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (10X44)
90101-HR3-A20
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SELF-LOCK (12MM)
90305-HC4-000
|
$5.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (32X58X13UU) (ZHEJIANG)
91051-HR3-W51
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (42X58X10)
91255-HR0-F01
|
$21.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (75X3.2) (NOK)
91320-HM7-702
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (66MM)
91351-881-000
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
