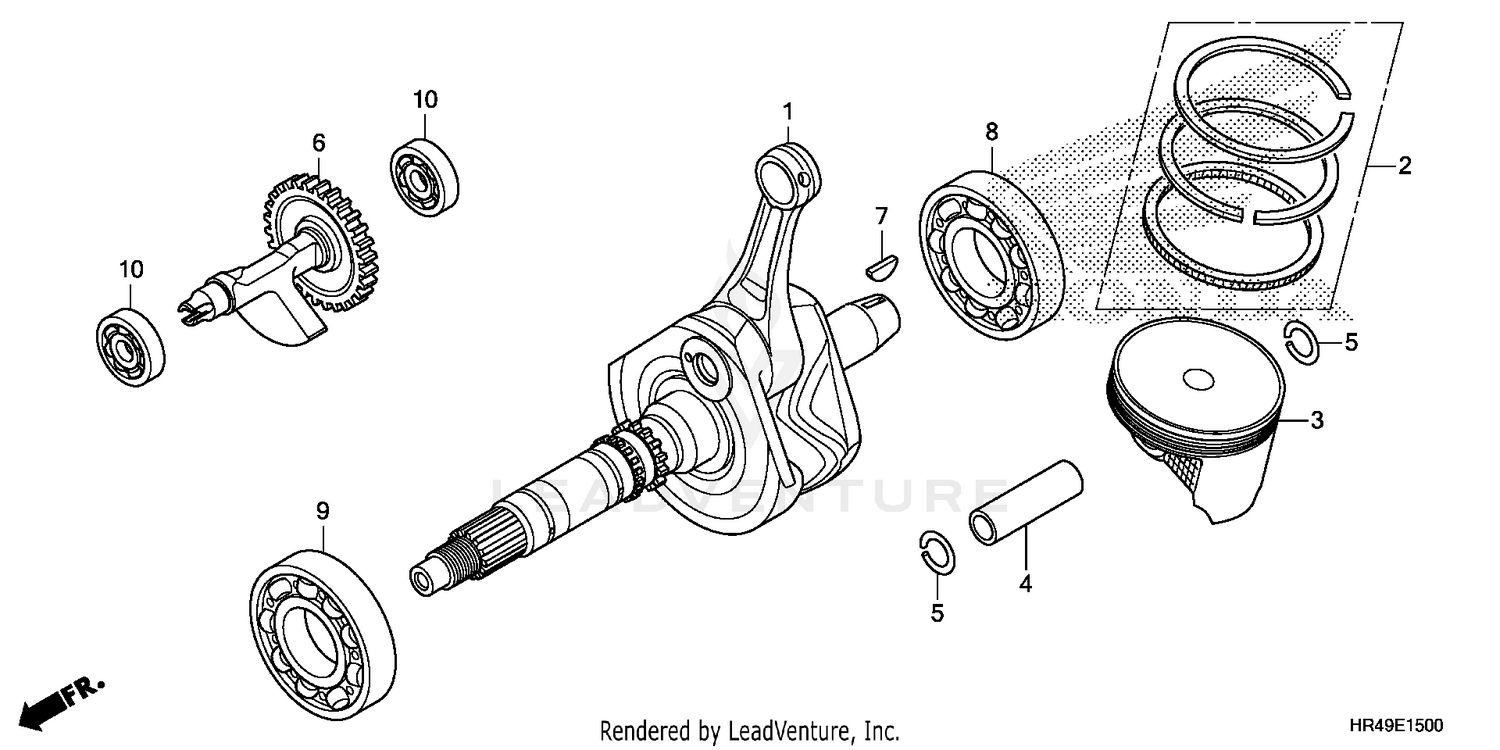

Crankshaft@piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-HR3-A40
Superseded by 13000-HR5-CC0
|
$793.11 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD)
13010-HR6-305
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (O.S. 0.25)
13011-HR6-305
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (O.S. 0.50)
13012-HR6-305
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (STD)
13101-HR6-B00
|
$178.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (O.S. 0.25)
13102-HR6-305
|
$180.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
PISTON (O.S. 0.50)
13103-HR6-305
|
$180.58 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, PISTON
13111-HP5-600
|
$27.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, PISTON PIN (19MM)
13112-MAT-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, BALANCER (32T)
13420-HP5-600
|
$287.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
KEY, SPECIAL WOODRUFF (25X18)
90741-ZE2-000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL
91001-HM7-008
|
$68.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (40X85X18)
91002-HP5-601
|
$55.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING, RADIAL BALL (6203)
96100-62033-00
|
$12.11 | ||
|
Unavailable |
|||
