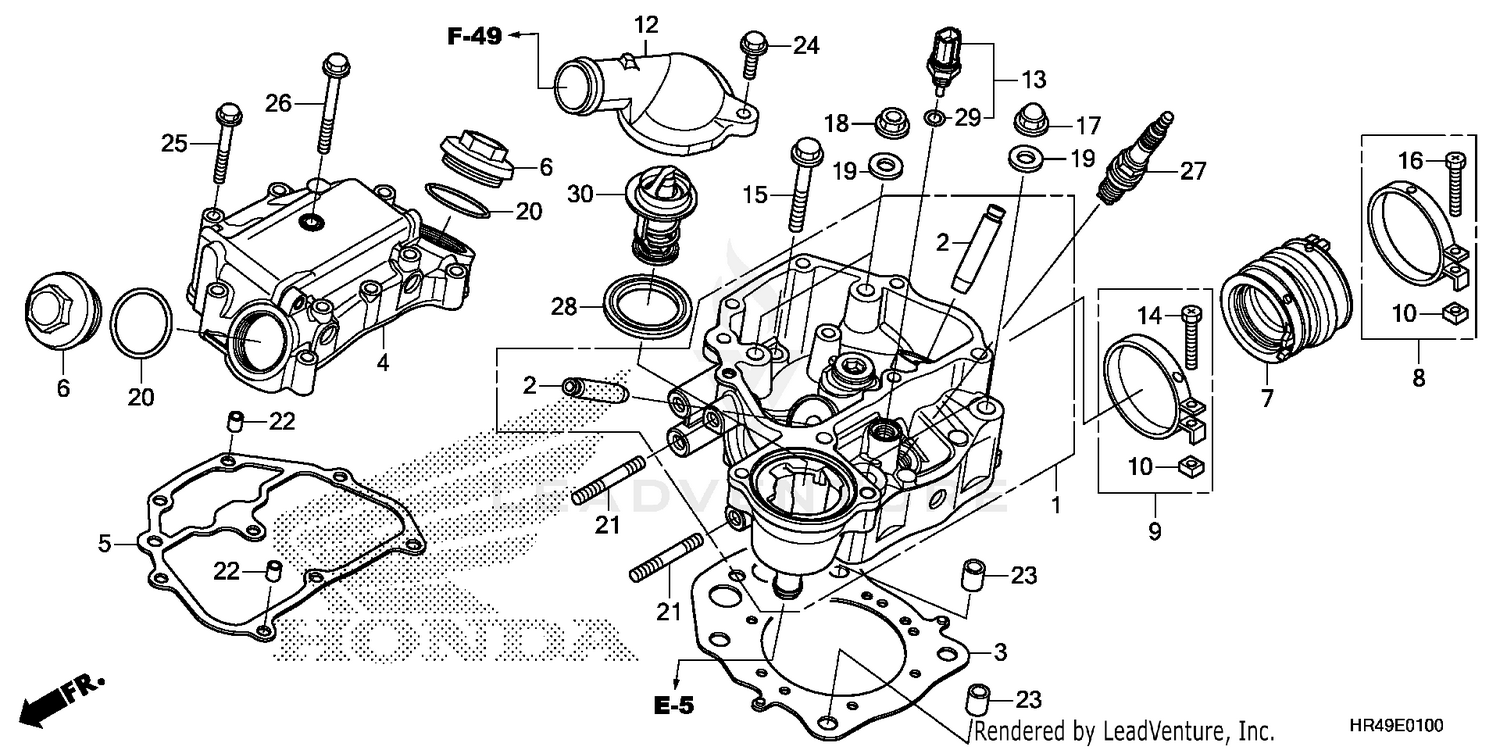

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD
12200-HR6-B00
|
$768.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-HP7-305
|
$42.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-HR6-B01
|
$26.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CYLINDER HEAD
12310-HP5-L10
|
$378.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, HEAD COVER
12315-HR0-F01
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, TAPPET ADJUSTING HOLE
12361-HP5-600
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
INSULATOR, THROTTLE BODY
16211-HR4-A40
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, INSULATOR
16217-MBW-J20
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, INSULATOR
16217-MEG-000
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SQUARE (5MM) (GQ51B C)
16222-MV4-300
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, THERMOSTAT
19321-HP5-L10
|
$301.92 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR ASSY., WATER TEMPERATURE
37870-KZR-601
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, RECESSED (5X32)
90005-MM4-000
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X55)
90009-PNA-000
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, RECESSED (5X28) (GQ51B C)
90023-MM5-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE CAP (10MM)
90201-HA0-000
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FLANGE (10MM)
90204-634-000
Superseded by 94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, FLANGE (10MM)
94030-10000-07
Superseded by 94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#18
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Unavailable |
|||
|
#19
WASHER (10MM)
90465-MM9-000
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (35.5X3) (NOK)
91301-428-003
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, STUD (8X25)
92900-08025-0B
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X65) (Honda Code 2552545)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPARK PLUG (BKR5E-11) (NGK)
98079-5514E
|
$3.47 | ||
|
Unavailable |
|||
|
#28
RUBBER, THERMOSTAT
19305-KV3-010
|
$7.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
O-RING (9.5X1.9) (PANASONIC)
91307-PLC-004
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#30
THERMOSTAT ASSY.
19300-HN8-013
|
$65.33 | ||
|
Available to order. Add to View Price |
|||
