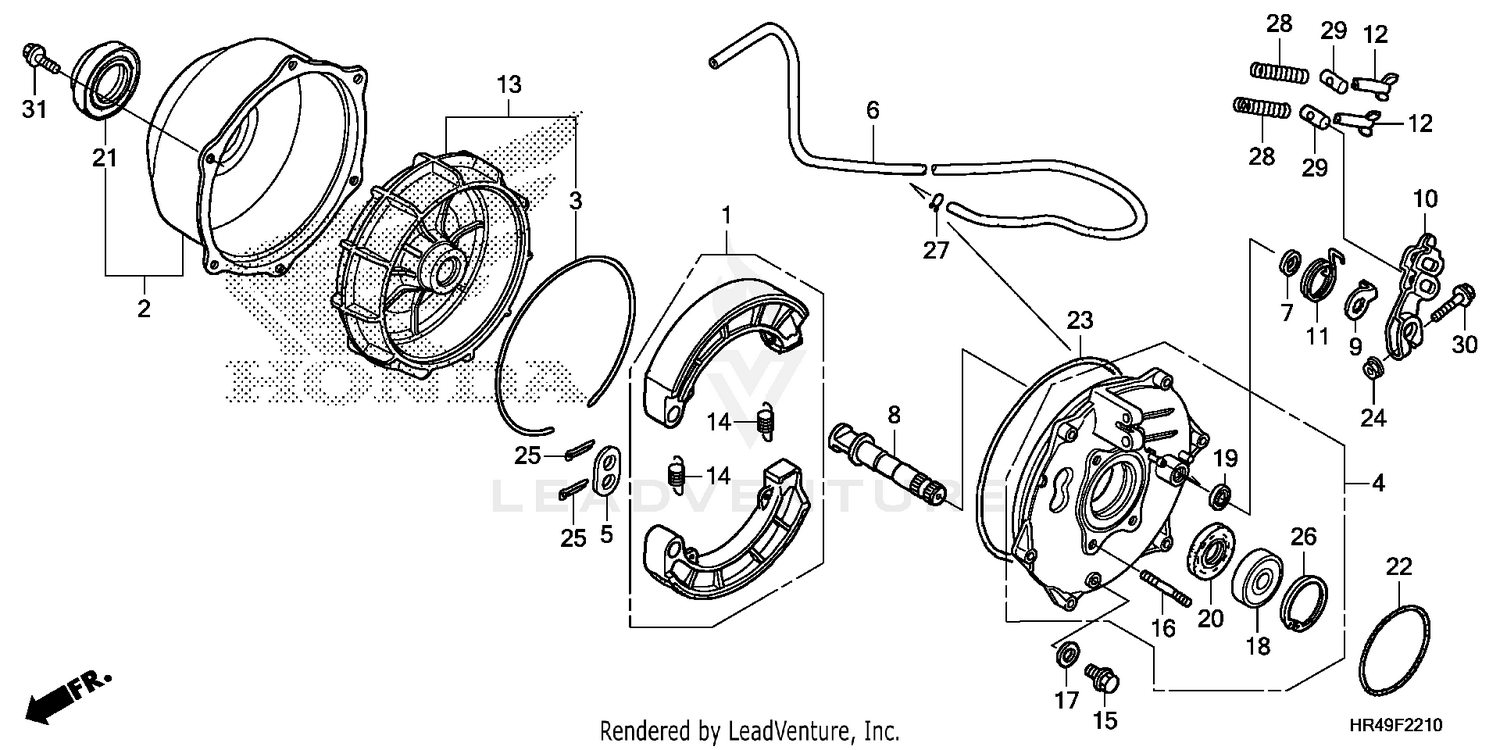

Rear Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOE SET, BRAKE (ASK)
06430-HN0-A20
|
$55.48 | ||
|
Available to order. Add to View Price |
|||
|
#1
SHOE SET, BRAKE (JB)
06430-HN0-A30
|
$70.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER ASSY., DRUM
40520-HP0-A00
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, DAMPER
42624-HN5-M00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
PANEL SET, RR. BRAKE
43010-HR3-A20
|
$130.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, ANCHOR PIN
43102-319-000
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE, BREATHER (3.5X1005)
43132-HR3-A20
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUST SEAL, BRAKE CAM
43134-300-000
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM, RR. BRAKE
43141-HA7-670
|
$43.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAM, RR. BRAKE
43141-HA7-671
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
INDICATOR, BRAKE
43145-HN5-M00
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, RR. BRAKE
43410-HN2-000
|
$27.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, RR. BRAKE ARM
43415-HM7-000
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, BRAKE ADJUSTING
43459-HM5-A10
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRUM ASSY., RR. BRAKE
43620-HR3-A20
|
$95.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, FR. BRAKE SHOE (RR.)
45133-329-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD (10X25)
90151-HA7-670
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (63/28U)
91002-KY0-981
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
DUST SEAL (44X58X8) (ARAI)
91251-HF7-003
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
DUST SEAL (41X76X19) (ARAI)
91253-HM7-003
|
$21.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (75X3.2) (NOK)
91320-HM7-702
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (199X3.1)
91355-HN2-003
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE (8MM) NUT, FLANGE (10MM)
94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#25
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#26
CIRCLIP (INNER) (68MM)
94520-68000
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X45)
95701-08045-00
|
$1.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
