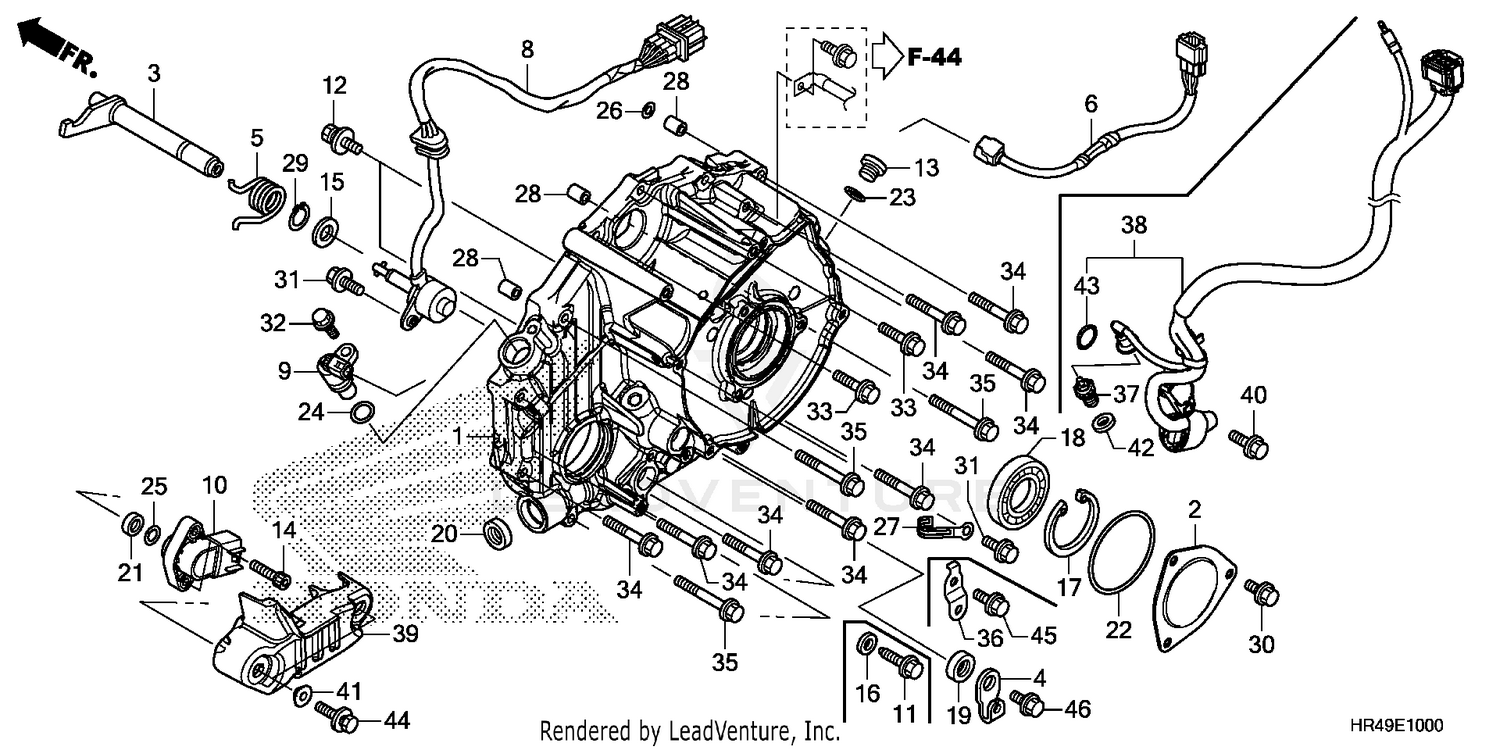

Rear Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. CRANKCASE
11340-HR4-A90
|
$256.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RR. COVER
11342-HP5-600
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS, ENGINE
32101-HR3-A20
|
$73.07 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY., ANGLE
38810-HR4-A91
|
$108.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP (14MM)
90084-KY2-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (5X20)
90116-HP5-600
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP (INNER) (42MM)
90602-GFZ-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6806)
91015-HR0-F21
|
$21.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (8X16X6)
91208-MS2-611
Superseded by 91254-792-003
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (8X16X6)
91208-689-005
Superseded by 91254-792-003
|
$3.42 | ||
|
Unavailable |
|||
|
#21
OIL SEAL (8X16X6)
91254-792-003
|
$3.42 | ||
|
Unavailable |
|||
|
#22
O-RING (58X3)
91301-HR3-A40
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING, ANGLE SENSOR
91308-HN0-A10
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (7.8X1.9) (NOK)
91313-MN5-004
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#36
STAY, HARNESS CLIP
32159-HR6-B00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
SWITCH, NEUTRAL
35600-HL4-003
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#38
SENSOR ASSY., ANGLE
38800-HR4-A91
|
$246.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
GUARD, ANGLE SENSOR
38805-HR4-A90
|
$48.24 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#41
COLLAR (6X4)
90127-KF0-770
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, OIL BOLT (10.2X15X1.4)
90545-MC0-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING (14.8X1.9)
91310-HR6-B00
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT-WASHER (6X20)
93404-06020-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
