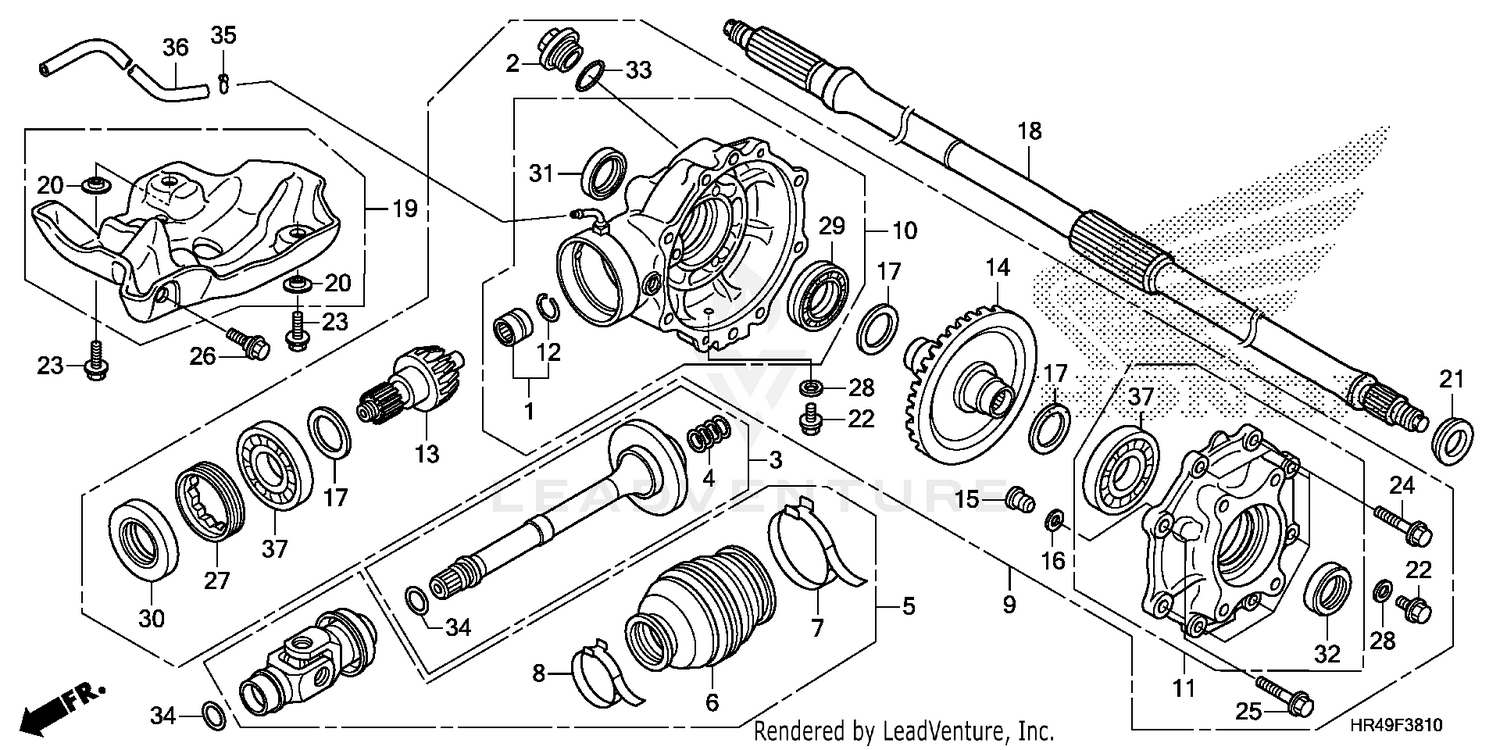

Rear Final Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HR3-WB0
Superseded by 06910-HR6-B00
|
$38.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
SHAFT, RR. PROPELLER
40200-HR3-A20
|
$56.09 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, SHAFT
40215-HR3-A20
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT ASSY., YOKE
40300-HR3-A20
|
$88.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, YOKE JOINT
40321-HR0-F00
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND A, YOKE JOINT BOOT
40322-HN8-000
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND B, YOKE JOINT BOOT
40323-HN8-000
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR ASSY., RR. FINAL
41300-HR3-WB0
|
$455.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE SUB-ASSY., FINAL GEAR
41311-HR3-WB0
|
$97.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER SUB-ASSY., FINAL GEAR
41320-HR3-A20
|
$139.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, RR. PINION (20T)
41421-HP5-600
|
$149.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, RR. RING (41T)
41431-HP0-A00
|
$260.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER A, RING GEAR (1.82)
41540-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER B, RING GEAR (1.88)
41541-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER C, RING GEAR (1.94)
41542-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER D, RING GEAR (2.00)
41543-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER E, RING GEAR (2.06)
41544-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER F, RING GEAR (2.12)
41545-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER G, RING GEAR (2.18)
41546-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER H, RING GEAR (2.24)
41547-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER I, RING GEAR (2.30)
41548-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT, RR. AXLE
42311-HR3-A20
|
$114.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, SKID
50355-HR3-A20
|
$20.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR, SKID PLATE
50358-HM8-B40
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
STOPPER, L. BEARING
52112-HA0-000
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X20)
90131-GW0-750
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (8X18)
90186-HM8-B40
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, RADIAL BALL (35X60X14) (ZHEJIANG)
91053-HR3-W51
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL (39X70X12)
91251-HR0-F01
|
$35.44 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (35X49X6) (NOK)
91252-HA0-004
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL (35X49X6) (NOK)
91252-HA0-004
|
$16.25 | ||
|
Unavailable |
|||
|
#33
O-RING (30.8MM) (Honda Code 0001065)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
O-RING (21.8X2.4) (Honda Code 3793031)
91355-759-003
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, TUBE (B6.5)
95002-02650
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#36
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BEARING, RADIAL BALL (6007)
96100-60073-00
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
