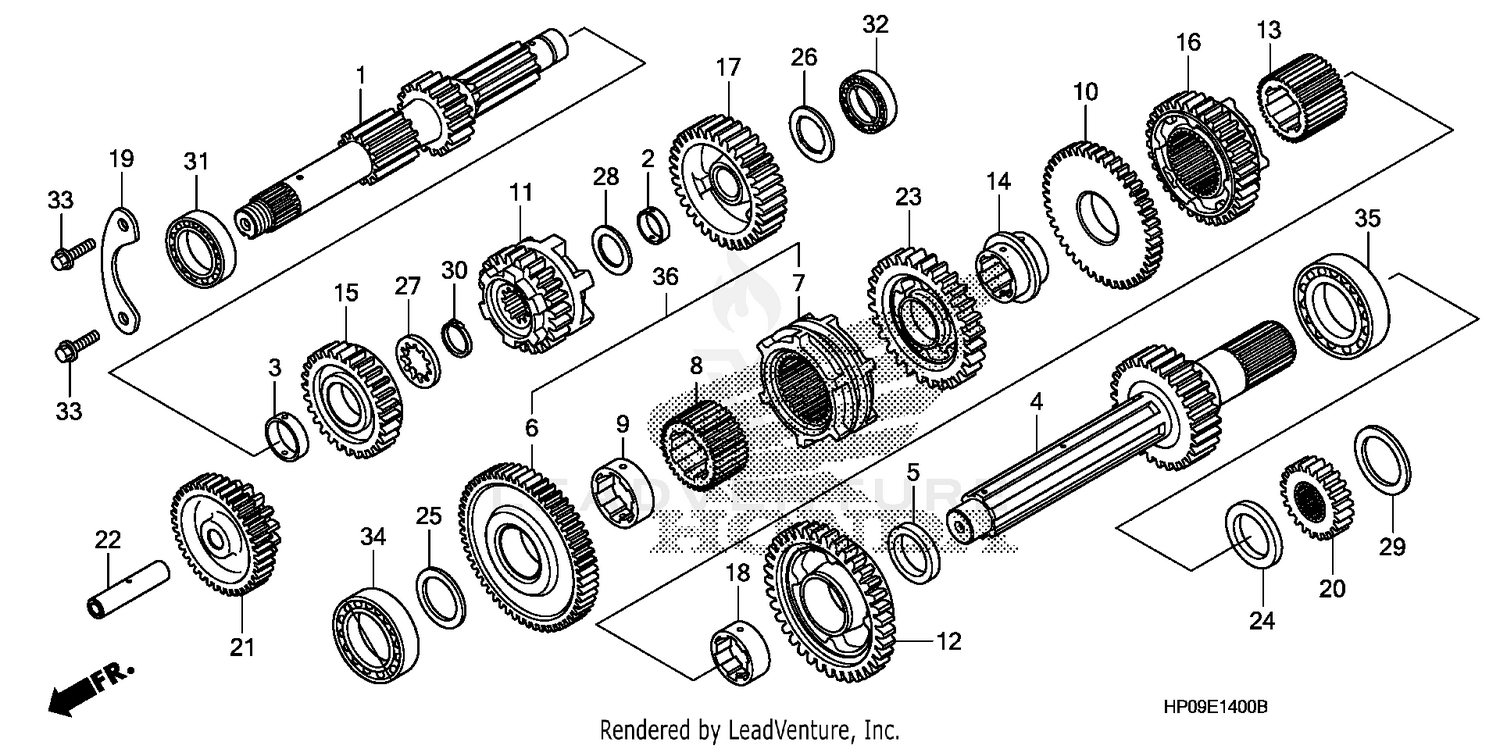

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (13T/18T)
23211-HP0-A00
|
$190.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
BUSH (17MM)
23212-HP0-A00
|
$9.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH A (22MM)
23214-HA0-000
|
$19.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COUNTERSHAFT, TRANSMISSION
23221-HP0-A00
|
$173.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, COUNTERSHAFT
23224-HP0-A00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SPLINE
23413-HA7-670
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, SPLINE (25MM)
23414-HA0-000
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT SECOND (43T)
23431-HP0-A00
|
$181.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, MAINSHAFT THIRD (23T)
23441-HP0-A00
|
$139.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR, COUNTERSHAFT THIRD (37T)
23451-HP0-A00
|
$173.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, COUNTERSHAFT FOURTH SPLINE
23453-HN0-A10
|
$29.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH A, SPLINE (25MM)
23454-HA0-000
|
$41.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, MAINSHAFT FOURTH (28T)
23461-HP0-A00
|
$100.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, COUNTERSHAFT FOURTH (33T)
23471-HP0-A00
|
$120.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, MAINSHAFT FIFTH (33T)
23481-HP0-A00
|
$112.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, SPLINE (25X12.5)
23512-MB0-000
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, BEARING SETTING
23521-HP0-A00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, FINAL DRIVE (22T)
23621-HP0-A00
|
$153.94 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, REVERSE IDLE (15T/39T)
23721-HP0-A00
|
$76.96 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT, REVERSE IDLE
23731-HB3-000
|
$28.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, COUNTERSHAFT REVERSE (28T)
23751-HP0-A00
|
$156.31 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, DISTANCE (25MM)
75146-750-000
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20MM)
90401-HP0-A00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPECIAL (17MM)
90403-HN8-000
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPLINE (22MM)
90451-KY1-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (17MM)
90452-GB4-770
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER C, THRUST (25MM)
90459-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
CIRCLIP (22MM)
90601-329-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING, BALL (62/22) (NACHI)
91005-657-008
Superseded by 91002-PL0-018
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, RADIAL BALL (6203U SPL.)
91006-HN2-003
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6204)
96100-62040-00
|
$14.82 | ||
|
Unavailable |
|||
|
#35
BEARING, RADIAL BALL (6305)
96100-63050-00
|
$18.51 | ||
|
Unavailable |
|||
|
#36
GEAR SET, LOW
06234-HP0-306
|
$89.28 | ||
|
Available to order. Add to View Price |
|||
