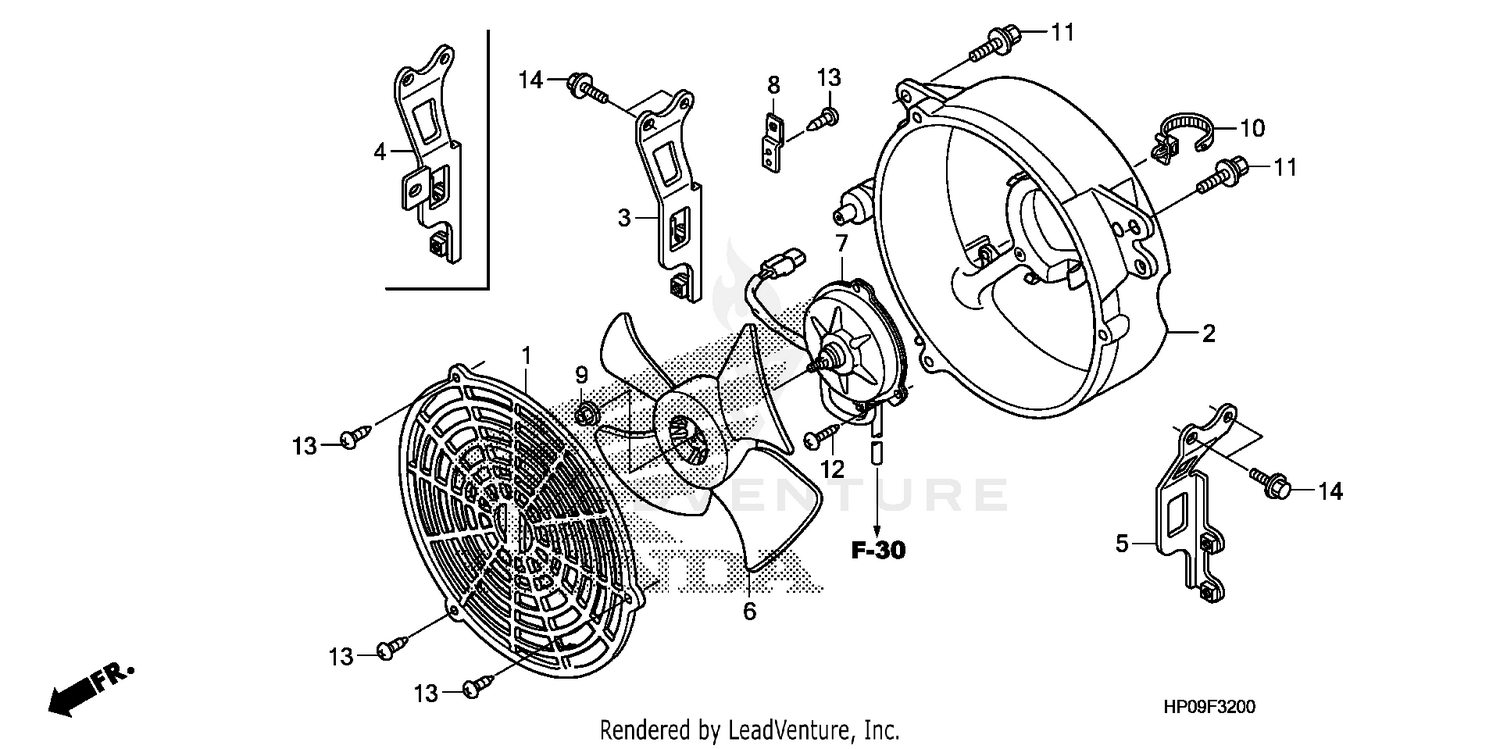

Cooling Fan Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SHROUD
19014-HM7-000
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHROUD, COOLING FAN
19015-HP0-A00
|
$19.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, R. COOLING FAN
19018-HP0-B00
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, L. COOLING FAN
19019-HP0-A50
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
FAN, COOLING
19020-HN7-000
Superseded by 19020-HL3-A01
|
$23.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOTOR ASSY., FAN
19030-HP0-B01
|
$365.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY A, CONNECTOR
50327-HN5-670
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SERRATE (5MM)
90315-MK3-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRAP, CABLE (105MM) (BLACK)
90672-SB2-003
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (6X16)
93404-06016-07
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING (5X16)
93904-25320
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING (4X16) (PO)
93913-24480
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
