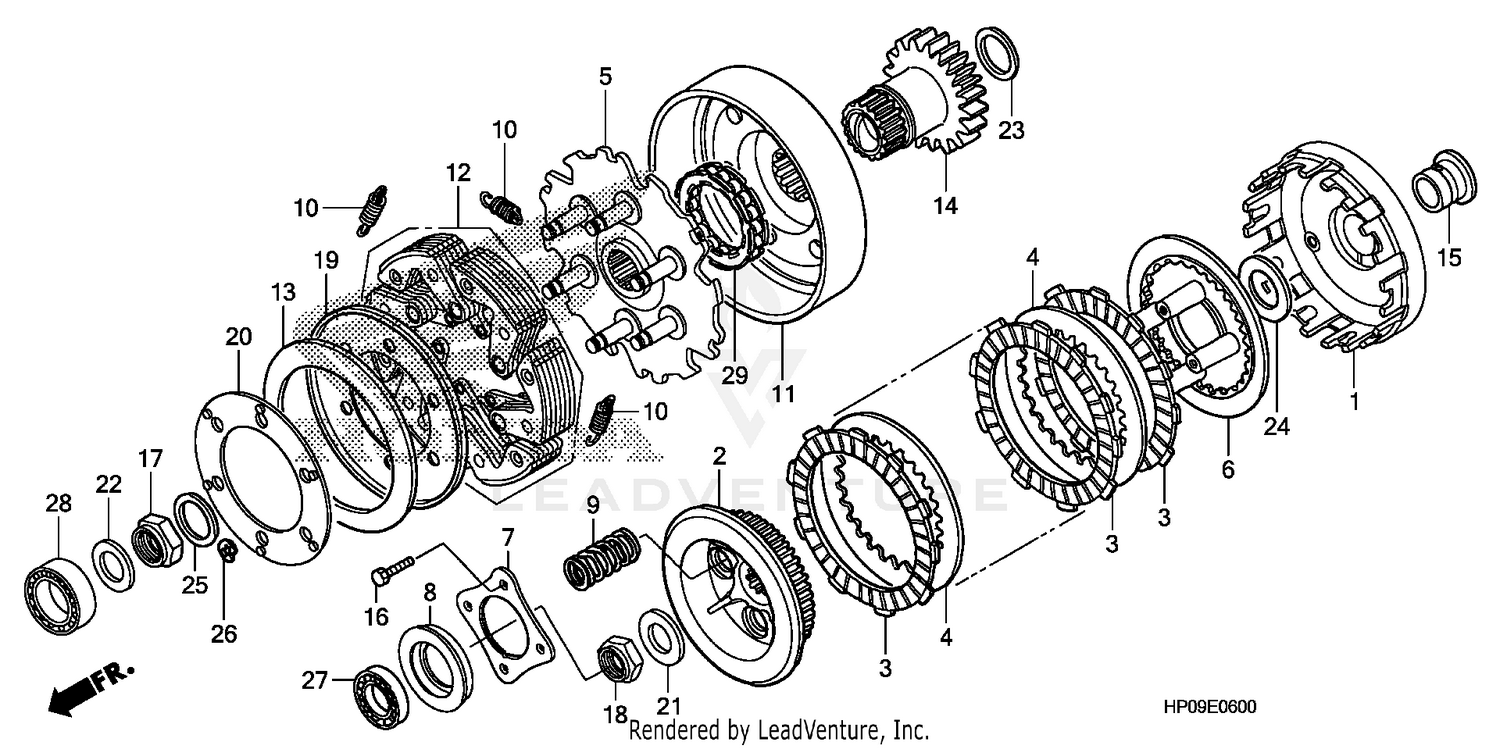

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLUTCH OUTER
22100-HP0-A00
|
$355.51 | ||
|
Available to order. Add to View Price |
|||
|
#2
CENTER, CLUTCH
22121-HP0-A00
|
$99.36 | ||
|
Available to order. Add to View Price |
|||
|
#3
DISK, CLUTCH FRICTION
22201-MCB-610
|
$20.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, CLUTCH
22321-HN0-670
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DRIVE
22350-HP0-A00
|
$85.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH PRESSURE
22351-HP0-A00
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH LIFTER
22366-HN0-670
|
$14.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, CLUTCH LIFTER
22367-HN0-670
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, CLUTCH
22401-HP0-A10
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, CLUTCH
22451-HP0-A00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH OUTER
22500-HP0-A00
|
$59.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT SET, CLUTCH
22535-HP0-305
|
$102.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CONE DISK
22714-HN2-000
|
$22.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, DRIVE (29T)
23120-HP0-A00
|
$147.31 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH (22MM)
23213-HP0-A00
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. (6X25)
90001-HN0-670
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, LOCK (20MM)
90235-HM7-000
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (18MM)
90236-HN5-M00
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (66X124X1.0)
90406-HN2-A00
|
$14.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (66X124X1.0)
90406-HN2-000
Superseded by 90406-HN2-A00
|
$14.67 | ||
|
Unavailable |
|||
|
#20
WASHER (66X107X1.6)
90407-HN2-A00
|
$14.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (66X107X1.6)
90407-HN2-000
Superseded by 90407-HN2-A00
|
$14.44 | ||
|
Unavailable |
|||
|
#21
WASHER, SPECIAL (18MM)
90432-HP0-A00
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, THRUST (17MM)
90452-HP0-A00
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, THRUST (29X40X2)
90457-HN2-000
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (22X45X0.8)
90458-HN0-670
|
$3.44 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20MM)
90459-KB4-670
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP (7MM)
90605-HM8-000
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, BALL (6903) (KOYO)
91008-HC4-004
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (6303SP)
91009-HA0-004
|
$47.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLUTCH, ONE-WAY
91101-HA0-004
|
$140.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
