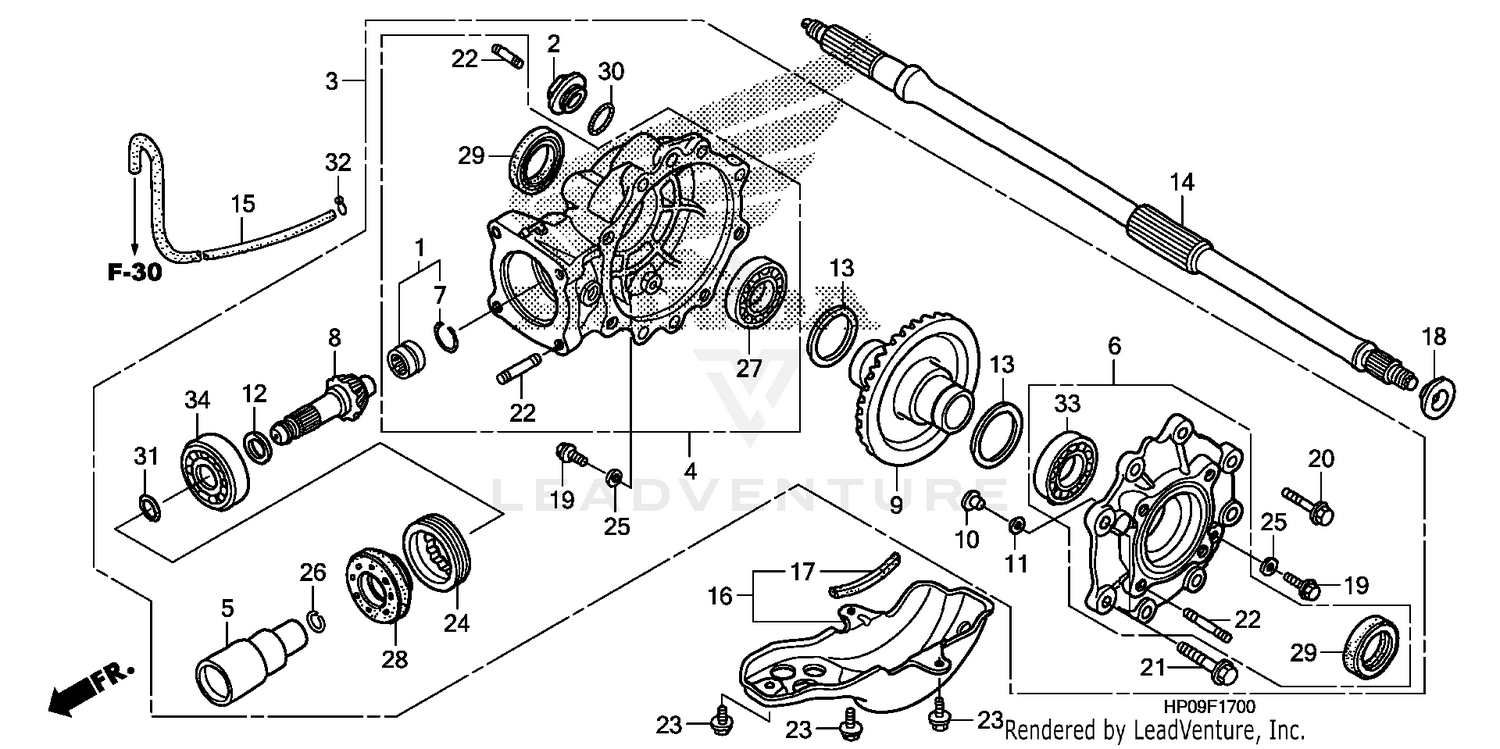

Final Driven Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING SET, NEEDLE
06910-HP0-A00
|
$37.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-035-000
Superseded by 12361-300-000
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, VALVE ADJ.
12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#2
CAP, VALVE ADJ.
12361-371-980
Superseded by 12361-300-000
|
$12.40 | ||
|
Unavailable |
|||
|
#3
GEAR ASSY., RR. FINAL
41300-HP0-B80
|
$648.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE SUB-ASSY., RR. FINAL GEAR
41311-HP0-A00
|
$214.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
JOINT, RR. PINION
41315-HN2-000
|
$70.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER SUB-ASSY., RR. FINAL GEAR
41320-HN2-010
|
$140.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, STOPPER
41405-HA7-670
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, RR. PINION (13T)
41421-HP0-A00
|
$158.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, RR. RING (41T)
41431-HP0-A00
|
$260.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, RING GEAR STOPPER
41436-MB0-310
|
$36.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM A, STOPPER PIN (0.10)
41437-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM B, STOPPER PIN (0.15)
41438-MB0-310
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM A, PINION GEAR (1.64)
41447-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM B, PINION GEAR (1.70)
41448-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM C, PINION GEAR (1.76)
41449-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM D, PINION GEAR (1.82)
41451-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM E, PINION GEAR (1.88)
41452-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM F, PINION GEAR (1.94)
41453-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM G, PINION GEAR (2.00)
41454-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM H, PINION GEAR (2.06)
41455-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM I, PINION GEAR (2.12)
41456-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM J, PINION GEAR (2.18)
41457-HM8-000
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER A, RING GEAR (1.82)
41540-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER B, RING GEAR (1.88)
41541-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER C, RING GEAR (1.94)
41542-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER D, RING GEAR (2.00)
41543-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER E, RING GEAR (2.06)
41544-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER F, RING GEAR (2.12)
41545-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER G, RING GEAR (2.18)
41546-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER H, RING GEAR (2.24)
41547-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER I, RING GEAR (2.30)
41548-HA0-000
|
$14.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHAFT, RR. AXLE
42311-HN2-020
|
$231.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, BREATHER (3.5X1530)
44133-HP0-B00
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, SKID
50355-HN5-670
|
$64.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, STOPPER
50356-HM7-300
|
$14.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER, L. BEARING
52112-HA0-000
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SEALING (8MM)
90109-371-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X27)
90133-HP5-600
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X35)
90134-HP5-600
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, STUD (10X22)
90135-HA7-770
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X12)
90190-MG3-000
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, LOCK (64MM)
90242-MB0-000
|
$39.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP (25MM)
90602-MR1-000
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (35X60X14) (ZHEJIANG)
91062-HP0-A01
Superseded by 91053-HR3-W51
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (39X70X11)
91251-HN2-003
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (35X49X6) (NOK)
91252-HA0-004
|
$16.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING (30.8MM)
91302-001-020
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
O-RING (24X3)
91312-KM9-003
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, TUBE (C6.5)
95002-35000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, RADIAL BALL (6007)
96100-60073-00
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING, RADIAL BALL (6206)
96100-62060-00
|
$17.71 | ||
|
Available to order. Add to View Price |
|||
