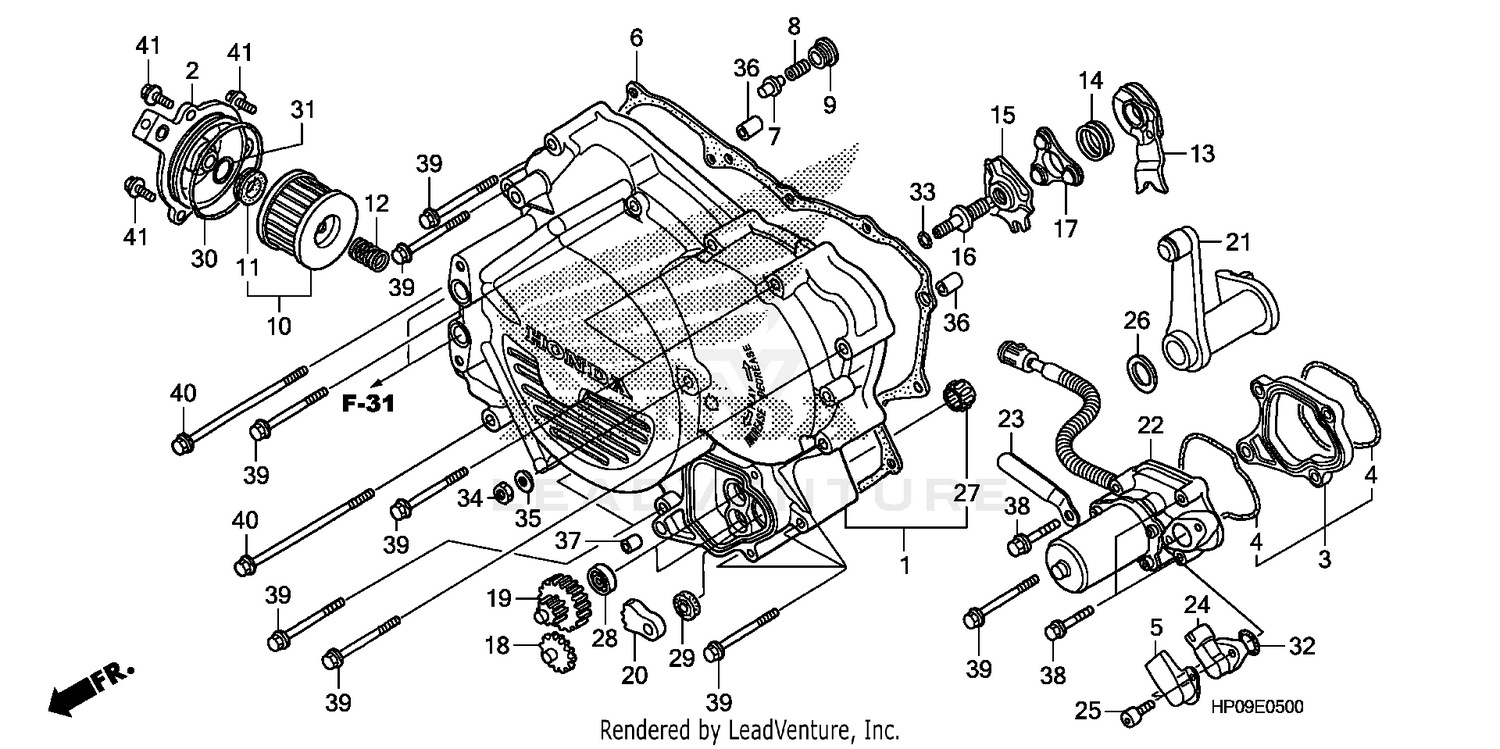

Front Crankcase Cover (trx500fe/fpe) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FR. CRANKCASE
11330-HP0-A10
|
$293.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, OIL FILTER
11333-HP0-A00
|
$52.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, BRACKET
11334-HP0-A10
|
$24.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
11336-HN0-A10
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR, ANGLE SENSOR
11339-HP0-A10
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, FR. CRANKCASE COVER
11394-HP0-A00
|
$33.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE, RELIEF
15231-HP0-A00
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, RELIEF VALVE
15232-HM3-670
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, RELIEF VALVE
15235-HP0-A00
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#10
ELEMENT, OIL FILTER
15412-HM5-A10
|
$7.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
RUBBER, FILTER
15413-MC8-000
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPRING, OIL FILTER ELEMENT SETTING
15414-KF0-000
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH CAM
22820-HP0-A00
|
$41.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CAM PLATE SIDE
22825-HN0-671
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, CLUTCH LIFTER
22830-HP0-A00
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CLUTCH ADJUSTING
22841-HP0-A00
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
RETAINER, BALL
22860-HB3-000
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, REDUCTION (41T/10T)
24615-HN0-771
|
$19.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, REDUCTION (40T/12T)
24616-HN0-771
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, REDUCTION (7/43T)
24617-HN0-771
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, SUB-GEARSHIFT SPINDLE
24670-HP0-A10
|
$39.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
MOTOR ASSY., CONTROL
31300-HP0-A11
|
$322.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, SUB-WIRE
32901-MA1-000
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR ASSY., ANGLE
38800-HP0-A11
Superseded by 38800-HR3-A21
|
$31.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, SOCKET (5X20)
90116-HP5-600
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (10X21.5)
90413-GE0-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, NEEDLE (10X14X10) (TORRINGTON)
91021-HN0-671
|
$15.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (626ZZ)
91060-HN0-A11
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (10X20X5) (ARAI)
91201-KM1-005
Superseded by 91202-HC0-003
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL (10X20X5) (ARAI)
91202-HC0-003
|
$4.45 | ||
|
Unavailable |
|||
|
#30
O-RING (54X2.4) (ARAI)
91302-KF0-003
|
$4.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
O-RING (11X1.9) (NOK)
91303-HA0-004
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
O-RING, ANGLE SENSOR
91308-HN0-A10
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (8.2X1.5)
91308-MC7-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEX. (8MM)
94030-08000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLAIN (8MM)
94102-08800
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
PIN, DOWEL (8X20)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X45)
95701-06045-00
Superseded by 95701-06045-07
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X45)
95701-06045-07
|
$2.27 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X90)
95701-06090-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X18)
96001-06018-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
