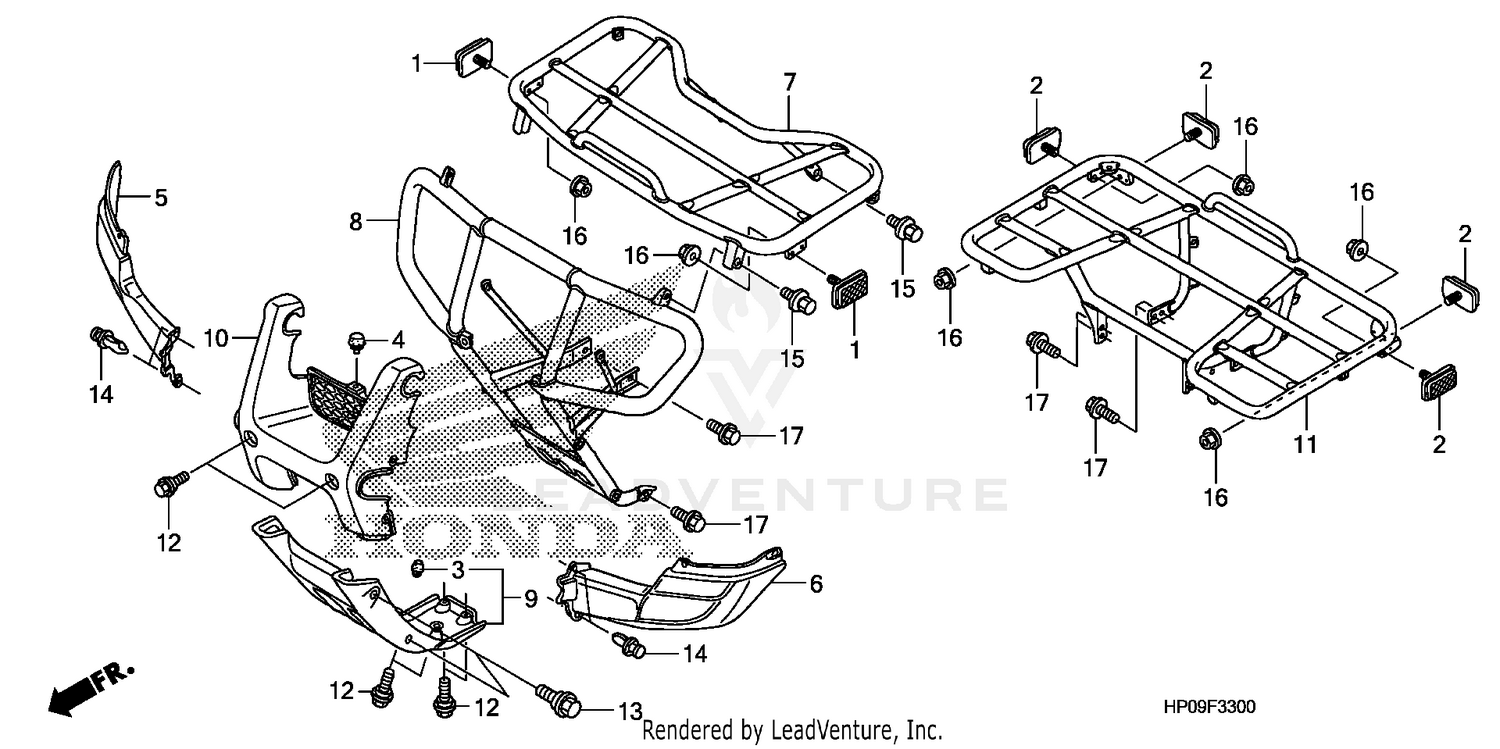

Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#3
RUBBER A, STOPPER
50352-HM5-730
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, STAND STOPPER
50505-GA7-730
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRILLE, R. FR. *NH1* (BLACK)
66300-HP0-A00ZA
|
$28.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRILLE, L. FR. *NH1* (BLACK)
66500-HP0-A00ZA
|
$28.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
CARRIER, FR. LUGGAGE *NH1* (BLACK)
81100-HP0-A00ZA
|
$356.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIPE, FR. CARRY *NH1* (BLACK)
81150-HP0-A50ZB
|
$386.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE ASSY., FR. SKID *NH1* (BLACK)
81160-HP0-A50ZB
|
$177.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, FR. PIPE *NH1* (BLACK)
81170-HN2-B70ZA
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARRIER, RR. LUGGAGE *NH1* (BLACK)
81300-HP0-A00ZA
|
$1,727.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X18)
90186-GBC-000
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT-WASHER (8X16)
93401-08016-07
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
